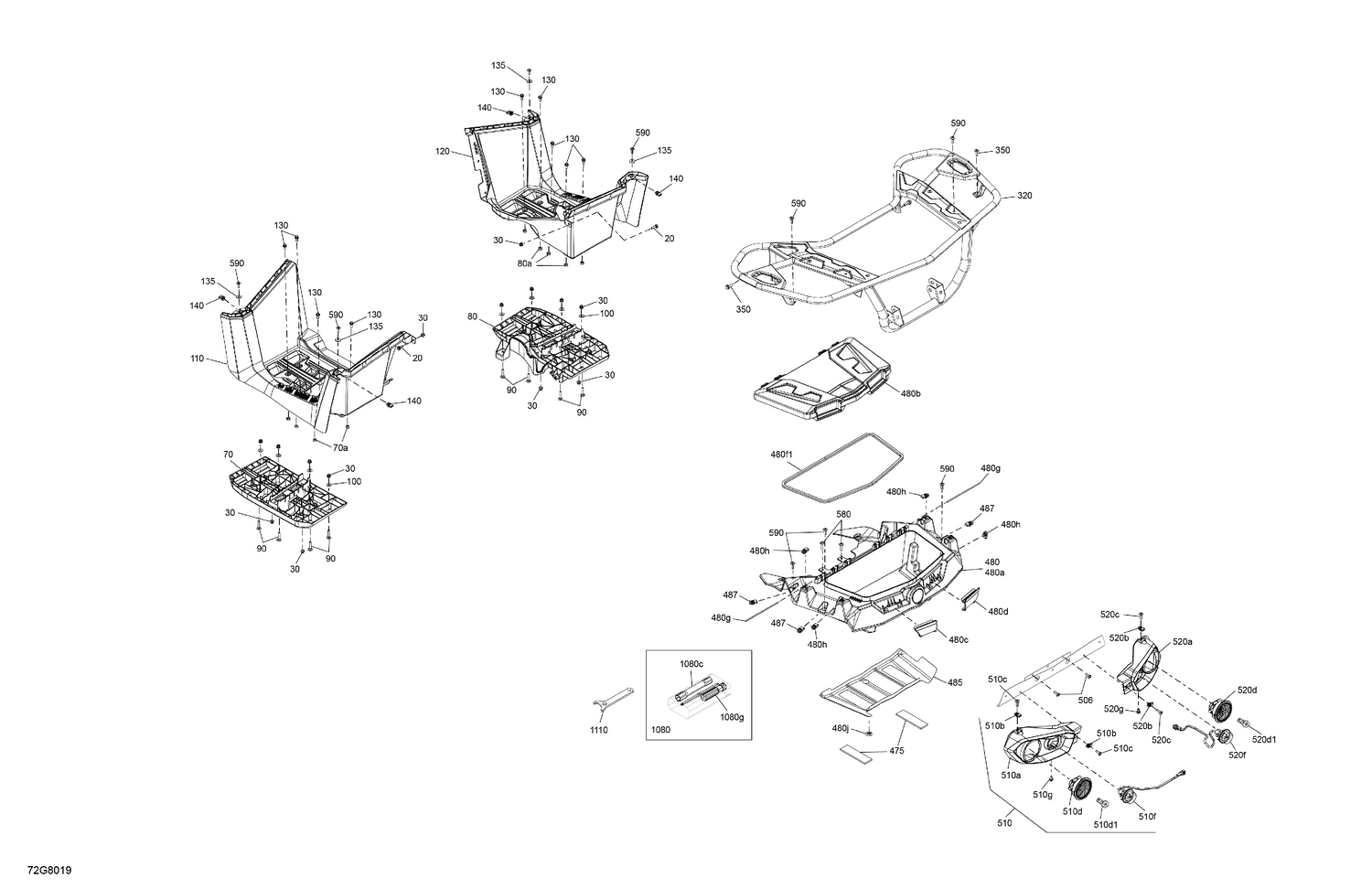

07- Body - Rear Section
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 70a | 232862412 | Square Nut M6 |
| 80a | 232862412 | Square Nut M6 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705007040 | LH Step |
| 120 | 705007723 | RH Footrest |
| 130 | 207661654 | Hex. Flange Screw M6 X 16 |
| 135 | 224061201 | Flat Washer |
| 140 | 250100198 | Panel Nut M6 X 1.0 |
| 320 | 715005988 | Rear Luggage Rack Ass'y |
| 350 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 475 | 293830163 | Rubber Pad |
| 480a | 715004412 | Storage Cover |
| 480b | 715004412 | Storage Cover |
| 480c | 705007448 | LH Box Rear Latch |
| 480d | 705007921 | RH Box Rear Latch |
| 480f1 | 219704452 | Was 715900411 Neoprene Seal |
| 480g | 705007531 | Retaining Rod |
| 480h | 250100198 | Panel Nut M6 X 1.0 |
| 480j | 414859400 | CAP - Call your local BRP dealership |
| 485 | 705007487 | Heat Deflector Sheet |
| 487 | 250100198 | Panel Nut M6 X 1.0 |
| 506 | 250000722 | Torx Screw M6 X 20 |
| 510a | 705010329 | REAR LIGHT SUPPORT LH - Call your local BRP dealership |
| 510b | 250100198 | Panel Nut M6 X 1.0 |
| 510c | 250000722 | Torx Screw M6 X 20 |
| 510d1 | 520000758 | Bulb |
| 510f | 710002964 | Flasher |
| 510g | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 520a | 705010330 | REAR LIGHT SUPPORT RH - Call your local BRP dealership |
| 520b | 250100198 | Panel Nut M6 X 1.0 |
| 520c | 250000722 | Torx Screw M6 X 20 |
| 520d1 | 520000758 | Bulb |
| 520f | 710002964 | Flasher |
| 520g | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 580 | 250000807 | Torx Truss Screw M6 X 25 |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 1080c | 529000085 | Socket Wrench 14/16MM |
| 1080g | 529000021 | Screw Driver |
