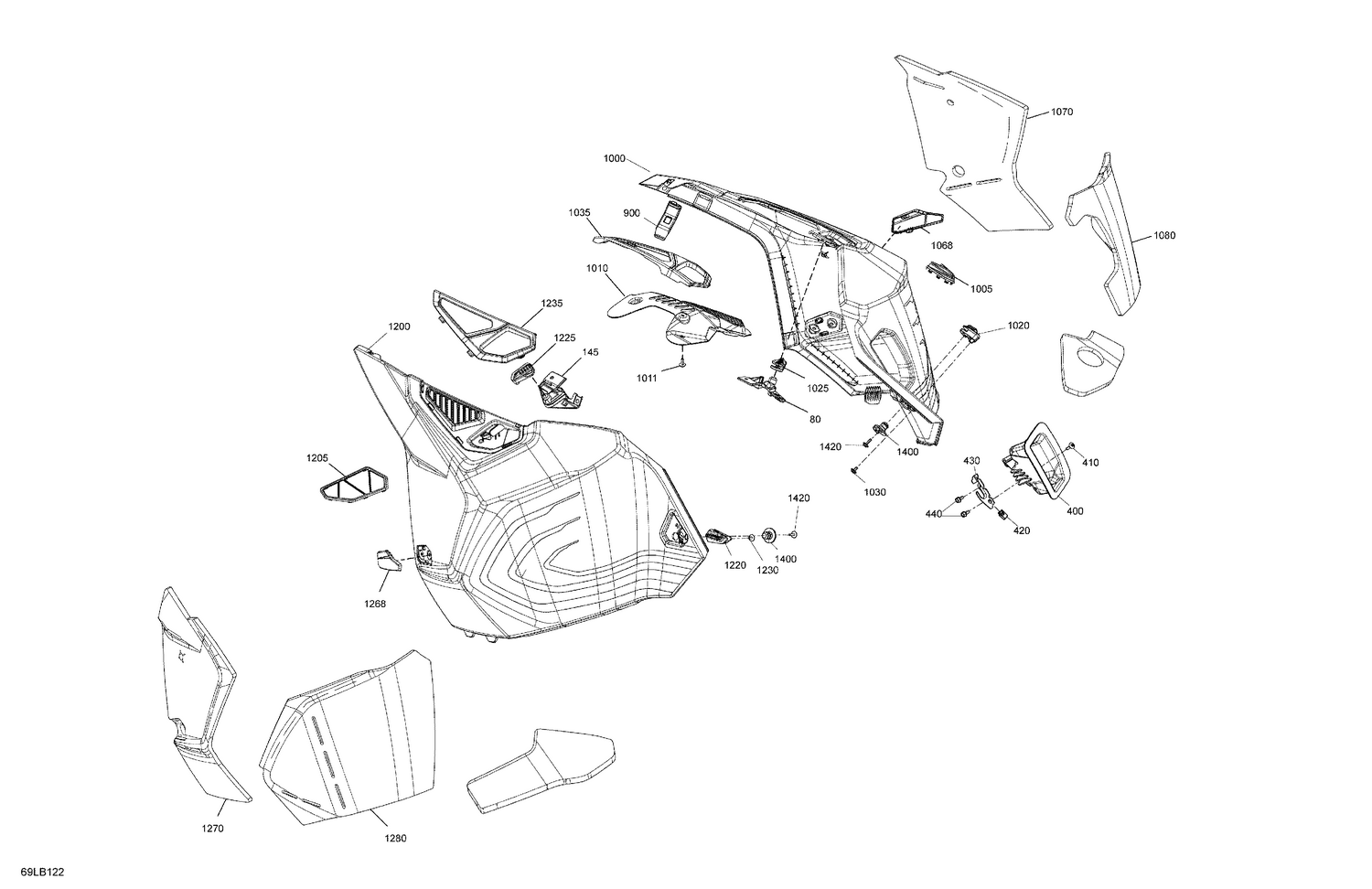

07- Body - Side Panels
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 517306450 | RH Knob Part |
| 145 | 517306451 | LH Knob Part |
| 400 | 517306759 | RH Console |
| 410 | 250000586 | Torx Truss M5 X 20 |
| 420 | 250000958 | Panel Nut M5 X 0.8 |
| 430 | 517306315 | Rope Guide |
| 440 | 210261250 | Hex. Flanged Screw M6 X 12 |
| 900 | 517306811 | Rubber Latch |
| 1000 | 517307447 | RH Side Panel |
| 1005 | 517307574 | RH Air Intake Grid |
| 1010 | 517306991 | Grill |
| 1011 | 250000725 | Screw M4 X 16 |
| 1020 | 517306320 | RH Rear Latch |
| 1025 | 517305773 | RH Rear Latch |
| 1030 | 250000805 | Plastite Screw M4 X 10 |
| 1035 | 517306482 | RH Trim |
| 1068 | 517306489 | RH Side Panel Cap |
| 1070 | None | Not available for this vehicle |
| 1080 | None | Not available for this vehicle |
| 1200 | 517307448 | Black, LH Side Panel |
| 1205 | 517307573 | LH Rear Latch |
| 1220 | 517306325 | LH Rear Latch |
| 1225 | 517305774 | LH Rear Latch |
| 1230 | 250000805 | Plastite Screw M4 X 10 |
| 1235 | 517306481 | LH Trim |
| 1268 | 517306488 | LH Side Panel Cap |
| 1270 | None | Not available for this vehicle |
| 1280 | None | Not available for this vehicle |
| 1400 | 517305985 | Rear Stud |
