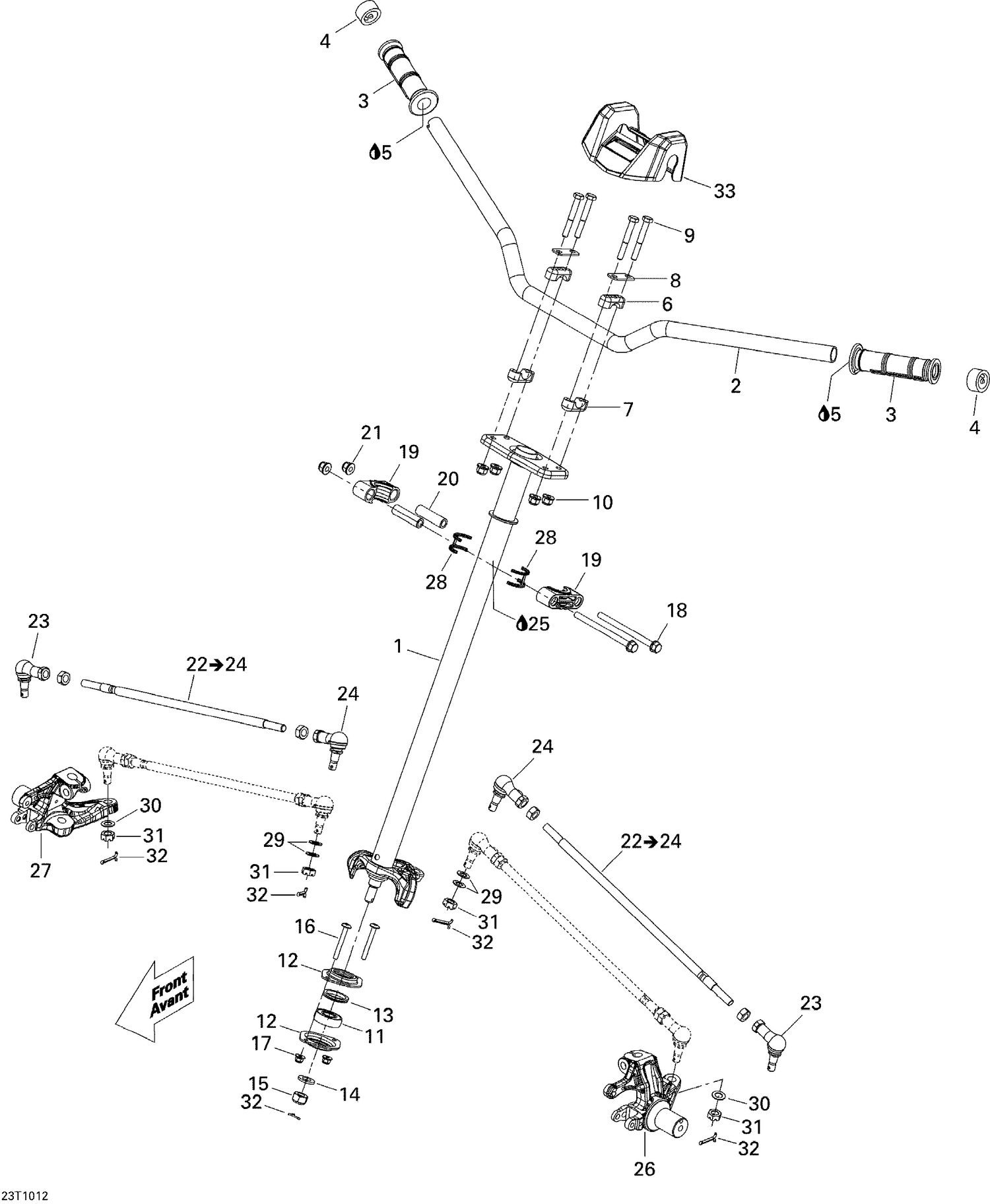

07- Steering
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709400802 | STEERING COLUMN - Call your local BRP dealership |
| 2 | 709400369 | HANDLE BAR - Call your local BRP dealership |
| 3 | 709400493 | Handle Grip |
| 4 | 709400627 | END PIECE - Call your local BRP dealership |
| 5 | 293800100 | Loctite 406, 7 Oz |
| 6 | 709400919 | Steering Support This part replaces 506151622. |
| 7 | 709400919 | Steering Support This part replaces 506151622. |
| 8 | 709400509 | Stiffner |
| 9 | 207086034 | SCREW-HEX.CAP DIN.931 - Call your local BRP dealership |
| 10 | 233281434 | Hex. Flange Elastic Nut M8 |
| 11 | 709400439 | Ball Bearing |
| 12 | 709400468 | THRUST WASHER - Call your local BRP dealership |
| 13 | 293250177 | Seal |
| 14 | 234021430 | Flat Washer |
| 15 | 250100090 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 16 | 250000317 | Torx Screw M6 X 50 |
| 17 | 233261434 | Flange Elastic Nut M6 |
| 18 | 230681034 | Hex. Flange Screw M8 X 110 |
| 19 | 709400471 | Half Bushing |
| 20 | 709400072 | BUSHING - Call your local BRP dealership |
| 21 | 233281434 | Hex. Flange Elastic Nut M8 |
| 23 | 715900053 | BALL JOINT - Call your local BRP dealership |
| 24 | 715900052 | BALL JOINT - Call your local BRP dealership |
| 25 | 293550010 | Synthetic Grease, 400 G |
| 26 | 709400346 | LH KNUCKLE - Call your local BRP dealership |
| 27 | 709400348 | RH KNUCKLE - Call your local BRP dealership |
| 28 | 293300120 | HALF-SEAL - Call your local BRP dealership |
| 29 | 250200084 | Flat Washer |
| 30 | 250200084 | Flat Washer |
| 31 | 250100094 | CASTLE NUT - Call your local BRP dealership |
| 32 | 250400034 | Cotter Pin |
