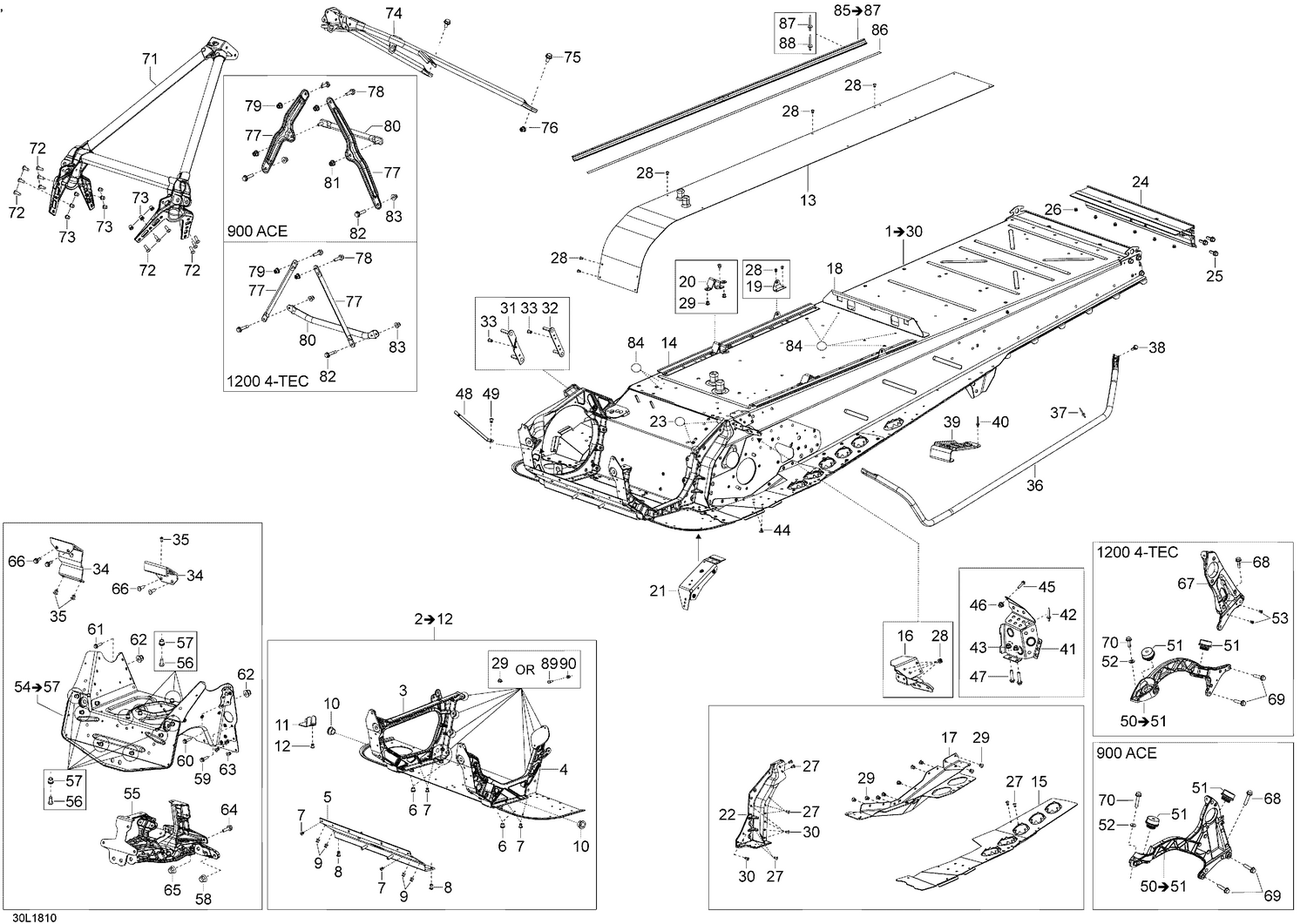

09- Frame Expedition - 1200 4-TEC
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 518326328 | RH Side Member |
| 4 | 518326330 | LH Side Member |
| 5 | 518326198 | Front Member |
| 6 | 605636002 | Clinch Nut Hexsert M8 |
| 7 | 390909100 | Avex Rivet |
| 8 | 293150120 | Hemlock Rivet 6.5 mm |
| 9 | 293150119 | Hemlock Rivet, 6.5 mm |
| 10 | 505072690 | Leg Bushing |
| 11 | 518327448 | Muffler Support |
| 12 | 293150163 | Rivet Hucklok |
| 14 | 518326107 | Fastening rail |
| 15 | 518328821 | LH Footrest |
| 15 | 518328822 | RH Footrest |
| 16 | 605355235 | FASTENING BRACKET - Call your local BRP dealership |
| 17 | 518328016 | LH Drive Axle Cover |
| 17 | 518328017 | RH Drive Axle Cover |
| 18 | 518325986 | BATTERY SUPPORT PLATE - Call your local BRP dealership |
| 19 | 518329164 | Seat Box Bracket |
| 20 | 518329109 | LH Support Tube Bracket |
| 20 | 518329110 | RH Support Tube Bracket |
| 21 | 518326430 | Clinch Nut plate |
| 22 | 518325524 | LH Frame Corner |
| 22 | 518328024 | RH Frame Corner |
| 23 | 518325560 | Adhesive Patch |
| 24 | 518328748 | Rear Profile |
| 25 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 28 | 390909200 | Avex Rivet |
| 29 | 293150119 | Hemlock Rivet, 6.5 mm |
| 30 | 293150183 | Rivet |
| 31 | 518326123 | GEARBOX FRONT PLATE - Call your local BRP dealership |
| 33 | 390402200 | Pop Rivet 3/16" |
| 34 | 518325371 | MAG Engine Support |
| 35 | 293150119 | Hemlock Rivet, 6.5 mm |
| 36 | 518326963 | LH Footboard Support Tube |
| 36 | 518326964 | RH Footboard Support Tube |
| 37 | 390909100 | Avex Rivet |
| 39 | 520001208 | Black Rear Footrest |
| 40 | 293150102 | Rivet 3/16" |
| 41 | 518327376 | Black RH Toe Hook |
| 42 | 390909200 | Avex Rivet |
| 43 | 605636003 | Clinch Nut M6 Hexsert |
| 45 | 207662056 | Hex. Flange Screw M6 x 20 |
| 46 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 47 | 250000717 | Torx Head Screw M6 X 16 |
| 48 | 514054846 | Spring Bracket |
| 49 | 390909200 | Avex Rivet |
| 51 | 512061516 | Vibration Damper This part replaces 512060295. |
| 53 | 36087 | Rivet |
| 55 | 518327487 | Front Suspension Support |
| 56 | 207161444 | Hex. Screw M6 X 14 |
| 59 | 210262050 | Hexagonal Head Screw |
| 60 | 207662544 | Hex. Flange Screw M6 X 25 |
| 61 | 207662544 | Hex. Flange Screw M6 X 25 |
| 62 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 63 | 293150163 | Rivet Hucklok |
| 66 | 207661644 | Hex. Flange Screw M6 X 16 |
| 67 | 518328434 | Pulley Support |
| 68 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 70 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 71 | 518326970 | Front Member |
| 74 | 518329105 | Upper Support Tube |
| 75 | 207182044 | Hex. Screw M8 X 20 |
| 76 | 232581414 | Hex. Elastic Stop Nut M8 |
| 77 | 518325114 | Upper Lateral Column Support |
| 78 | 207662056 | Hex. Flange Screw M6 x 20 |
| 79 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 80 | 518326657 | Center Column Support |
| 82 | 207662556 | Hex. Flange Screw M6 X 25 |
| 83 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
