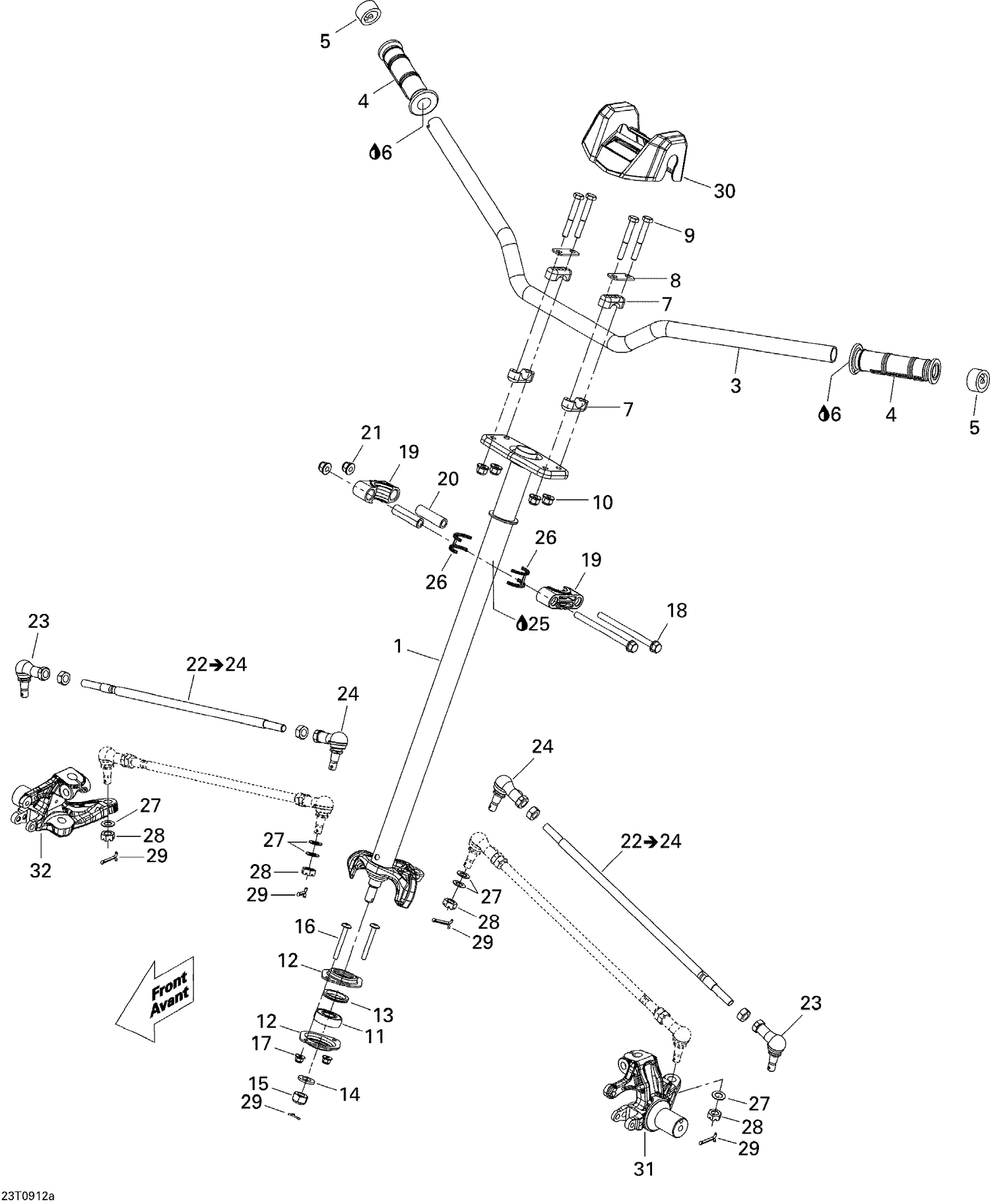

| Ref | Part Number | Description |
|---|
| 1 |
709400802 |
STEERING COLUMN - Call your local BRP dealership This part replaces 709400351. |
| 3 |
709400369 |
HANDLE BAR - Call your local BRP dealership |
| 4 |
709400493 |
Handle Grip |
| 5 |
709400627 |
END PIECE - Call your local BRP dealership |
| 6 |
293800100 |
Loctite 406, 7 Oz |
| 7 |
709400919 |
Steering Support This part replaces 506151622. |
| 8 |
709400509 |
Stiffner |
| 9 |
207086034 |
SCREW-HEX.CAP DIN.931 - Call your local BRP dealership |
| 10 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 11 |
709400439 |
Ball Bearing |
| 12 |
709400468 |
THRUST WASHER - Call your local BRP dealership |
| 13 |
293250177 |
Seal |
| 14 |
234021430 |
Flat Washer |
| 15 |
250100090 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 16 |
250000317 |
Torx Screw M6 X 50 |
| 17 |
233261434 |
Flange Elastic Nut M6 |
| 18 |
230681034 |
Hex. Flange Screw M8 X 110 |
| 19 |
709400471 |
Half Bushing |
| 20 |
709400072 |
BUSHING - Call your local BRP dealership |
| 21 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 23 |
715900053 |
BALL JOINT - Call your local BRP dealership |
| 24 |
715900052 |
BALL JOINT - Call your local BRP dealership |
| 25 |
293550010 |
Synthetic Grease, 400 G |
| 26 |
293300120 |
HALF-SEAL - Call your local BRP dealership |
| 27 |
250200084 |
Flat Washer |
| 28 |
250100094 |
CASTLE NUT - Call your local BRP dealership |
| 29 |
250400034 |
Cotter Pin |
| 30 |
709400452 |
STEERING COVER - Call your local BRP dealership |
| 31 |
709400346 |
LH KNUCKLE - Call your local BRP dealership |
