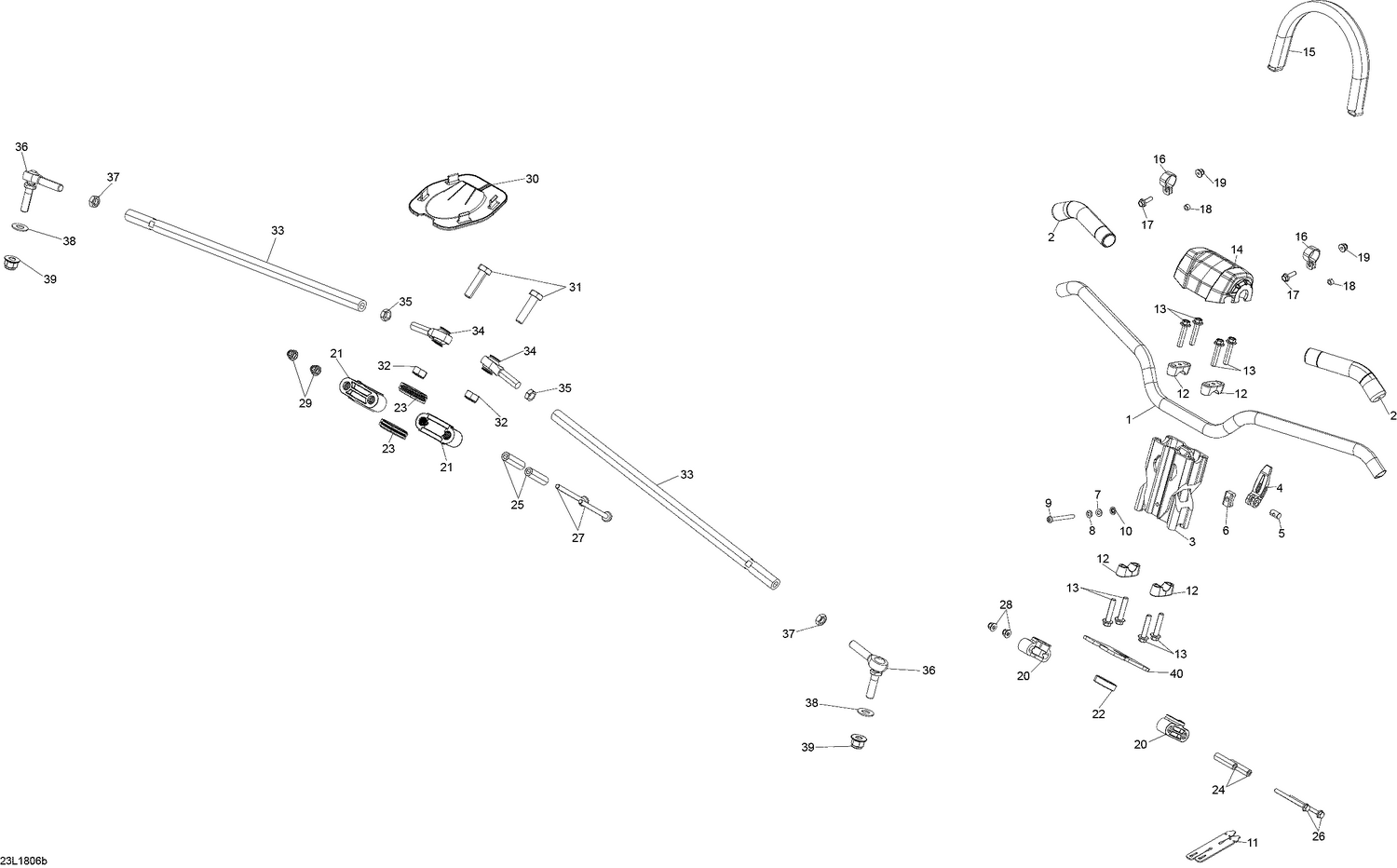

07- Steering 69 Ranger STD
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152762 | Black Handle Bar |
| 4 | 506152646 | LEVER - Call your local BRP dealership |
| 5 | 506152647 | Lever Pin |
| 6 | 506153045 | Compression Bloc |
| 7 | 234061600 | Flat Washer M6, Stainless |
| 8 | 234161601 | Lock Washer Helical M6 |
| 9 | 205566060 | Socket Head Screw |
| 10 | 732610072 | Push Nut |
| 11 | 293850118 | Rubber Strap Double 80/90 |
| 12 | 506152751 | Steering Support |
| 13 | 250000285 | Hex. Flanged Screw M8 x 40 |
| 14 | 506152807 | Steering Pad |
| 15 | 506152460 | Steering strap |
| 17 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 20 | 506152508 | Upper Half-Housing |
| 21 | 506152217 | Lower Half Housing |
| 22 | 506152509 | Upper Anti-Vibration Gasket |
| 23 | 506152518 | Lower Vibration Ring |
| 24 | 506152297 | Housing Bushing |
| 25 | 506152297 | Housing Bushing |
| 26 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 27 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 28 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 29 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 30 | 506152163 | Plate (Optional) |
| 31 | 207004044 | Hex. Cap Screw M10 x 40 |
| 33 | 506152498 | Tie Rod 38-40 |
| 34 | 506152081 | Ball Joint (LH Thread) |
| 35 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 36 | 506152684 | RH Thread Ball Joint |
| 37 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 38 | 506152582 | Washer |
| 39 | 233201464 | Hex. Elast. Flanged Nut M10 x 1.5 |
| 40 | 506152404 | Cushion |
| 41 | 506152943 | RH Support |
