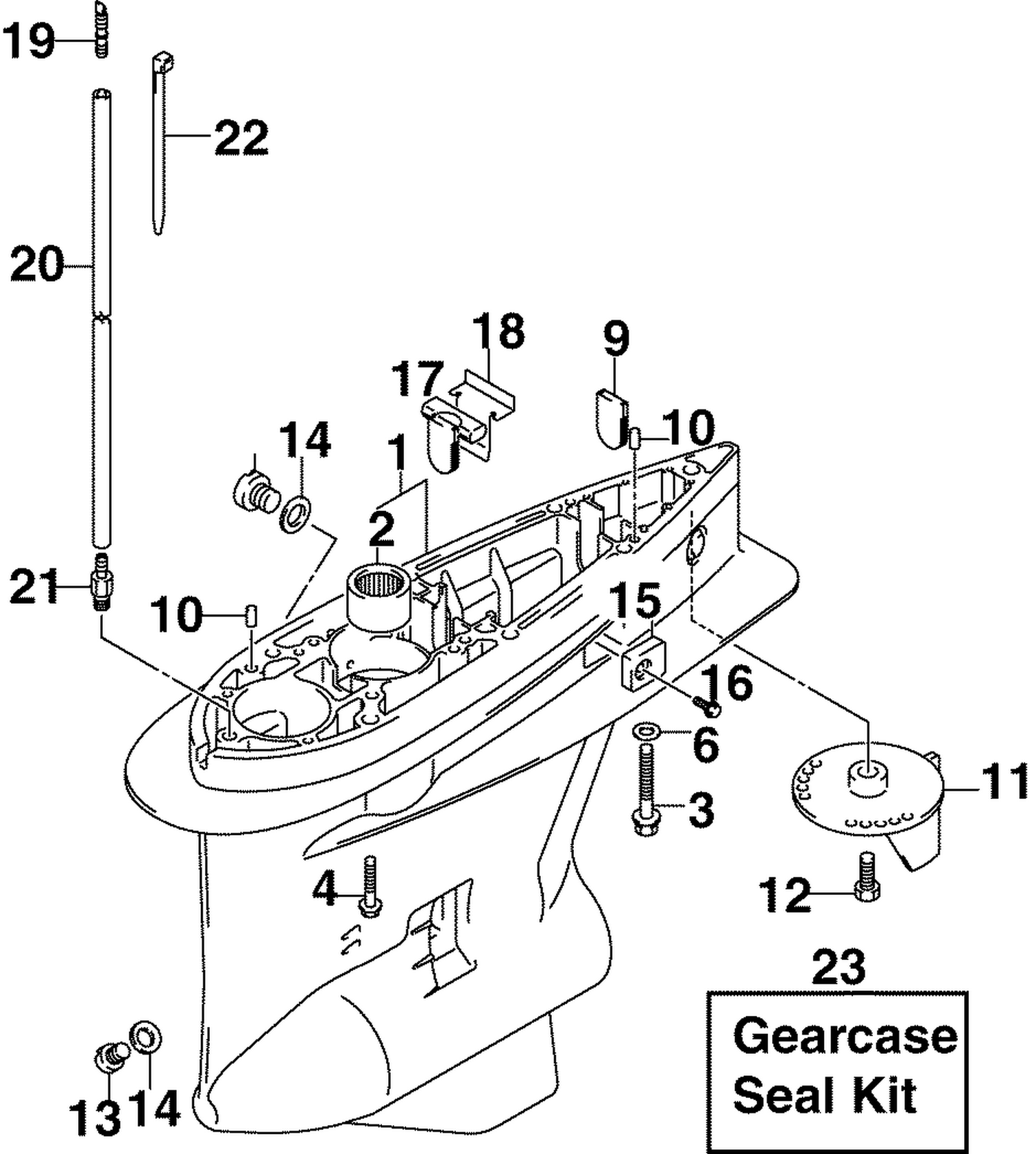

GEARCASE - STANDARD ROTATION
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036318 | CASE, GEAR This part replaces 5035149. |
| 3 | 5035663 | BOLT |
| 4 | 5034788 | BOLT |
| 9 | 5037036 | GROMMET This part replaces 5035405. |
| 10 | 5030511 | PIN |
| 11 | 5035150 | TAB, TRIM |
| 12 | 5034400 | BOULON |
| 13 | 5035151 | PLUG, DRAIN |
| 14 | 5034799 | GASKET, DRAIN PLUG |
| 15 | 5035786 | ZINC SET, PROTECTION This part replaces 5030265. |
| 17 | 5037215 | RUBBER, EXHAUST SEAL This part replaces 5032544. |
| 18 | 5032545 | PLATE, EXHAUST SEAL |
| 19 | 5030906 | UNION, SPEEDOMETER HOSE |
| 21 | 5030568 | FITTING |
