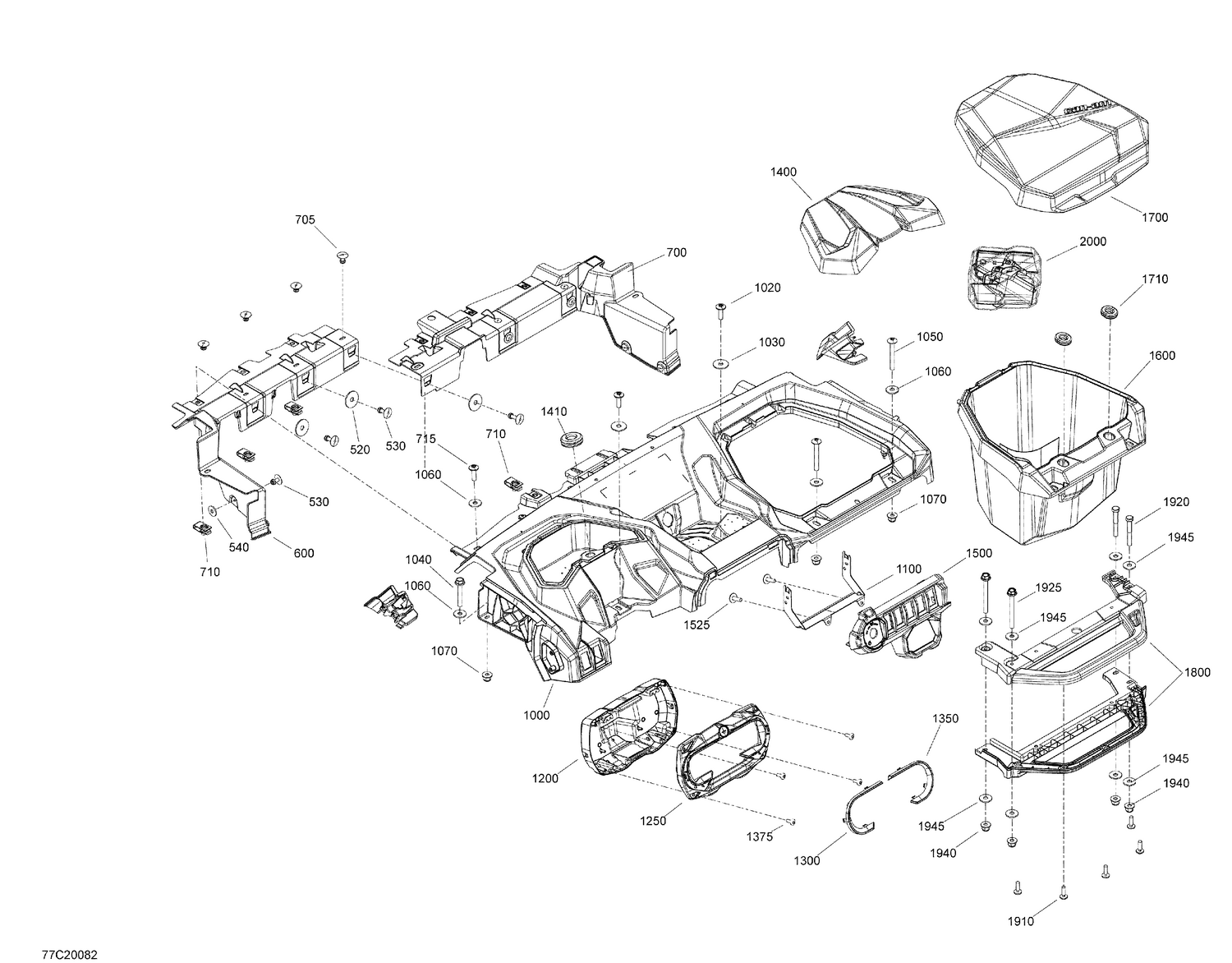

09- Cab Interior - Dashboard
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 520 | 250200044 | Flat Washer M6 X 25 |
| 530 | 293150100 | Pop Rivet 3/16" |
| 540 | 250200025 | Washer M5 |
| 600 | 707900513 | LH Upper Front Bulkhead |
| 700 | 707900514 | RH Upper Front Bulkhead |
| 705 | 293150100 | Pop Rivet 3/16" |
| 710 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 715 | 250000722 | Torx Screw M6 X 20 |
| 1000 | 715006791 | DashBoard Ass'y |
| 1020 | 250000722 | Torx Screw M6 X 20 |
| 1030 | 250200162 | Flat Washer M6.6 X 22 |
| 1040 | 207664044 | Hex. Flange Screw M6 X 40 |
| 1050 | 250000868 | Torx Truss M6 X 50 |
| 1060 | 234062670 | Stainless Steel Flat Washer |
| 1070 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1100 | 707900941 | Dash Support This part replaces 707900519. |
| 1200 | 709402141 | Rear Gauge Trim |
| 1250 | 709402142 | Front Gauge Trim |
| 1300 | 705012349 | Deep Black, LH Trim Gauge |
| 1350 | 705012351 | Deep Black, RH Trim Gauge |
| 1375 | 250000577 | Torx Truss Screw K40 X 12 |
| 1400 | 707901114 | Storage Cover This part replaces 707900522. |
| 1410 | 517303756 | Grommet |
| 1500 | 707900546 | Switch Support |
| 1525 | 250000959 | Screw PT Type K-50 X 16 |
| 1600 | 715005011 | Glove Box |
| 1700 | 707900526 | Glove Box Cover |
| 1710 | 707900663 | Oblong Grommet |
| 1800 | 707900559 | Passenger Handle Bar Kit |
| 1910 | 250000720 | Torx Screw K50 X 16 |
| 1920 | 207064544 | Hex. Screw M6 X 45 |
| 1925 | 250000778 | Hex. Flange Screw M6 X 60 |
| 1940 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1945 | 234062670 | Stainless Steel Flat Washer |
