Home / BRP / EVINRUDE / 1999 / 55 / E55WRYEES 1999 / 10- Electrical Accessories 2

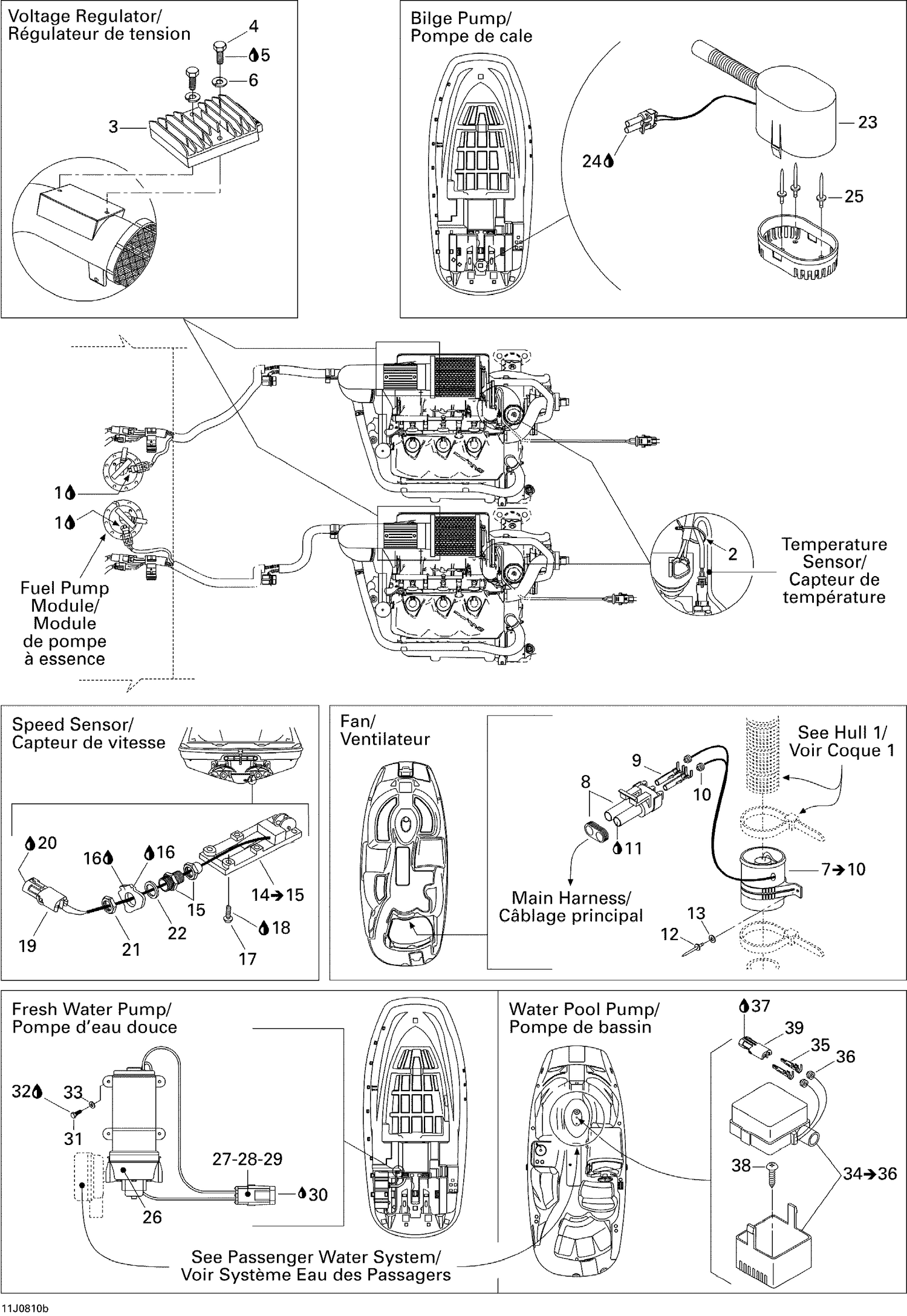

10- Electrical Accessories 2

10- Electrical Accessories 2

Parts (35)

RefPart NumberDescription
1 219704453 Was 293550004 Dielectric Grease, 150 g
2 293750002 Tie Wrap 142 mm
3 710001103 Voltage Regulator
4 204100226 HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership
5 293800060 Loctite 243, 10 ml
6 211200025 Lock Washer 1/4”
8 278000220 Male Connector, 2 Circuits
9 278000223 Female Terminal
10 278000218 Wire Seal
11 219704453 Was 293550004 Dielectric Grease, 150 g
12 293150008 Pop Rivet 3/16" This part replaces 293150011.
13 234052600 Flat Washer 5 mm, Stainless
15 293710031 ELECTRIC CONNECTION - Call your local BRP dealership
16 296000309 Silicone Sealant 51388, 300 ml
17 208551060 PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
18 293800060 Loctite 243, 10 ml
19 278000281 Female Terminal Housing, 3 Circuits
20 219704453 Was 293550004 Dielectric Grease, 150 g
21 293710032 LOCKING NUT - Call your local BRP dealership
22 278000416 SEAL WASHER - Call your local BRP dealership
23 204471431 Bilge Pump
24 219704453 Was 293550004 Dielectric Grease, 150 g
25 293150029 RIVET_POP 5/32 - Call your local BRP dealership
26 204470524 FRESH WATER PUMP R4305-144K - Call your local BRP dealership
27 278000217 Female Housing, 2 Circuits
28 278000222 Male Terminal
29 278000218 Wire Seal
30 219704453 Was 293550004 Dielectric Grease, 150 g
31 207152060 Hex. Screw M5 X 20
32 293800060 Loctite 243, 10 ml
33 234051600 Flat Washer M5, Stainless
35 278000222 Male Terminal
36 278000218 Wire Seal
37 219704453 Was 293550004 Dielectric Grease, 150 g
38 209642560 PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
