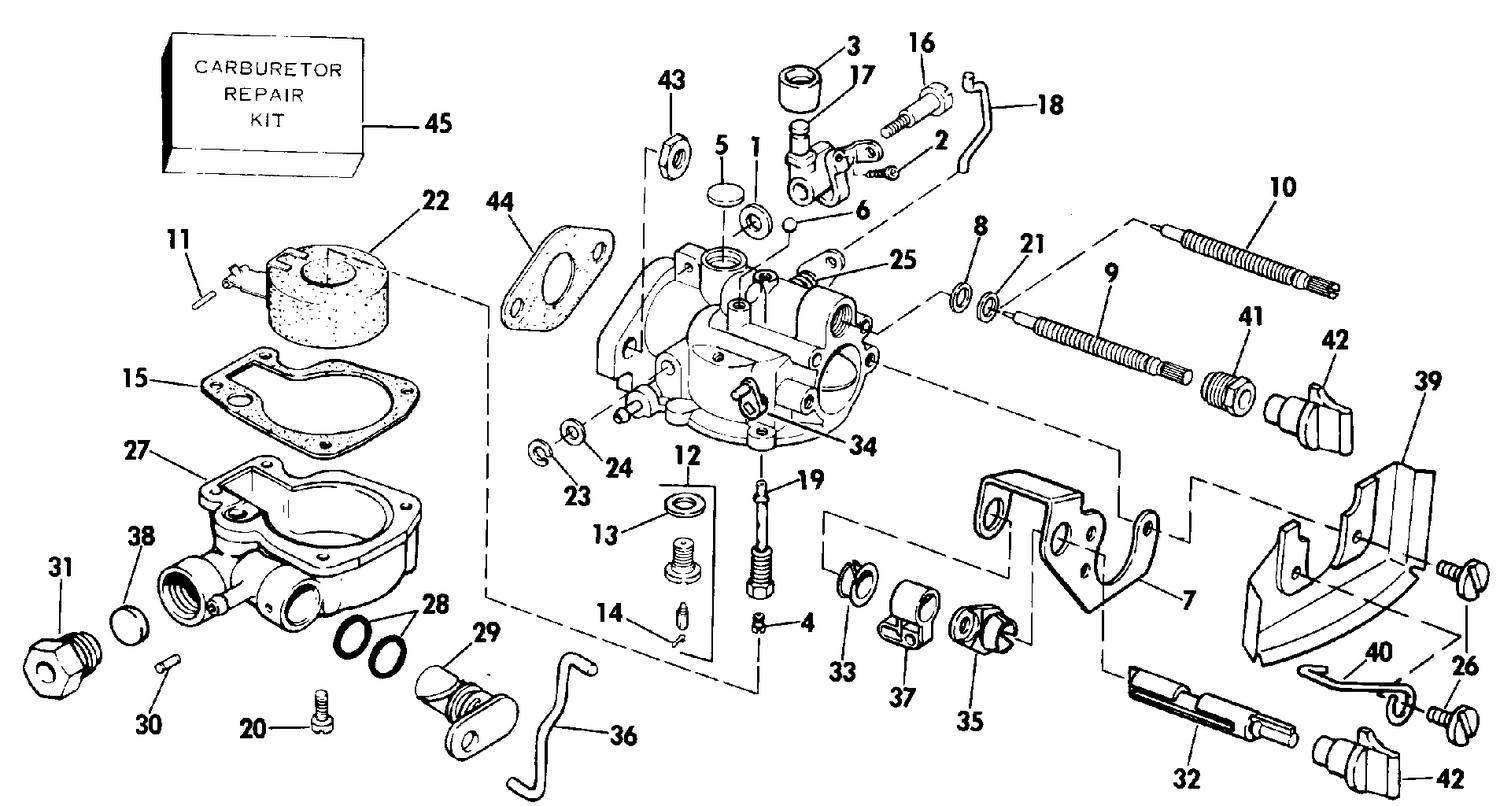

| Ref | Part Number | Description |
|---|
| 7 |
0326223 |
SUPPORT, Choke knob & shaft |
| 9 |
0431634 |
NEEDLE VALVE ASSY., Slow speed adjustment This part replaces 0332119. |
| 10 |
0387701 |
NEEDLE VALVE ASSY.,Slow speed |
| 14 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 15 |
0338878 |
GASKET This part replaces 0331499. |
| 18 |
0330286 |
LINK, Cam follower |
| 19 |
0323410 |
NOZZLE, High speed |
| 20 |
0319008 |
GROMMET, Cable, lower motor cover |
| 23 |
0203949 |
E RING LINK This part replaces 0202755. |
| 26 |
0327793 |
SCREW |
| 27 |
0330881 |
FLOAT CHAMBER |
| 31 |
0326228 |
PLUG, Float chamber |
| 32 |
0326224 |
SHAFT, Choke & fuel shut off |
| 33 |
0318194 |
BUSHING |
| 35 |
0326225 |
LEVER, Choke knob |
| 37 |
0326229 |
LINK, Choke lever |
| 38 |
0326230 |
WASHER, Plug |
| 39 |
0327050 |
SPLASH GUARD |
| 40 |
0327837 |
LINK, Choke shaft |
| 42 |
0328569 |
KNOB, Choke & low speed |
| 43 |
0328742 |
NUT This part replaces 0306338. |
| 44 |
0323452 |
GASKET |
| 0397422 |
0397422 |
CARBURETOR ASSY. |
| 0397429 |
0397429 |
CARBURETOR ASSY. |
