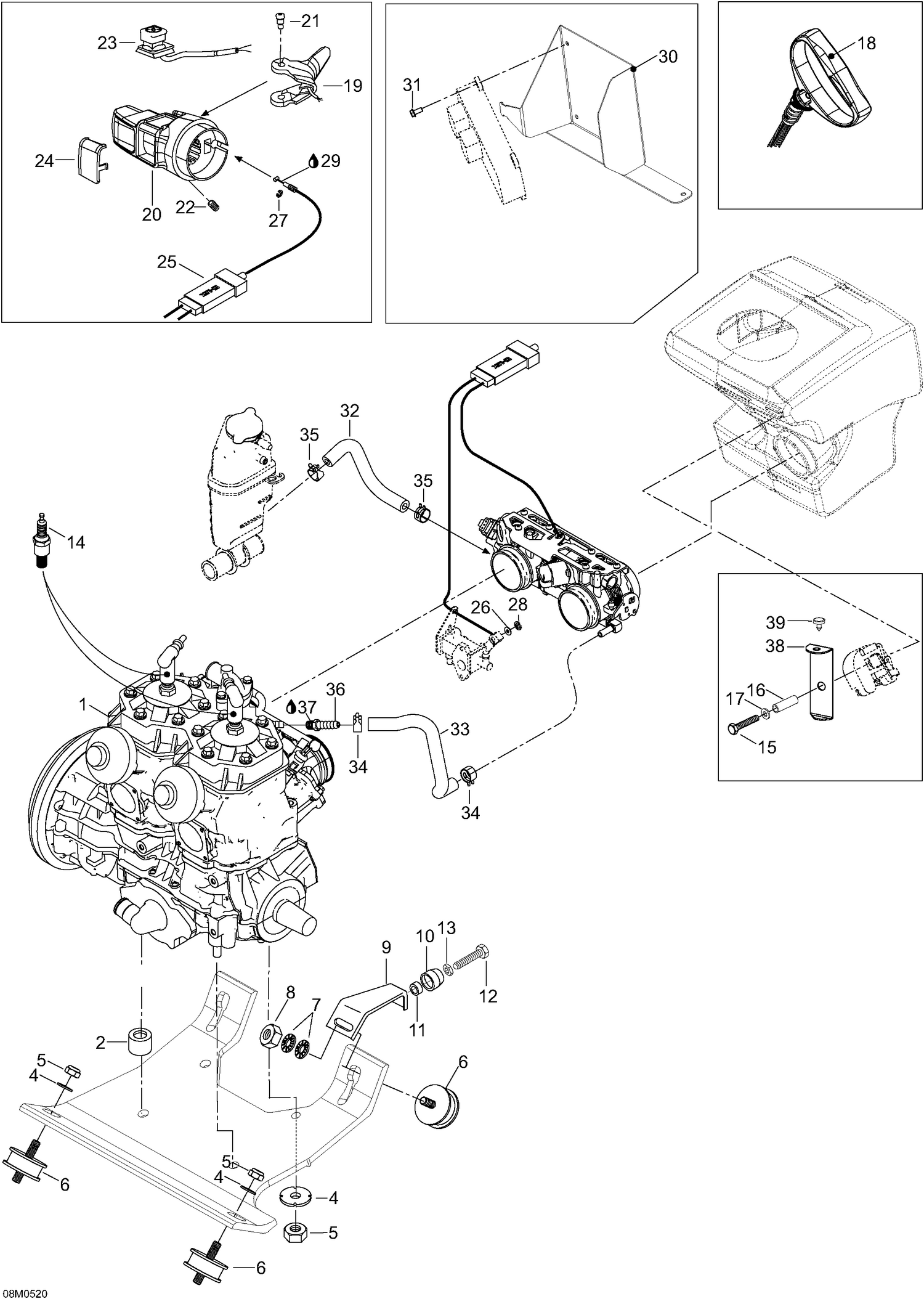

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Engine 590 SDI |
| 2 |
M5446347 |
SLEEVE - Call your local BRP dealership |
| 3 |
605251437 |
Engine Support |
| 4 |
512056700 |
Lock Washer |
| 5 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 6 |
570128700 |
RUBBER MOUNT - Call your local BRP dealership |
| 7 |
20068 |
Lock Washer D10 This part replaces M20068. |
| 8 |
232006414 |
Hex. Nut M10 X 1.5 |
| 9 |
605352447 |
Support |
| 10 |
605449240 |
SLEEVE - Call your local BRP dealership |
| 11 |
M2846014 |
Rubber Washer |
| 12 |
M40121 |
Hex. Screw M8 X 25 |
| 13 |
M33003 |
NUT - Call your local BRP dealership |
| 14 |
415128524 |
Spark Plug NGK BR9ECS |
| 15 |
M40193 |
SCREW - Call your local BRP dealership |
| 16 |
512059812 |
SPACER - Call your local BRP dealership |
| 17 |
234161471 |
Lock Washer M6, Black |
| 18 |
572084400 |
Starter Grip |
| 19 |
512059481 |
Throttle Handle |
| 20 |
512059763 |
THROTTLE HOUSING - Call your local BRP dealership |
| 21 |
732601143 |
Flange Screw |
| 22 |
414440800 |
Socket Set Screw M8 X 10 |
| 23 |
515175410 |
Kill Switch |
| 24 |
572100901 |
Switch Cover |
| 25 |
512059362 |
THROTTLE CABLE - Call your local BRP dealership |
| 26 |
234081100 |
Flat Washer 8 mm, Nylon |
| 27 |
414753500 |
Circlip This part replaces M31035. |
| 28 |
M31038 |
Circlip |
| 29 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 30 |
605351707 |
Support Plate, Ecu |
| 31 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 32 |
509000093 |
Hose 8 mm |
| 33 |
605354601 |
HOSE-FORMED - Call your local BRP dealership This part replaces 512059990. |
| 34 |
414655700 |
Spring Clamp |
| 35 |
293650170 |
Tridon Gear Clamp |
| 36 |
512060196 |
Male Connector 1/8"-27 NPT This part replaces 512059970. |
| 37 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 38 |
605352895 |
SUPPORT, HOOD - Call your local BRP dealership |
