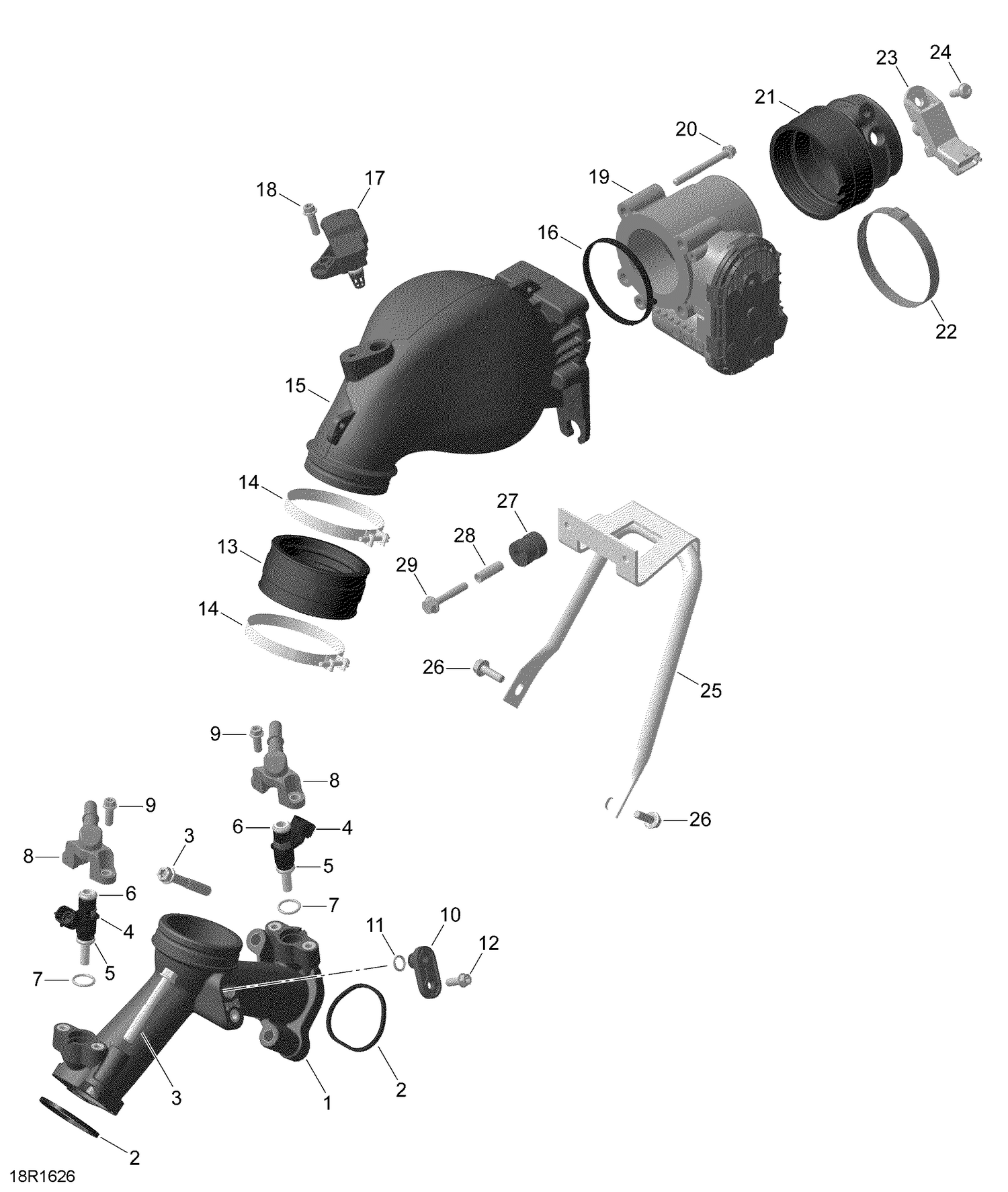

02- Air Intake Manifold and Throttle Body - Turbo
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667520 | Air Intake Manifold |
| 2 | 420630642 | Gasket |
| 3 | 420641213 | Torx Flange Screw M8 X 55 |
| 5 | 420431890 | O-Ring |
| 6 | 420631220 | O-Ring |
| 7 | 420631296 | O-Ring This part replaces 420631295. |
| 8 | 420874901 | Fuel Rail |
| 9 | 420641048 | Torx Flange Screw M6 X 16 |
| 10 | 420460980 | Cover |
| 11 | 420230461 | O-Ring |
| 12 | 420641048 | Torx Flange Screw M6 X 16 |
| 13 | 420267042 | Intake Neck This part replaces 420267040. |
| 14 | 420251209 | Clamp |
| 15 | 420667760 | AIR INLET MANIFOLD - Call your local BRP dealership |
| 16 | 420431900 | Gasket |
| 17 | 515178563 | Pressure Sensor And Air Temperature This part replaces 420874656. |
| 18 | 420441835 | Torx Flange Screw M6 X 20 This part replaces 420440209. |
| 19 | 420892596 | Throttle Body Socket Ass'y This part replaces 420892595. |
| 20 | 420440702 | Torx Flange Screw M6 X 55 |
| 21 | 420867551 | Connecting Socket Ass'Y This part replaces 420867550. |
| 22 | 420251483 | Hose Clamp |
| 23 | 420274058 | Pressure Sensor This part replaces 420274057. |
| 24 | 420641588 | Torx Flange Screw M6 X 16 |
| 25 | 420651525 | SUPPORT - Call your local BRP dealership |
| 26 | 420441311 | Hex.Screw M6 X 20 |
| 27 | 420660090 | Rubber Bracket |
| 28 | 420847971 | Spacer |
