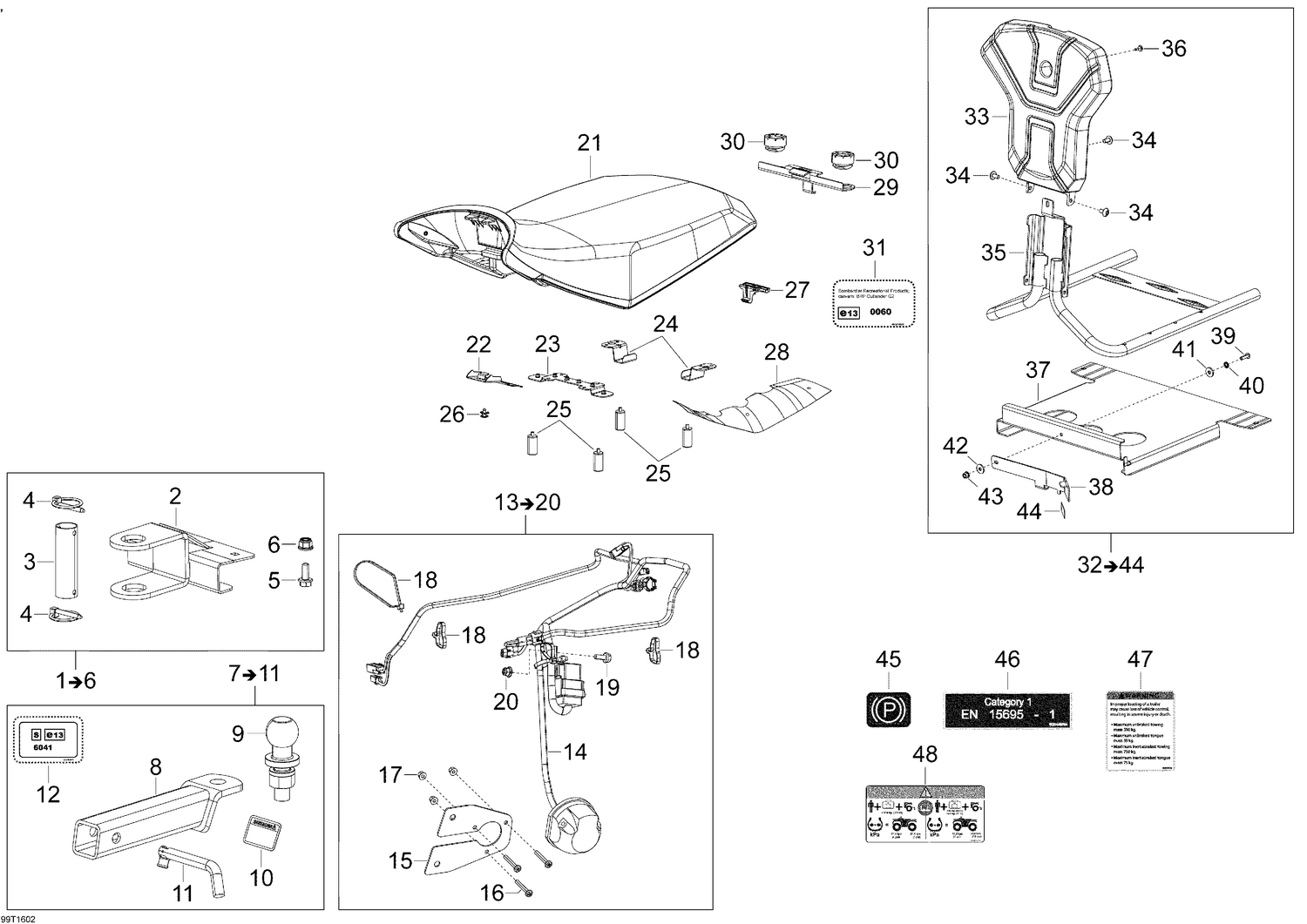

11- T3 Parts (Pro Models)
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 705204452 | Front Coupling Device |
| 3 | 605456511 | Pin |
| 4 | 605456518 | Pin |
| 5 | 207782044 | Carriage Bolt, M8 X 20 |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | Not | Available As Spare Part - Ball Mount |
| 9 | Not | Available As Spare Part - Coupling Ball |
| 10 | Not | Available As Spare Part - Warning Decal |
| 11 | 705204490 | Hitch Pin |
| 12 | 605456545 | Hitch Decal |
| 14 | Not | Available As Spare Part - Rear Light Harness |
| 15 | 605356523 | Plug Support Plate |
| 16 | 205053588 | Socket Head Screw M5 X 35 |
| 17 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 18 | 414115200 | Tie-Rap 180 mm |
| 19 | 207661644 | Hex. Flange Screw M6 X 16 |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 21 | 708002208 | Seat Ass'y |
| 22 | 605456520 | Front Bottom Support |
| 23 | 510005986 | Support Central Cushion |
| 24 | 510005988 | Support Rear Cushion |
| 25 | 605456546 | RUBBER DAMPER - Call your local BRP dealership |
| 26 | 293150067 | Rivet |
| 27 | 708000909 | Latch |
| 28 | 705005761 | HEAT SHIELD - Call your local BRP dealership |
| 29 | 705204621 | Support Rear Seat |
| 30 | 708000760 | Bumper Rubber |
| 31 | 605456593 | Decal |
| 33 | 708001794 | Backrest |
| 34 | 250000675 | Torx Truss Screw M6 x 12 |
| 35 | 708001992 | Backrest Weld |
| 36 | 605454799 | Rubber |
| 37 | 708001991 | Rails |
| 38 | 708001820 | LOCK - Call your local BRP dealership |
| 39 | 250000652 | Socket Screw M5 X .80 X 16 |
| 40 | 20018 | Serrated Lock Washer |
| 41 | 250200024 | Rubber Washer 5 mm |
| 42 | 250200025 | Washer M5 |
| 43 | 233251494 | Elastic Flange Nut M5 |
| 44 | 605456560 | Decal |
| 45 | 605356244 | P-Decal, T3 |
| 46 | 605456594 | Cabin Decal, T3 |
| 47 | 605356505 | Warning Decal |
