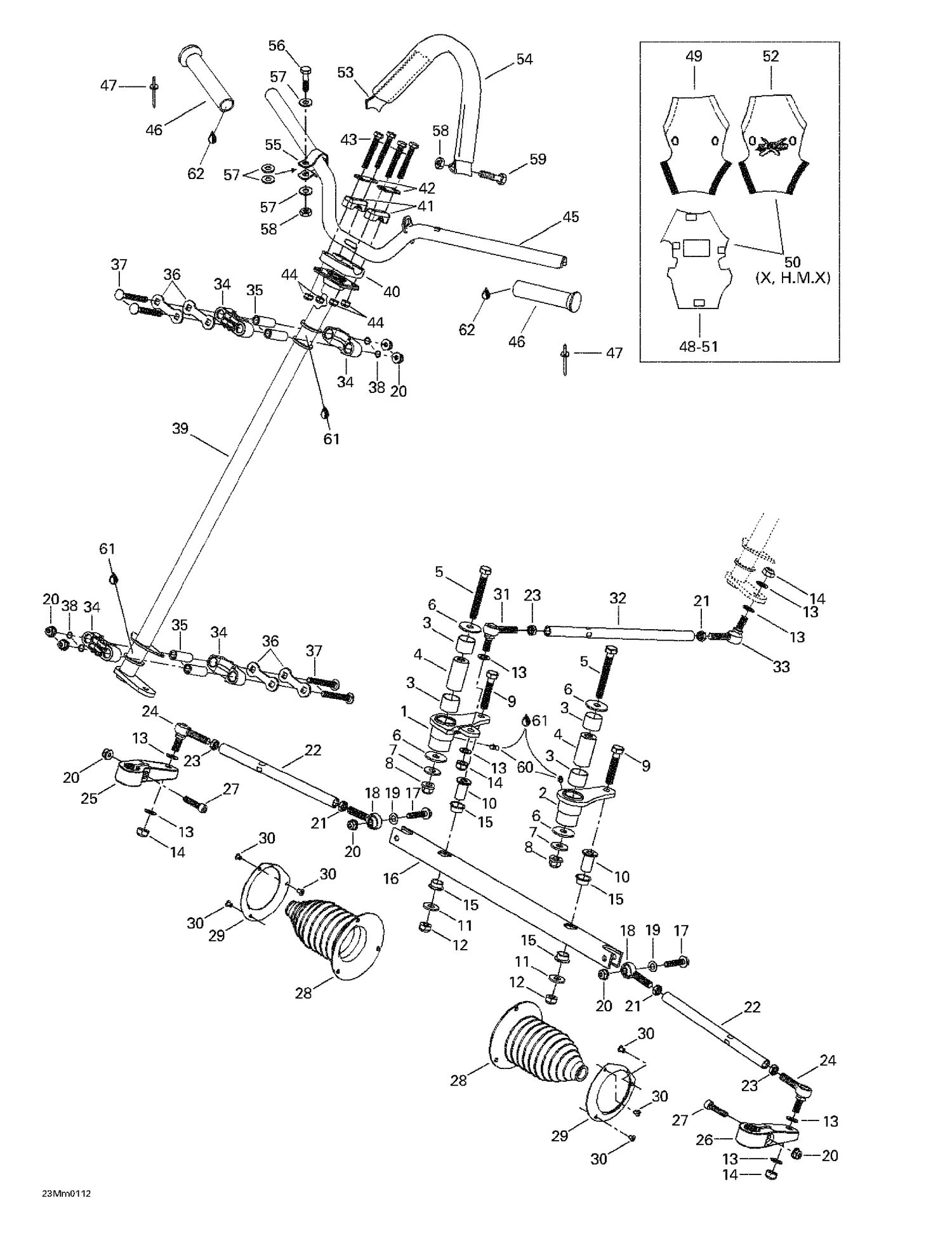

07- Steering System
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506146600 | RH Swivel Arm |
| 2 | 506146700 | LH Swivel Arm |
| 3 | 506149900 | BUSHING SWIVEL - Call your local BRP dealership |
| 4 | 506150100 | PIVOT SWIVEL - Call your local BRP dealership |
| 5 | 207008086 | Hex. Screw M10 X 80 |
| 6 | 506150000 | Washer 10 mm |
| 7 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 8 | 250100105 | Flange Nut M10 This part replaces 732610084. |
| 9 | 207005544 | Hex. Screw M10 X 55 |
| 10 | 506147300 | BAR PIVOT - Call your local BRP dealership |
| 11 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 12 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 13 | 503175800 | Washer |
| 14 | 232501416 | Elastic Flange Nut M10 |
| 15 | 503191555 | Swivel Bushing This part replaces 506150200. |
| 16 | 506147000 | Bar-Swivel |
| 17 | 207684044 | Hex. Flange Screw M8 X 40 |
| 18 | 506151101 | LH Ball Joint |
| 19 | 506151252 | Washer |
| 20 | 233281414 | Hex. Flange Elastic Nut M8 |
| 21 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 22 | 506129600 | Tie-Rod |
| 23 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 24 | 506151491 | Ball Joint This part replaces 415012400. |
| 25 | 506145800 | RH STEERING ARM - Call your local BRP dealership |
| 26 | 506145900 | LH STEERING ARM - Call your local BRP dealership |
| 27 | 205083544 | SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 28 | 570070500 | TIE-ROD CAP - Call your local BRP dealership |
| 29 | 506151100 | RETAINER RING - Call your local BRP dealership |
| 30 | 390402300 | Pop Rivet 3/16" |
| 31 | 506151492 | RH BALL JOINT - Call your local BRP dealership This part replaces 414768000. |
| 32 | 506150300 | Inside Tie-Rod |
| 33 | 506151845 | LH JOINT BALL - Call your local BRP dealership This part replaces 414768100. |
| 34 | 506150400 | Housing Half |
| 35 | 506150500 | Housing Bushing |
| 36 | 506150600 | Stopper Plate |
| 37 | 207787044 | Carriage Bolt M8 X 70 |
| 38 | 506151140 | O-RING - Call your local BRP dealership |
| 39 | 506151222 | Main Tube |
| 40 | 277000142 | STEERING CLAMP - Call your local BRP dealership |
| 41 | 709400919 | Steering Support This part replaces 414491600. |
| 42 | 709400509 | Stiffner This part replaces 506151196. |
| 43 | 207085544 | Hex. Screw M8 X 55 |
| 44 | 232581414 | Hex. Elastic Stop Nut M8 |
| 45 | 506151391 | Handle-Bar, Black |
| 46 | 506152483 | Grip This part replaces M5340464. |
| 47 | 390403600 | Pop Rivet 3/16 |
| 48 | 506151264 | Foam |
| 49 | 506151265 | Cover |
| 53 | 506152115 | Strap Ass'y This part replaces 415095500. |
| 54 | 506152115 | Strap Ass'y This part replaces 415090200. |
| 55 | 506148200 | Support Plate |
| 56 | 207162544 | Hex. Screw M6 X 25 |
| 57 | 234061410 | Flat Washer 6 mm |
| 58 | 232561414 | Elastic Stop Nut M6 |
| 59 | 207063544 | Hex. Flange Screw M6 X 35 |
| 60 | 408200700 | Grease Fitting |
| 61 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
