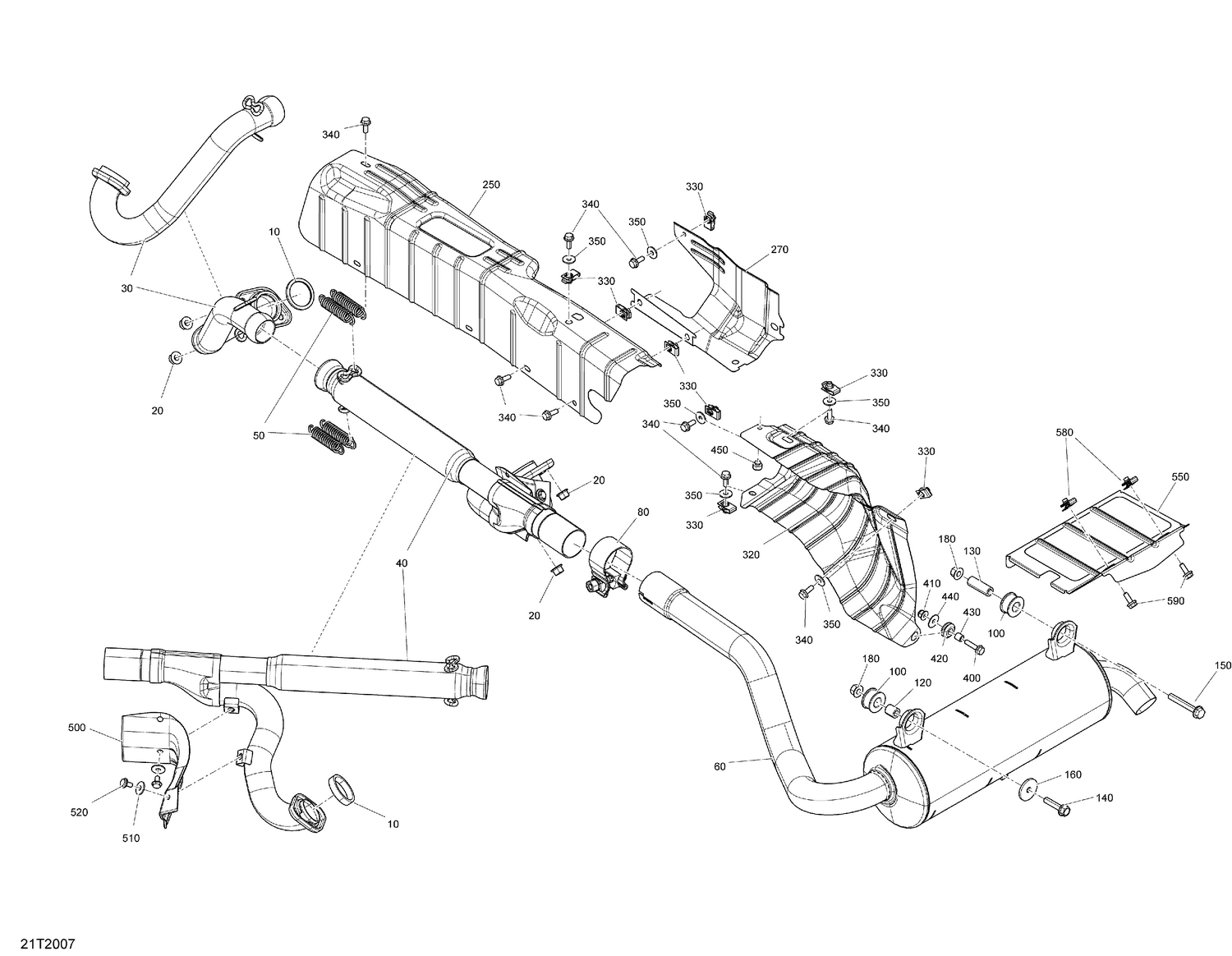

01- Exhaust
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707600317 | Gasket |
| 20 | 233081416 | Hex. Flange Nut M8 |
| 30 | 707600764 | Front Head Pipe |
| 40 | 707601396 | Système d'Échappement À Collecteur |
| 50 | 415107100 | Spring |
| 60 | 707601392 | Exhaust Muffler |
| 80 | 293650228 | Exhaust Pipe Clamp |
| 100 | 707603323 | Vibration Damper This part replaces 707602775. |
| 120 | 293900116 | Spacer Bushing |
| 130 | 293900115 | Bushing |
| 140 | 207683544 | Hex. Flange Screw M8 X 35 |
| 150 | 207685544 | Hex. Flange Screw M8 X 55 |
| 160 | 250200158 | Flat Washer M8 |
| 180 | 233081416 | Hex. Flange Nut M8 |
| 250 | 707603724 | Heat Shield This part replaces 707602603. |
| 270 | 707601484 | Protector |
| 320 | 707601425 | Protector |
| 330 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 340 | 207661644 | Hex. Flange Screw M6 X 16 |
| 350 | 234062410 | Flat Washer 6 mm |
| 400 | 207662534 | Hex. Flange Screw M6 X 25 |
| 410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 420 | 709000582 | Grommet This part replaces 293720053. |
| 430 | 293900105 | Bushing |
| 440 | 224060201 | Flat Washer |
| 450 | 293830005 | Rubber Bumper |
| 500 | 707600932 | Pipe Protector |
| 510 | 250200082 | Flat Washer |
| 520 | 250001090 | Hex. Flange Screw M6 X 12 S.Grip |
| 550 | 707601635 | Protector |
| 580 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
