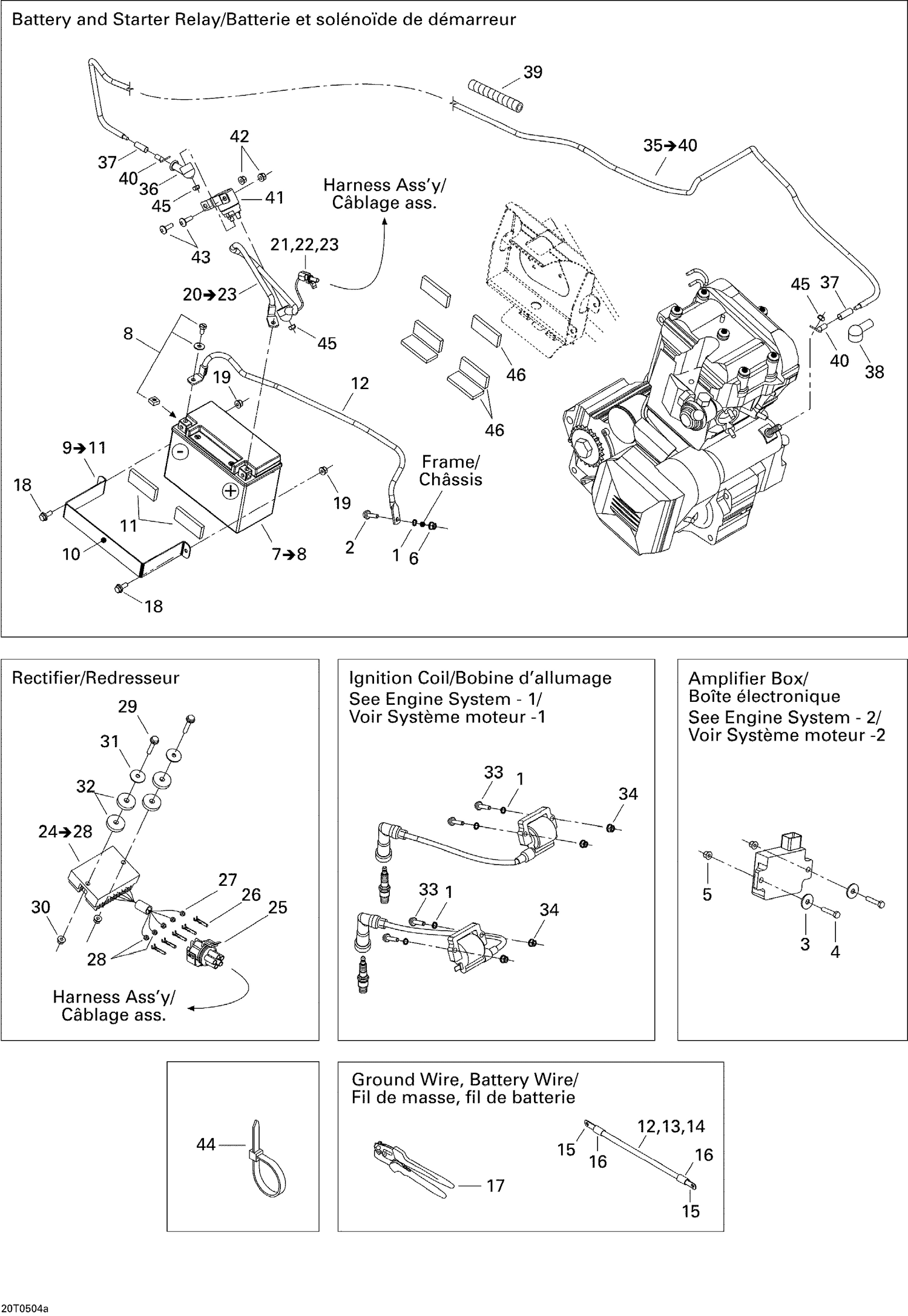

| Ref | Part Number | Description |
|---|
| 1 |
234461608 |
External Serrated Lock Washer 6 mm |
| 2 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 3 |
224061201 |
Flat Washer |
| 4 |
207152544 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 5 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 10 |
710000087 |
RUBBER STRAP, BLACK - Call your local BRP dealership |
| 11 |
293830083 |
PROTECTOR - Call your local BRP dealership |
| 12 |
Not |
Available As Spare Part - Battery Ground Cable |
| 13 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 14 |
278001690 |
Cable Battery, no 6, meter) |
| 15 |
278001682 |
Terminal 45°, Small Hole |
| 15 |
278001683 |
TERMINAL 45, SMALL HOLE - Call your local BRP dealership |
| 15 |
278001684 |
TERMINAL 90, SMALL HOLE - Call your local BRP dealership |
| 15 |
278001685 |
FLAT TERMINAL, BIG HOLE - Call your local BRP dealership |
| 15 |
278001686 |
TERMINAL 45, BIG HOLE - Call your local BRP dealership |
| 15 |
278001687 |
TERMINAL 90, BIG HOLE - Call your local BRP dealership |
| 15 |
278001688 |
FLAT TERMINAL - Call your local BRP dealership |
| 15 |
278001776 |
Terminal 30°, 2 Holes |
| 16 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 17 |
529035730 |
Crimp Plier |
| 18 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
278000219 |
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 22 |
409007300 |
Female Terminal |
| 23 |
710000049 |
Cap |
| 25 |
710000106 |
Female Housing, 5 Circuit |
| 26 |
409007300 |
Female Terminal |
| 27 |
278000218 |
Wire Seal |
| 28 |
710000048 |
Wire Seal |
| 29 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 30 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 31 |
224060251 |
Washer |
| 32 |
250200002 |
RUBBER WASHER - Call your local BRP dealership |
| 33 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 34 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 36 |
710000393 |
Protector Cap |
| 37 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 38 |
710000494 |
Protector Cap |
| 39 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 40 |
710000538 |
OPEN BARREL - Call your local BRP dealership |
| 41 |
515176011 |
Starter Relay |
| 42 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 43 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 44 |
293750002 |
Tie Wrap 142 mm |
| 44 |
293750008 |
Tie Wrap 368 mm |
| 44 |
414115200 |
Tie-Rap 180 mm |
| 45 |
232561414 |
Elastic Stop Nut M6 |
