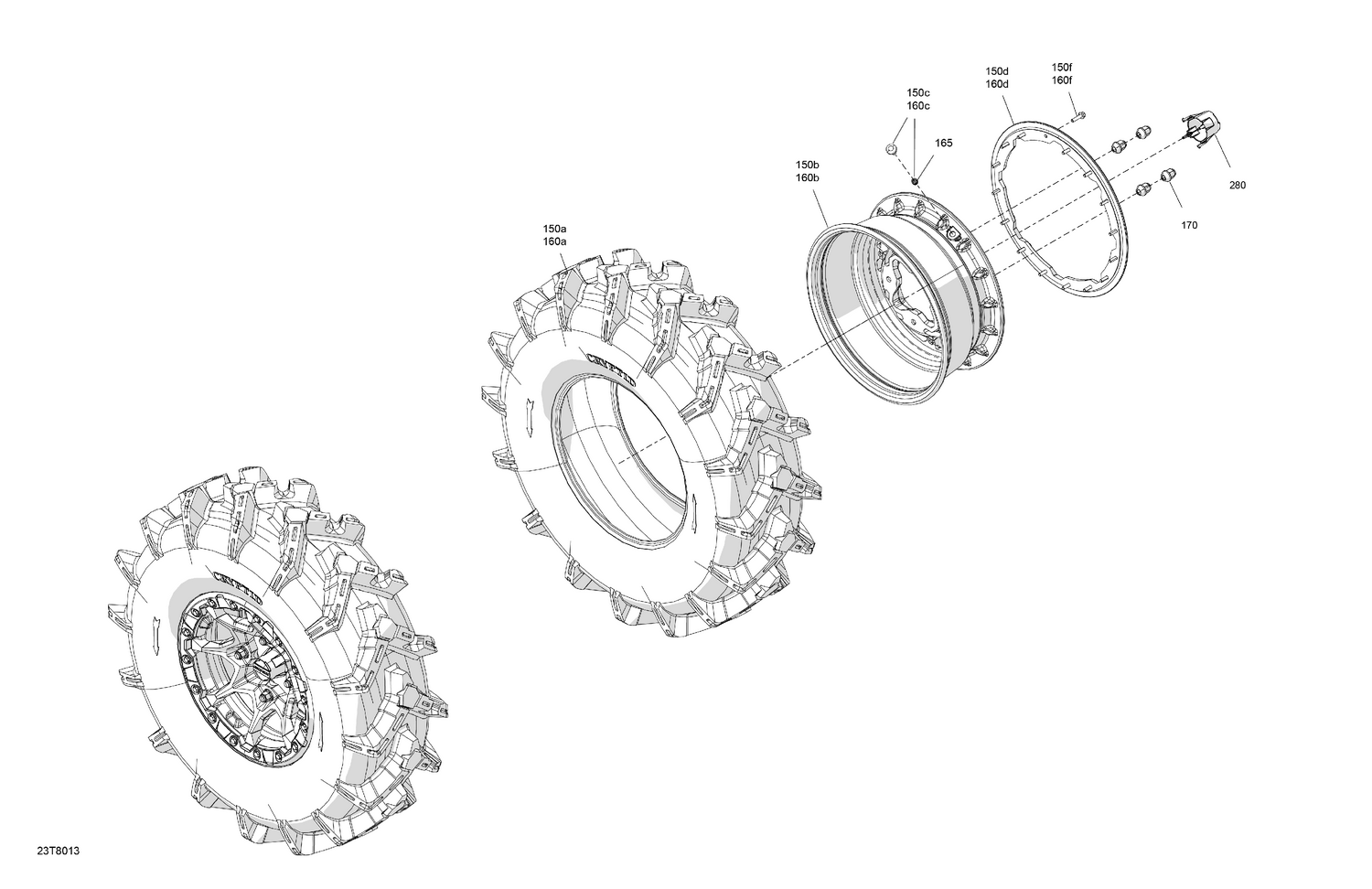

04- Drive - Rear Wheels
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 150a | 705402974 | Tire 30X9R14 |
| 150c | 705400193 | Rim Valve With Cap |
| 150d | 705401837 | Red, Reinforcement Disk |
| 150f | 250000787 | Hex. Flange Screw M6 X 25 |
| 160a | 705402974 | Tire 30X9R14 |
| 160c | 705400193 | Rim Valve With Cap |
| 160d | 705401837 | Red, Reinforcement Disk |
| 160f | 250000787 | Hex. Flange Screw M6 X 25 |
| 165 | 293000110 | Valve Cap |
| 170 | 250100184 | Black, Wheel Nut M10 X 1.25 |
