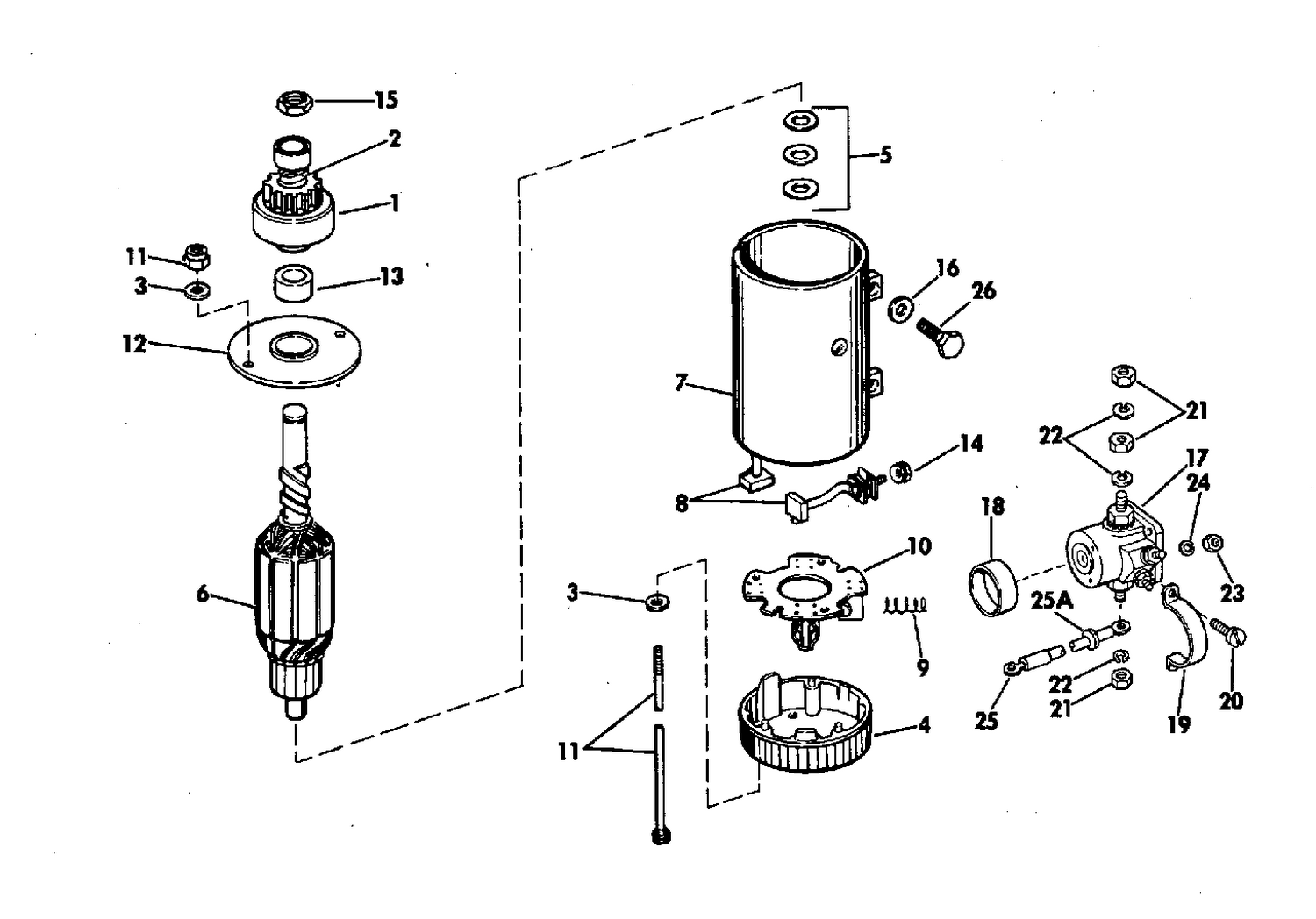

ELECTRIC STARTER & SOLENOID PRESTOLITE MODELS
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0384785 | DRIVE ASSY |
| 3 | 0329241 | RONDELLE This part replaces 0306482. |
| 4 | 0379966 | HEAD ASSEMBLY, Commutator end |
| 5 | 0384306 | THRUSH WASHER PKG. |
| 6 | 0315376 | ARMATURE |
| 7 | 0385058 | FRAME & FIELD ASSY |
| 9 | 0383142 | SPRING SET |
| 10 | 0384502 | BRUSH |
| 12 | 0385059 | HEAD ASSY, Drive end |
| 18 | 0311217 | MANCHON, solénoïde |
| 19 | 0330112 | BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 20 | 0303311 | SCR,Clamp,eng cable |
| 0384914 | 0384914 | STARTER MOTOR ASSY |
