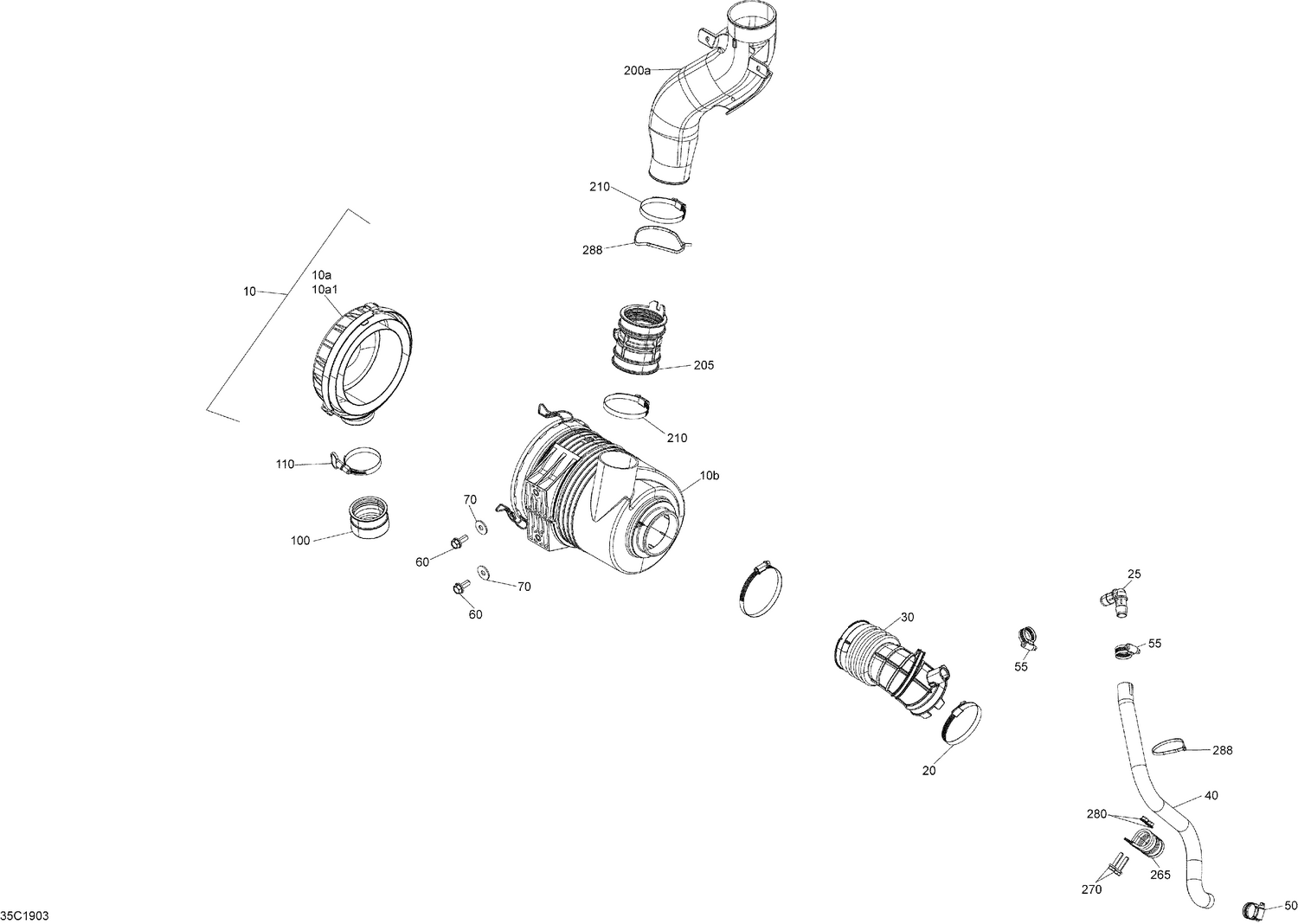

02- Air Intake - HD10 - XMR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 715900514 | O-Ring |
| 10b | 715900394 | Air Filter |
| 20 | 293650091 | Norma Clamp |
| 25 | 293710155 | Elbow Fitting 90 |
| 30 | 707800759 | Air Intake Adaptor |
| 40 | 707800716 | Blow-By Hose |
| 50 | 293650173 | Tridon Gear Clamp |
| 55 | 293650173 | Tridon Gear Clamp |
| 60 | 207682044 | Hex. Flange Screw M8 X 20 |
| 70 | 234082410 | Flat Washer 8 mm |
| 200b | 293000123 | Cap |
| 210 | 293650091 | Norma Clamp |
| 210 | 293650096 | Norma Clamp |
| 265 | 709200036 | Hose Anchor |
| 270 | 207662544 | Hex. Flange Screw M6 X 25 |
| 280 | 233061414 | Hex. Flange Nut M6 |
