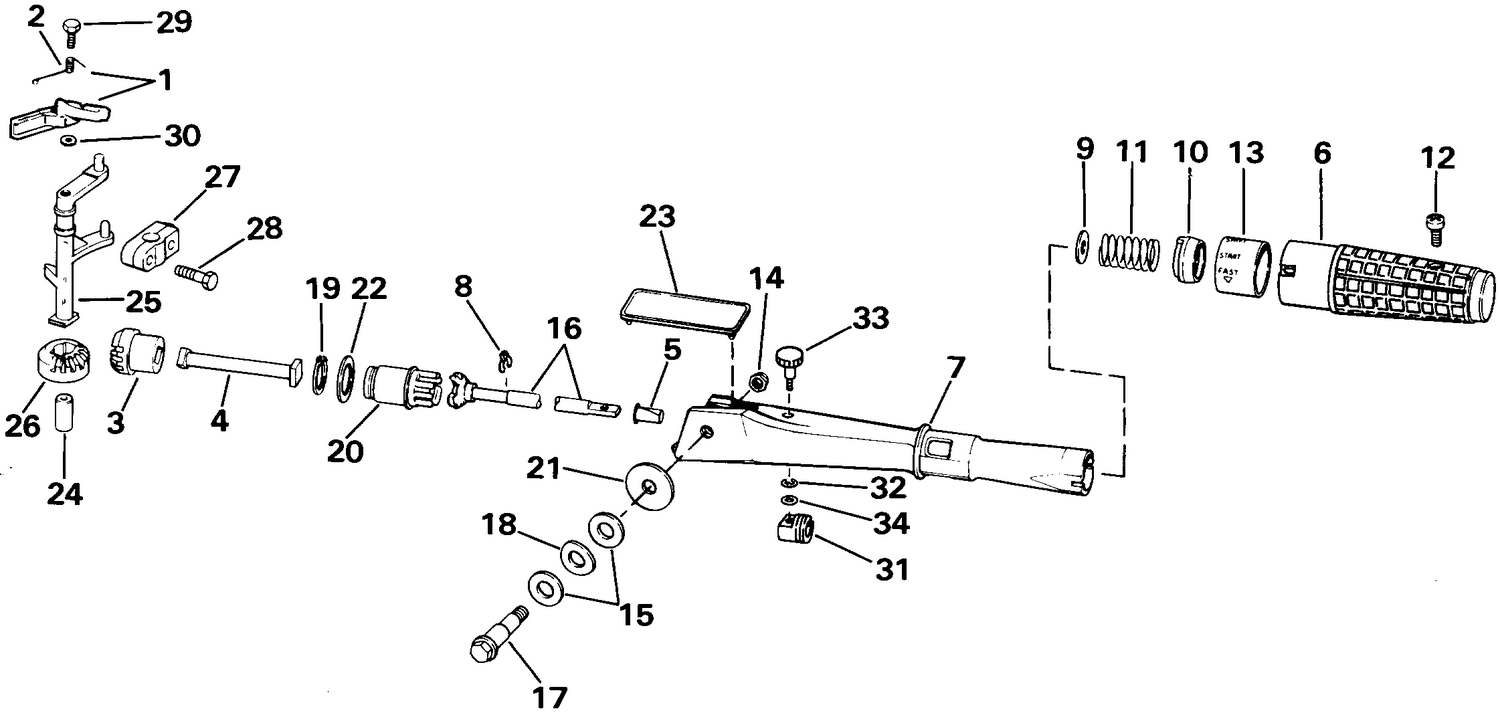

| Ref | Part Number | Description |
|---|
| 1 |
0391105 |
STARTER PAWL & SPRING |
| 2 |
0325913 |
SPRING |
| 3 |
0319034 |
GEAR, Control shaft, inner |
| 4 |
0319006 |
SHAFT, Link to starter interlock bellcrank |
| 6 |
0393556 |
GRIP & SLEEVE ASSY. |
| 7 |
0322133 |
STEERING HANDLE |
| 7 |
0331360 |
STEERING HANDLE |
| 8 |
0322134 |
RETAINING RING |
| 9 |
0303252 |
WAHSER, Grip spring |
| 10 |
0303282 |
BLOCK |
| 11 |
0301656 |
SPRING |
| 13 |
0327942 |
PLATE, Throttle control |
| 14 |
0320266 |
LOCKNUT, Cooler bracket |
| 16 |
0390680 |
GEAR & SHAFT ASSY. |
| 17 |
0318977 |
SCREW, Stgr. hdle. to brkt |
| 18 |
0319041 |
BOW WASHER, Scerw to brkt |
| 19 |
0908141 |
RETAINING RING |
| 20 |
0389720 |
GEAR & BUSHING ASSY., Strg. hdl. |
| 21 |
0304278 |
WASHER |
| 23 |
0319339 |
COVER, Steering hdl. gears |
| 24 |
0321997 |
PIN, Control shaft lever |
| 25 |
0331192 |
SHAFT, Vertical control This part replaces 0325002. |
| 26 |
0319035 |
GEAR, Vertical control shaft |
| 27 |
0327588 |
BEARING CLAMP, Control shaft |
| 28 |
0908159 |
SCREW, Bearing clamp |
| 29 |
0323700 |
SCREW, Pawl to control shaft |
| 31 |
0329659 |
FRICTION BRACKET |
| 32 |
0329660 |
E-RING Knob |
| 33 |
0396075 |
KNOB Friction plate |
