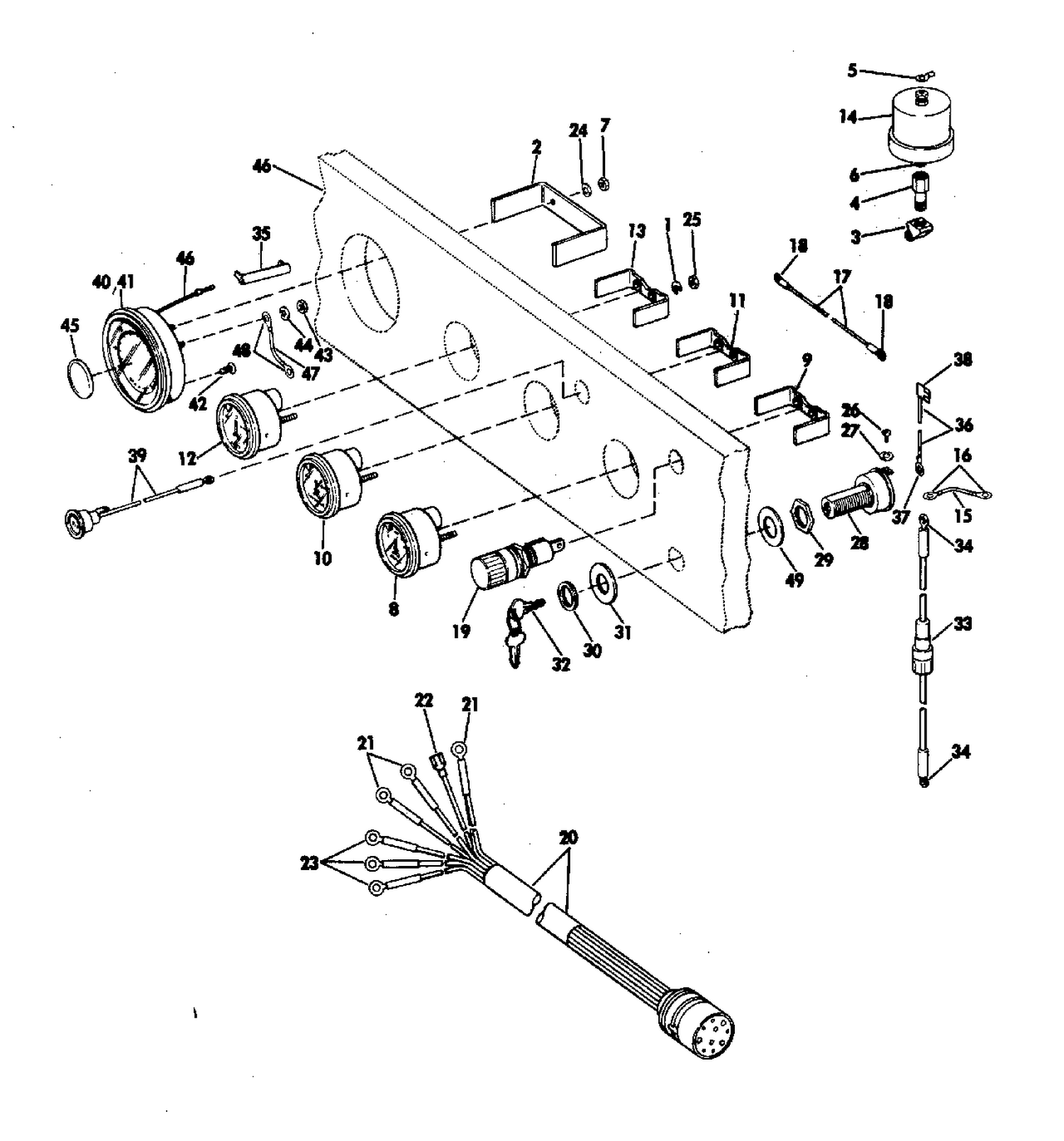

| Ref | Part Number | Description |
|---|
| 2 |
0121350 |
BRACKET |
| 3 |
0121687 |
FITTING |
| 4 |
3855776 |
ADAPTER, Oil sender This part replaces 0121688. |
| 6 |
0121891 |
ELBOW |
| 8 |
0171957 |
GAUGE, Oil pressure, metal case |
| 10 |
0171958 |
GAUGE, Water temperature, metal case |
| 12 |
0380444 |
AMMETER |
| 14 |
3853800 |
OIL PRESSURE SENDER This part replaces 0172127. |
| 15 |
0172148 |
LEAD ASSEMBLY |
| 17 |
0172149 |
LEAD ASSEMBLY |
| 19 |
0172410 |
FUSE HOLDE ASSEMBLY |
| 20 |
0172433 |
CABLE ASSEMBLY, On models w/oil pressure gaug e |
| 20 |
0979924 |
CABLE ASSEMBLY |
| 24 |
0304642 |
LOCKWASHER |
| 28 |
0386545 |
IGNITION SWITCH & KEY ASSY This part replaces 0378238. |
| 32 |
KEY, |
Ignition switch |
| 33 |
0378334 |
FUSE HOLDER & LEAD ASSEMBLY |
| 36 |
0279177 |
LEAD ASSEMBLY IGNITION SWITCH TO CHOKE SWITC |
| 39 |
0379852 |
INDICATING LIGHT ASSY., Oil |
| 40 |
0172051 |
TACHOMETER ASSEMBLY |
| 41 |
0172045 |
TACHOMETER |
| 42 |
0121354 |
MOUNTING SCREW, Instrument |
| 44 |
0304642 |
LOCKWASHER |
| 45 |
0121720 |
BITTON,Trim |
| 47 |
0172140 |
GROUND WIRE ASSEMBLY |
| 0171759 |
0171759 |
CASE ASSEMBLY |
