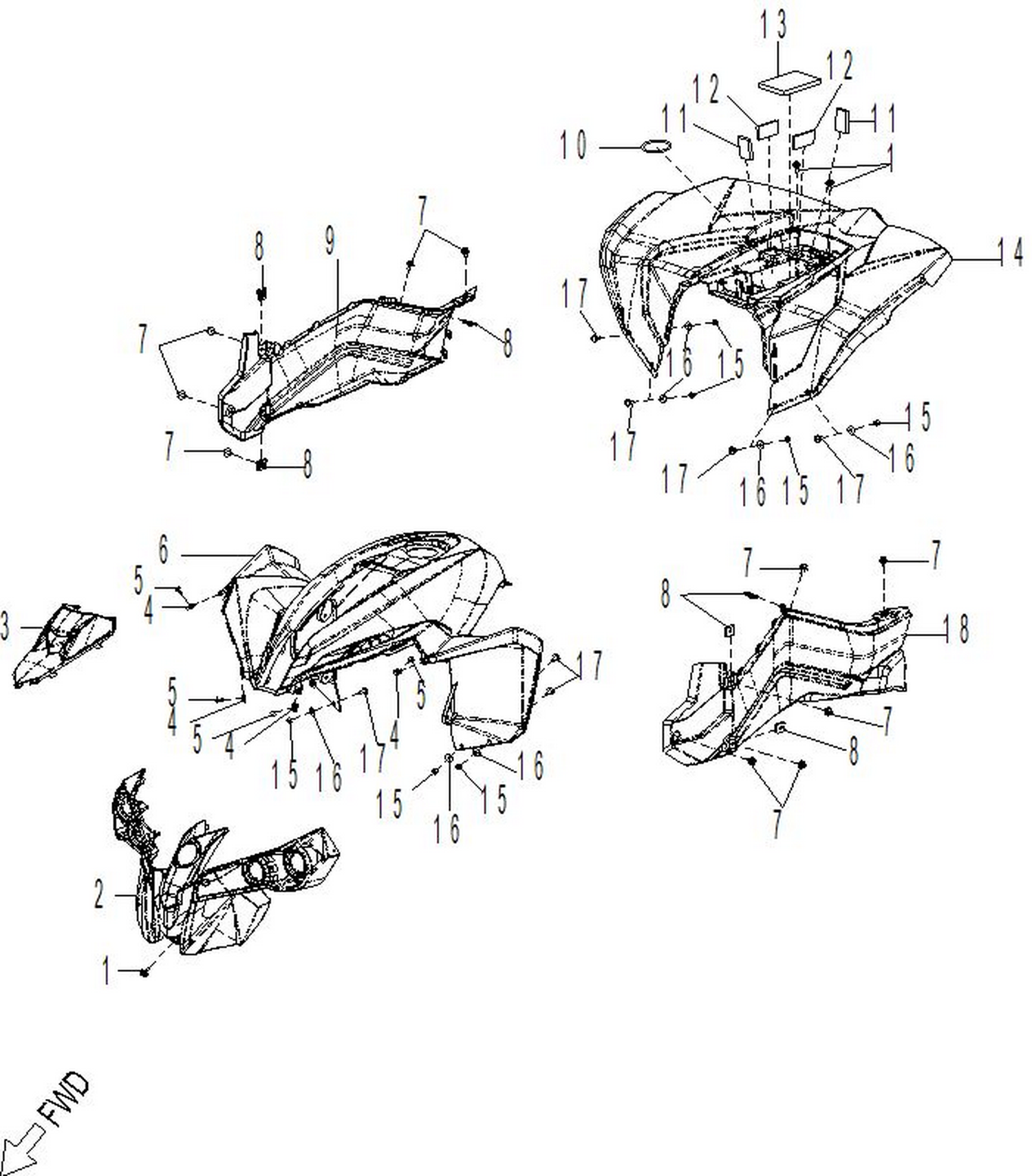

07- Body - Cab Catalyst Grey
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A921000601680K3 | Hexagonal Head Bolt M6 X 16 |
| 2 | A50461T91070 | Black, Fascia |
| 3 | A61152T91070 | Console Black |
| 4 | A61121204000 | U Shaped Clip (Tapping Screw 5MM) |
| 5 | A9390330501280K3 | Tapping Screw M5 X 12 |
| 6 | A61100T91855 | Catalyst Grey, Front Fender |
| 7 | A960070601880K3 | Hexagonal Head Bolt W/Washer |
| 8 | A903440600000B | U Shaped Plate W/Nut |
| 9 | A83500T91070 | Black, RH Side Panel |
| 10 | A9321304740 | O-RIng |
| 11 | A31510212000 | Battery Pad 50X30X8 |
| 12 | A31510211000 | Battery Pad 60X30X5 |
| 13 | A31510131000 | Battery Pad |
| 14 | A61000T91855 | Catalyst Grey, Rear Fender |
| 15 | A903550600003K | Lock Nut M6 (W / Spring Plate) This part replaces A90350050000K3. |
| 16 | A9410105120100K3 | Washer |
| 17 | A931000501680K3 | Cross Flat Head Bolt M5 X 16 |
