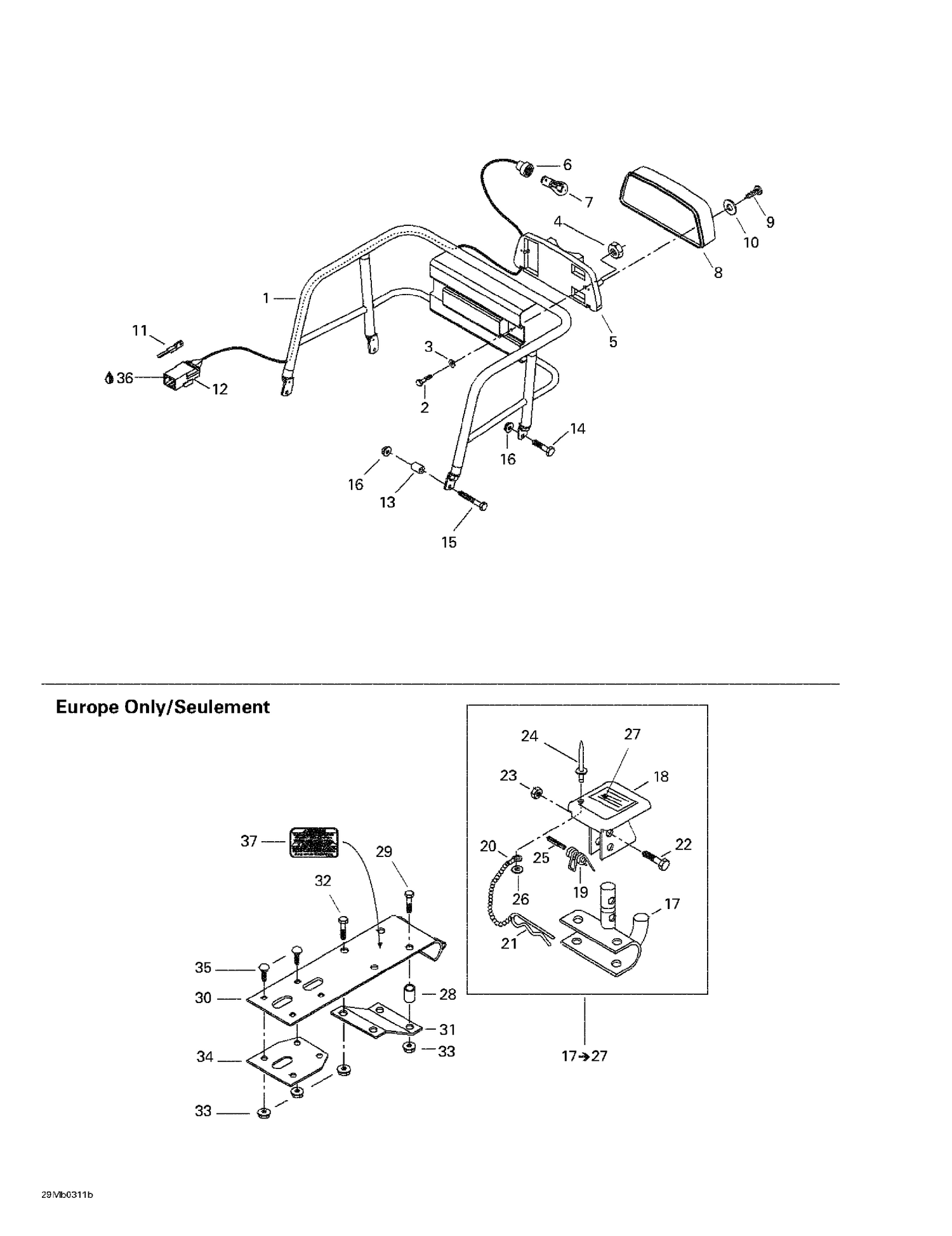

09- Cargo
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517273100 | Rack |
| 2 | 207053044 | Hex. Screw M5 X 30 |
| 3 | 517297900 | WASHER - Call your local BRP dealership |
| 4 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 5 | 515175397 | LAMP HOUSING - Call your local BRP dealership |
| 6 | 515175650 | Socket |
| 7 | 520000758 | Bulb This part replaces 410504100. |
| 8 | 414513700 | Lens |
| 9 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 10 | 414516400 | Washer - Call your local BRP dealership |
| 11 | 515175232 | Male Terminal |
| 12 | 515175494 | Male Housing, 3 Circuits |
| 13 | 517185600 | Spacer |
| 14 | 207162044 | Hex. Screw M6 X 20 |
| 15 | 207064044 | Hex. Screw M6 X 40 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 517199300 | Hitch |
| 18 | 517152700 | Hitch Protector |
| 19 | 517152800 | SPRING - Call your local BRP dealership |
| 20 | Not | Available As Spare Part - Chain |
| 21 | 114045200 | Hair Pin |
| 22 | 207063044 | Hex. Screw M6 X 30 |
| 23 | 232561414 | Elastic Stop Nut M6 |
| 24 | 390409400 | RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 25 | 732804000 | SPRING PIN M3 X 24 - Call your local BRP dealership |
| 26 | Not | Available As Spare Part - Flat Washer |
| 27 | 516001243 | Security Label, Hitch |
| 28 | 517191700 | SPACER - Call your local BRP dealership |
| 29 | 207065044 | HEX. CAP SCREW M6 X 50 - Call your local BRP dealership |
| 30 | 511000019 | Support |
| 31 | 511000022 | REINFORCEMENT - Call your local BRP dealership |
| 32 | 207161844 | Hex. Screw M6 X 18 |
| 33 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 34 | 517256100 | Inner Plate |
| 35 | 207762044 | Carriage Bolt M6 X 20 |
| 36 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
