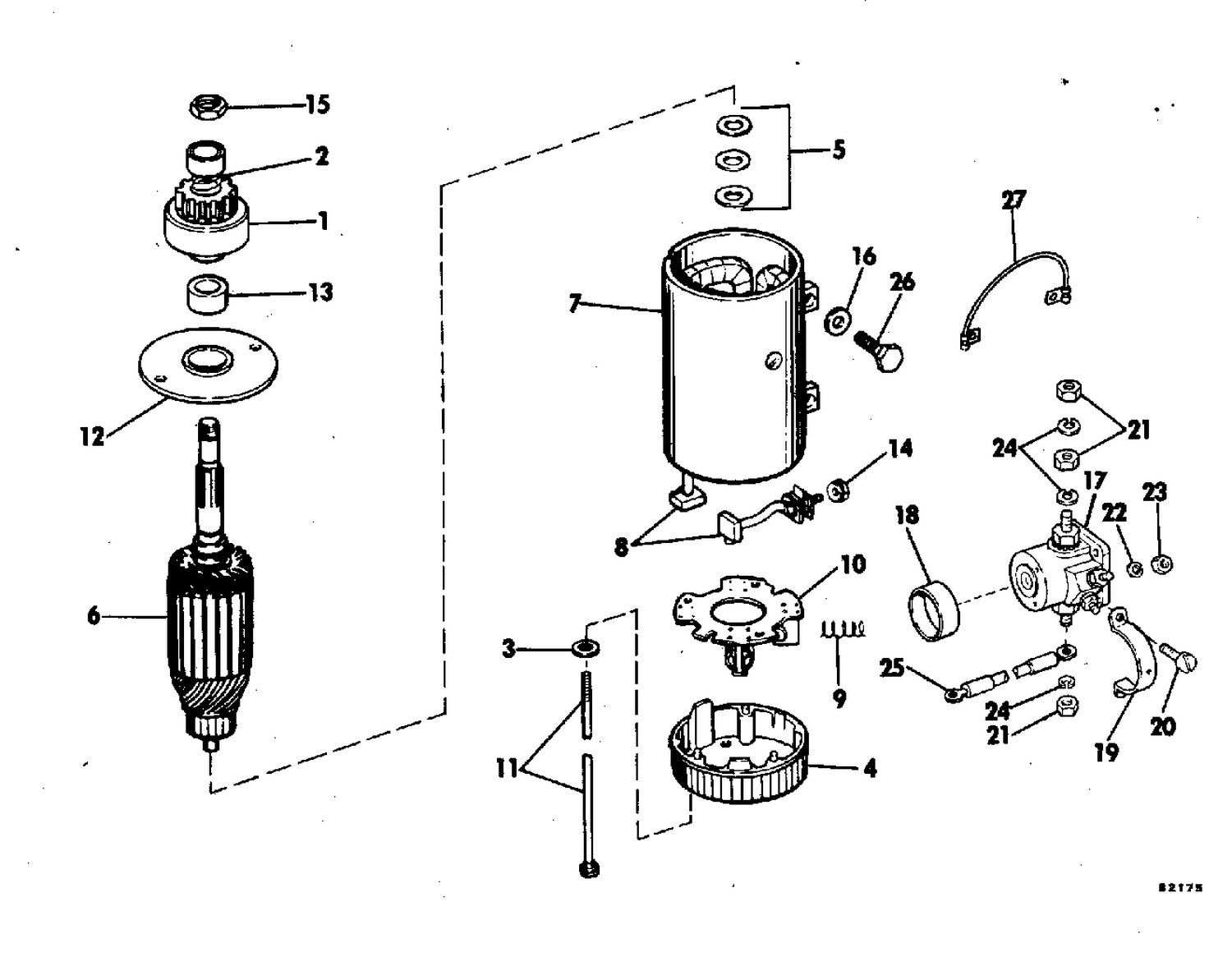

| Ref | Part Number | Description |
|---|
| 1 |
0384785 |
DRIVE ASSY |
| 3 |
0329241 |
RONDELLE This part replaces 0306482. |
| 4 |
0379966 |
HEAD ASSEMBLY, Commutator end |
| 5 |
0384306 |
THRUSH WASHER PKG. |
| 6 |
0315376 |
ARMATURE |
| 7 |
0389559 |
FRAME & FIELD COIL ASSY. |
| 8 |
0386105 |
BRUSH SET |
| 9 |
0381342 |
SPRING SET |
| 10 |
0384502 |
BRUSH |
| 12 |
0385059 |
HEAD ASSY, Drive end |
| 18 |
0311217 |
MANCHON, solénoïde |
| 19 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 20 |
0324644 |
SCREW, Solecoid mounting This part replaces 0316194. |
| 26 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 27 |
0580733 |
FIL, masse solénoïde |
| 0389275 |
0389275 |
STARTER MOTOR ASSY. |
