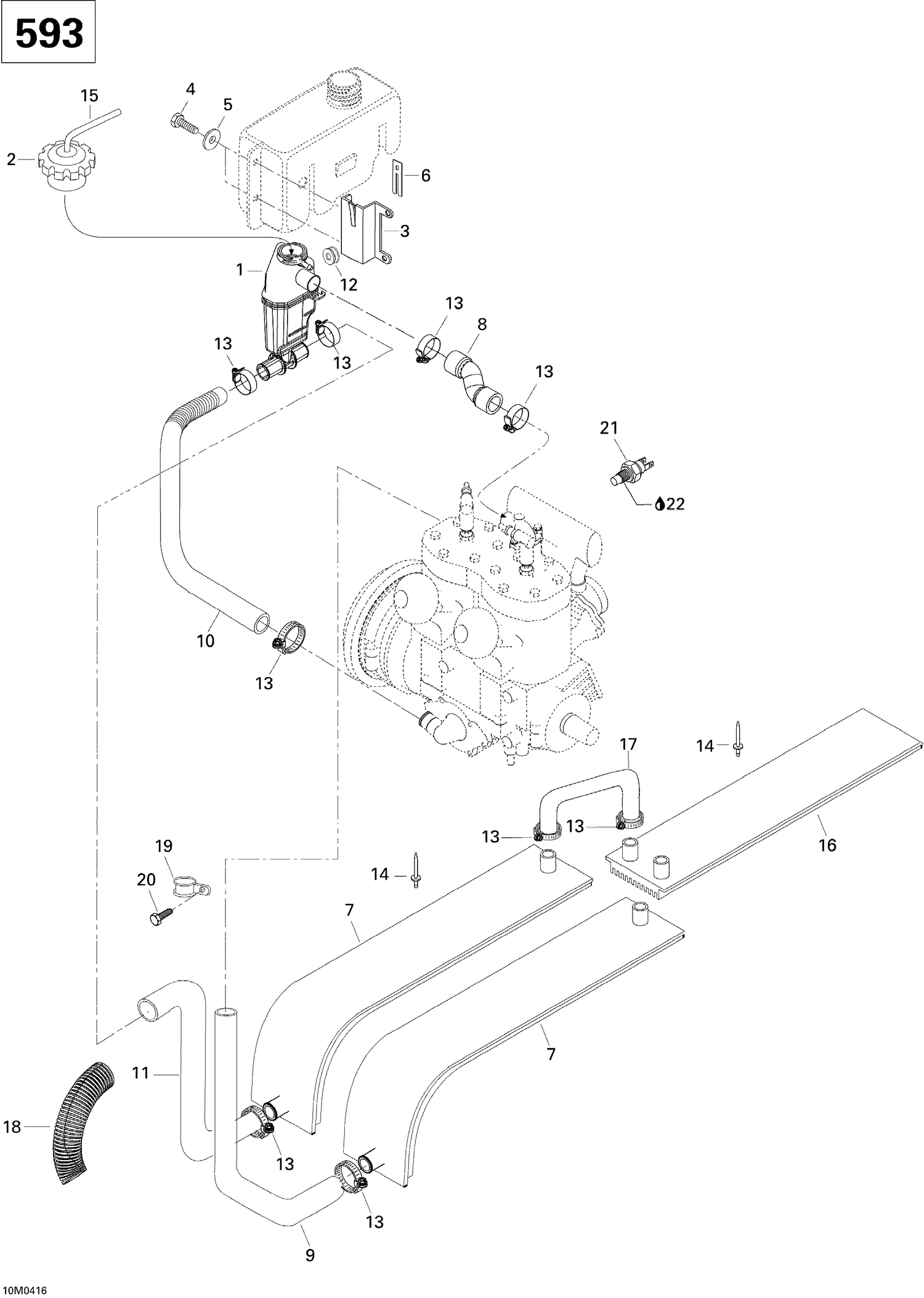

01- Cooling System (593)
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000134 | Tank Coolant |
| 2 | 509000187 | Pressure Cap |
| 3 | M5347031 | Tank Support |
| 4 | M40322 | Screw |
| 5 | 234062410 | Flat Washer 6 mm This part replaces M20009. |
| 6 | M5447032 | LOCK - Call your local BRP dealership |
| 7 | M5146385 | LH Radiator |
| 7 | M5146386 | RH Radiator |
| 8 | M5348268 | Hose |
| 9 | M5346201 | Hose |
| 10 | M5343357 | Hose |
| 11 | 605349198 | Hose |
| 12 | 28022 | Grommet This part replaces M28022. |
| 13 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 14 | 36108 | Rivet This part replaces M36108. |
| 15 | 219704410 | Polyurethane Hose 10000Mm Long |
| 16 | M5345916 | Radiator |
| 17 | M5445970 | Tube |
| 18 | M390003 | Tube |
| 19 | M27011 | CLIP - Call your local BRP dealership |
| 20 | M40327 | SCREW-M6X12 - Call your local BRP dealership |
| 21 | 512047000 | Temperature Sensor |
