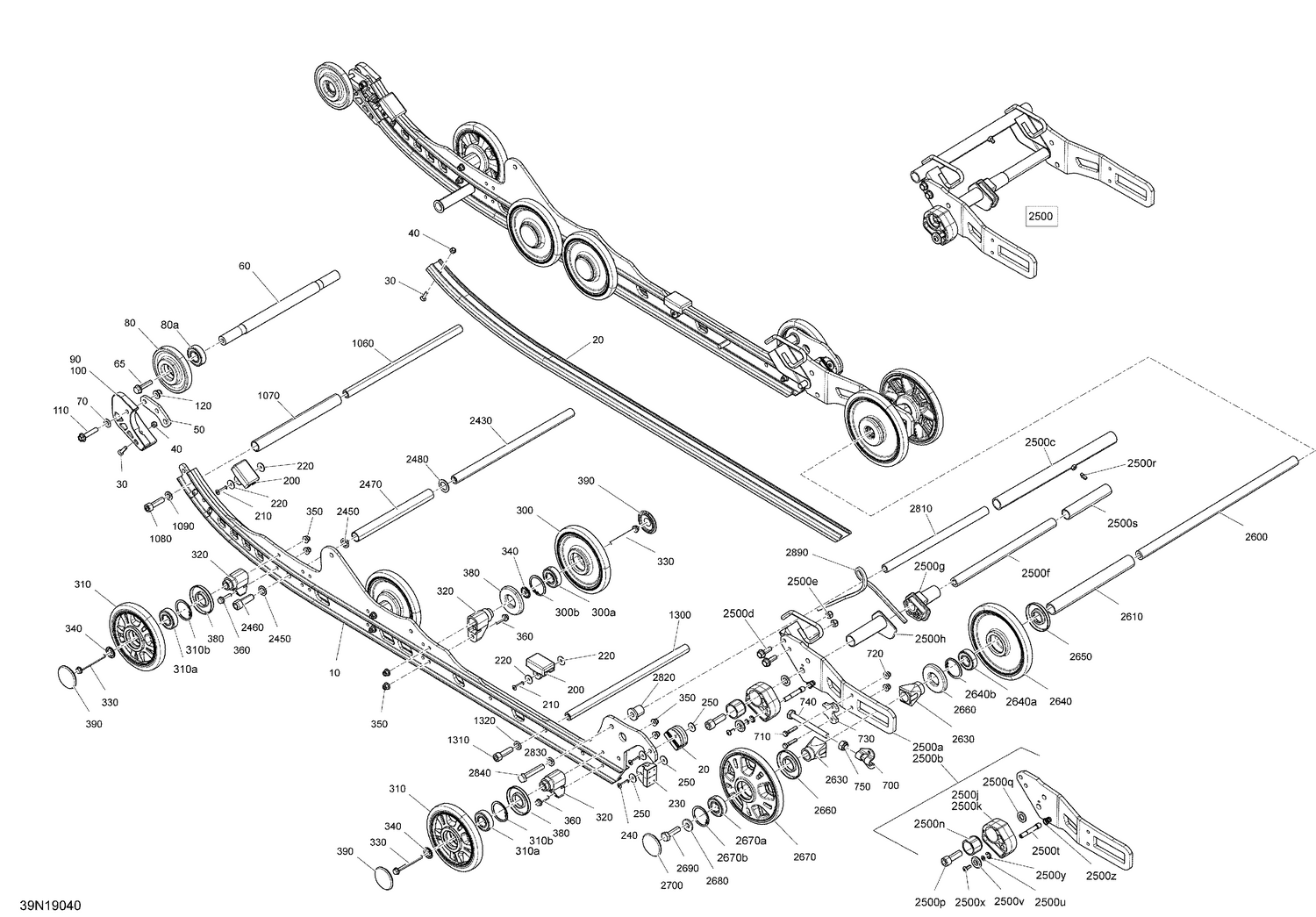

| Ref | Part Number | Description |
|---|
| 10 |
503194351 |
Black Runner |
| 20 |
503192618 |
Black Slider, 154" |
| 30 |
208562531 |
Phillips Screw M6 X 25 |
| 40 |
232561414 |
Elastic Stop Nut M6 |
| 50 |
503192612 |
Plate |
| 60 |
503192643 |
Axle |
| 65 |
250000986 |
Hex. Flange Screw M8 X 35 |
| 70 |
503189157 |
Washer |
| 80 |
503192611 |
Black, Wheel Ass'y, 100 mm |
| 80a |
503190396 |
Ball Bearing |
| 90 |
503192610 |
RH Protector |
| 100 |
503192609 |
LH Protector |
| 110 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 120 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 200 |
503190576 |
Rubber Stopper |
| 210 |
293150224 |
Pop Rivet 3/16 |
| 220 |
503191273 |
Washer |
| 230 |
503191291 |
Rubber Stopper |
| 240 |
293150224 |
Pop Rivet 3/16 |
| 250 |
503191273 |
Washer |
| 300a |
503190396 |
Ball Bearing |
| 300b |
415129371 |
Retaining Ring |
| 310a |
503190396 |
Ball Bearing |
| 310b |
415129371 |
Retaining Ring |
| 320 |
503193894 |
Casted Support |
| 330 |
207667056 |
Hex. Flange Screw M6 X 70 |
| 340 |
503191820 |
Wheel Cup M6 |
| 350 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 360 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 380 |
503190434 |
Labyrinth Seal |
| 390 |
503192771 |
Black, Wheel Cap |
| 700 |
503192583 |
Tensioner |
| 710 |
207063054 |
Hex. Cap Screw M6 X 30 |
| 720 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 730 |
503193250 |
Spacer |
| 740 |
230100054 |
Hex Screw M10 x 100 |
| 750 |
233601466 |
Elastic Locking Nut M10 |
| 1060 |
503192623 |
Axle Strap |
| 1070 |
503192679 |
SPACER - Call your local BRP dealership |
| 1080 |
205503544 |
Socket Head Screw M10 X 35, Scotch Grip |
| 1090 |
503189564 |
Washer |
| 1300 |
503191418 |
Axle Strap |
| 1310 |
205503544 |
Socket Head Screw M10 X 35, Scotch Grip |
| 1320 |
503189564 |
Washer |
| 2430 |
503193967 |
Shaft |
| 2450 |
503189276 |
Washer |
| 2460 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 2470 |
503191421 |
Spacer |
| 2480 |
503189273 |
Washer |
| 2500 |
503194354 |
Pivot Support Ass'y, Long Black |
| 2500a |
503195759 |
Black, RH Pivot Support Long This part replaces 503193970. |
| 2500b |
503195760 |
Black, LH Pivot Support Long This part replaces 503193969. |
| 2500c |
503191414 |
Welded Pivot |
| 2500d |
207682534 |
Hex. Flange Screw M8 X 25 |
| 2500e |
232581414 |
Hex. Elastic Stop Nut M8 |
| 2500f |
503191711 |
Cam Axle |
| 2500g |
503191190 |
RH Spring Cam |
| 2500h |
503191668 |
LH Spring Cam |
| 2500j |
503192426 |
LH Block |
| 2500k |
503192427 |
RH Block |
| 2500n |
503189488 |
Block Guide |
| 2500p |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 2500q |
503189148 |
Washer |
| 2500r |
408200700 |
Grease Fitting |
| 2500s |
503191713 |
Spacer |
| 2500t |
503192437 |
Rode |
| 2500u |
234051410 |
Flat Washer M5 |
| 2500v |
503192438 |
Handle |
| 2500x |
250000742 |
Torx Screw M5 X 14 |
| 2500y |
293370068 |
Circlip |
| 2500z |
503192436 |
Compression Spring |
| 2600 |
503191408 |
Rear Axle |
| 2610 |
503196316 |
Spacer This part replaces 503191409. |
| 2630 |
503190428 |
Rear Wheel Spacer |
| 2640a |
503190396 |
Ball Bearing |
| 2640b |
415129371 |
Retaining Ring |
| 2650 |
503190682 |
Labyrinth Seal |
| 2660 |
503190434 |
Labyrinth Seal |
| 2670a |
503190396 |
Ball Bearing |
| 2670b |
415129371 |
Retaining Ring |
| 2680 |
503190439 |
Washer |
| 2690 |
250000817 |
Hex Screw With Nilon Patch, M10 X 35 |
| 2700 |
503192771 |
Black, Wheel Cap |
| 2810 |
503191390 |
Lower Shaft |
| 2820 |
503189324 |
Bushing |
| 2830 |
503192496 |
Washer |
| 2840 |
250000605 |
Hex. Screw S.Grip M10 X 55 |
