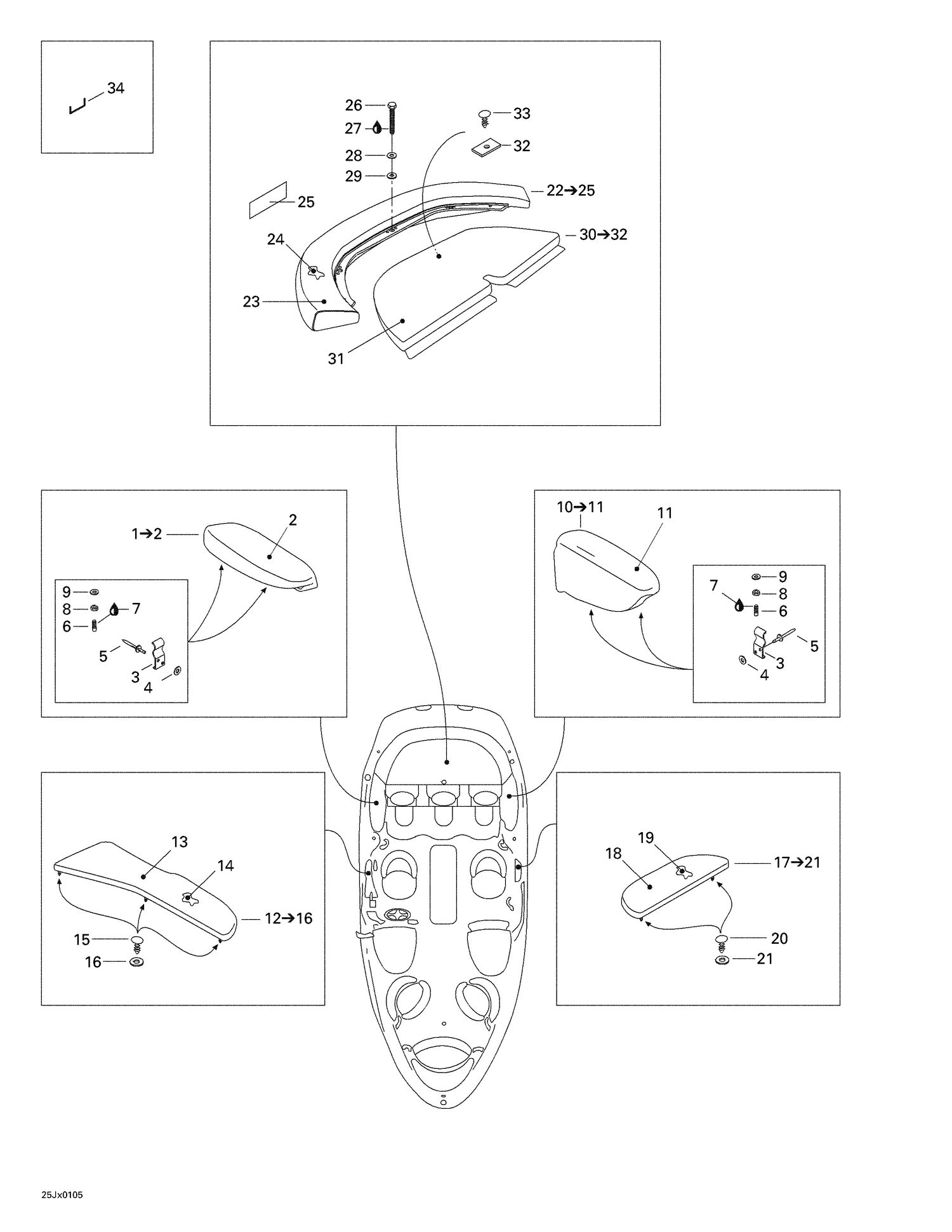

| Ref | Part Number | Description |
|---|
| 2 |
204610705 |
RH Armrest Cover |
| 3 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 4 |
234061600 |
Stainless Flat Washer M6 |
| 5 |
293150043 |
Pop Rivet 3/16" |
| 6 |
206254060 |
Socket Set Screw M5 x 40 |
| 7 |
293800005 |
Loctite 271, 10 ml |
| 8 |
232551600 |
Hex. Elastic Nut M5 |
| 9 |
234052600 |
Flat Washer 5 mm, Stainless |
| 11 |
204610587 |
LH Armrest Cover |
| 13 |
204610707 |
RH Elbowrest Cover |
| 14 |
204610121 |
Neoprene Foam |
| 15 |
293730006 |
Black, Dart |
| 16 |
234062600 |
Flat Washer M6, Stainless |
| 18 |
204610709 |
LH Elbowrest Cover |
| 19 |
204610123 |
Neoprene Foam |
| 20 |
293730006 |
Black, Dart |
| 21 |
234062600 |
Flat Washer M6, Stainless |
| 23 |
204610715 |
Spoiler Cover |
| 24 |
204610053 |
Foam Spoiler |
| 25 |
204610184 |
Staple Cover, Meter |
| 26 |
207362560 |
Hex. Screw M6 X 25, Scotch Grip |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
234062600 |
Flat Washer M6, Stainless |
| 29 |
234002600 |
Flat Washer 10 mm, Stainless |
| 31 |
204610717 |
Platform Cover (Metalic Quartz) |
| 32 |
204610194 |
Strap |
| 33 |
293730006 |
Black, Dart |
