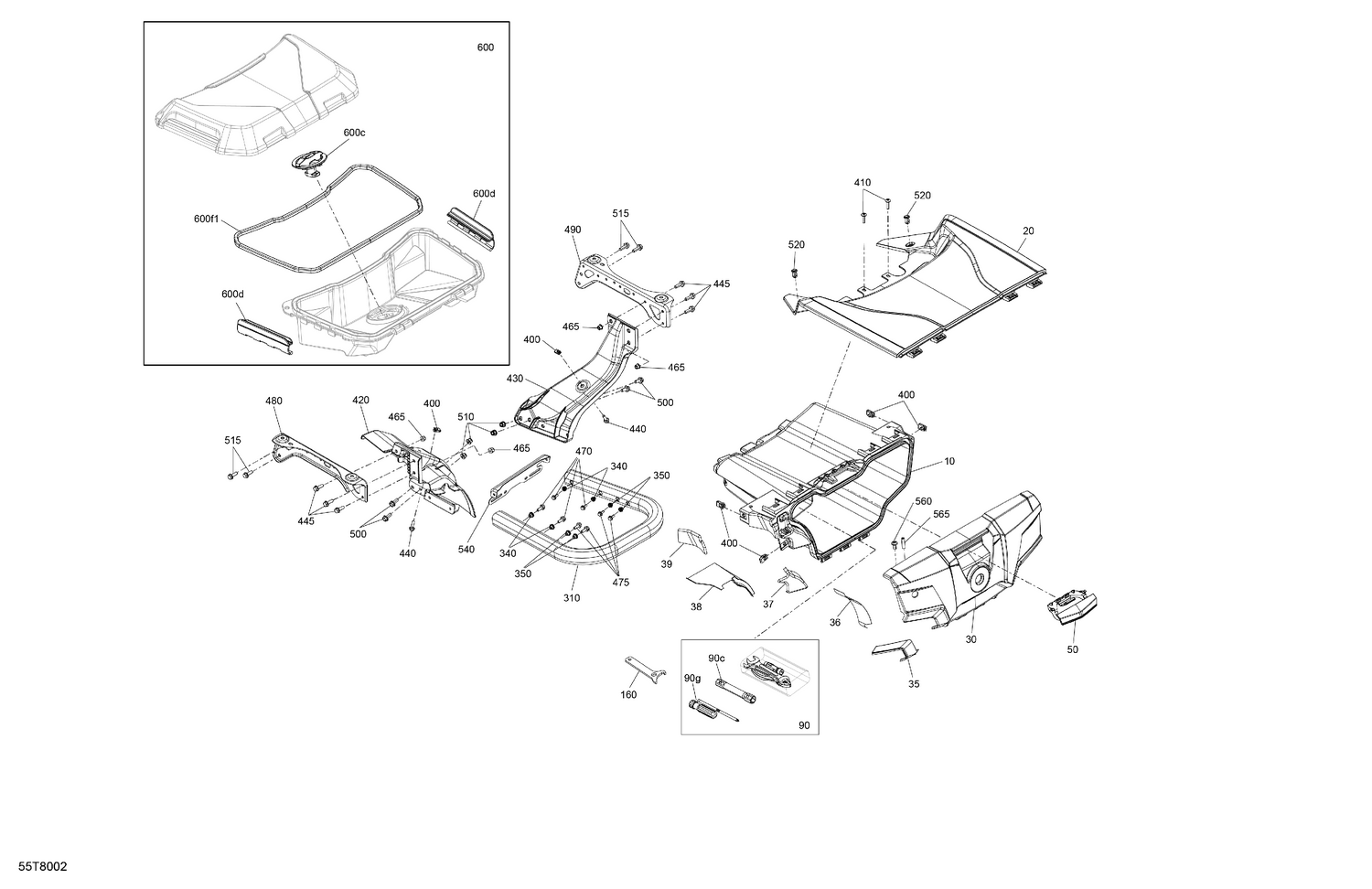

07- Body - Rear Storage Tray
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708300674 | Rear Storage Box |
| 20 | 715002638 | Rear Storage Box Cover |
| 30 | 708300511 | Rear Panel |
| 35 | 707002102 | Heat Shield |
| 36 | 707002294 | Heat Shield |
| 37 | 707002295 | Heat Shield |
| 38 | 707002296 | Heat Shield |
| 39 | 707002297 | Heat Shield |
| 50 | 708201250 | Handle Latch This part replaces 708200272. |
| 90c | 529000085 | Socket Wrench 14/16MM |
| 90g | 529000021 | Screw Driver |
| 160 | 529000035 | Adjustment Wrench |
| 310 | 715007915 | Rear Bumper Ass'y This part replaces 715002242. |
| 340 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 350 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 400 | 250100198 | Panel Nut M6 X 1.0 |
| 410 | 250000807 | Torx Truss Screw M6 X 25 |
| 420 | 705006997 | LH Cargo Support |
| 430 | 705006998 | RH Cargo Support |
| 440 | 207662044 | Hex. Flange Screw M6 X 20 |
| 445 | 207662544 | Hex. Flange Screw M6 X 25 |
| 465 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 470 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 475 | 207661634 | Hex. Flange Screw M6 X 16 |
| 480 | 705004563 | LH Support |
| 490 | 705004564 | RH Support |
| 500 | 207682044 | Hex. Flange Screw M8 X 20 |
| 510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 515 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 520 | 293150230 | Tuflok Plastic Rivet |
| 540 | 705004806 | Plate Support |
| 560 | 205951046 | Socket Head Screw M5 X 10 |
| 565 | 206252044 | Socket Set Screw M5 X 20 |
| 600c | 708200274 | Latch |
| 600d | 269501945 | Clip |
