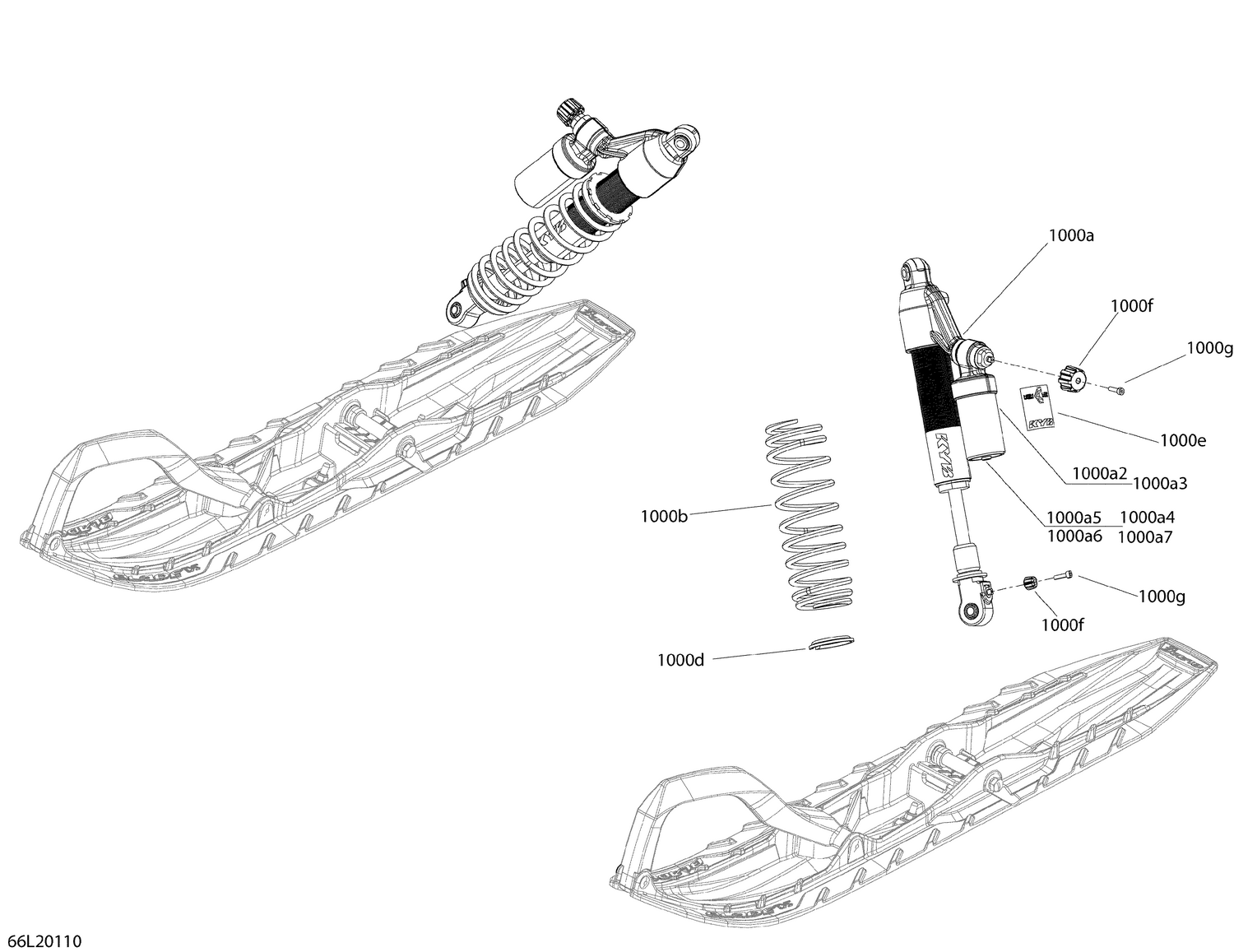

07- Suspension, Front - Shocks
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 505074417 | LH Front Shock Kashima |
| 1000a | 505074418 | RH Front Shock Kashima |
| 1000a2 | 415093807 | O-Ring |
| 1000a3 | 415093806 | Piston Ring |
| 1000a4 | 505070398 | Air Valve |
| 1000a5 | 505070399 | Screw |
| 1000a6 | 505070400 | O-Ring |
| 1000a7 | 415093804 | O-Ring |
| 1000b | 505074548 | Black, Spring 280 MM 22 N/MM |
| 1000d | 503194270 | Spring Stopper |
| 1000e | 516008320 | Shock Adjustment Decal KYB |
| 1000f | 505072753 | Adjustment Knob |
