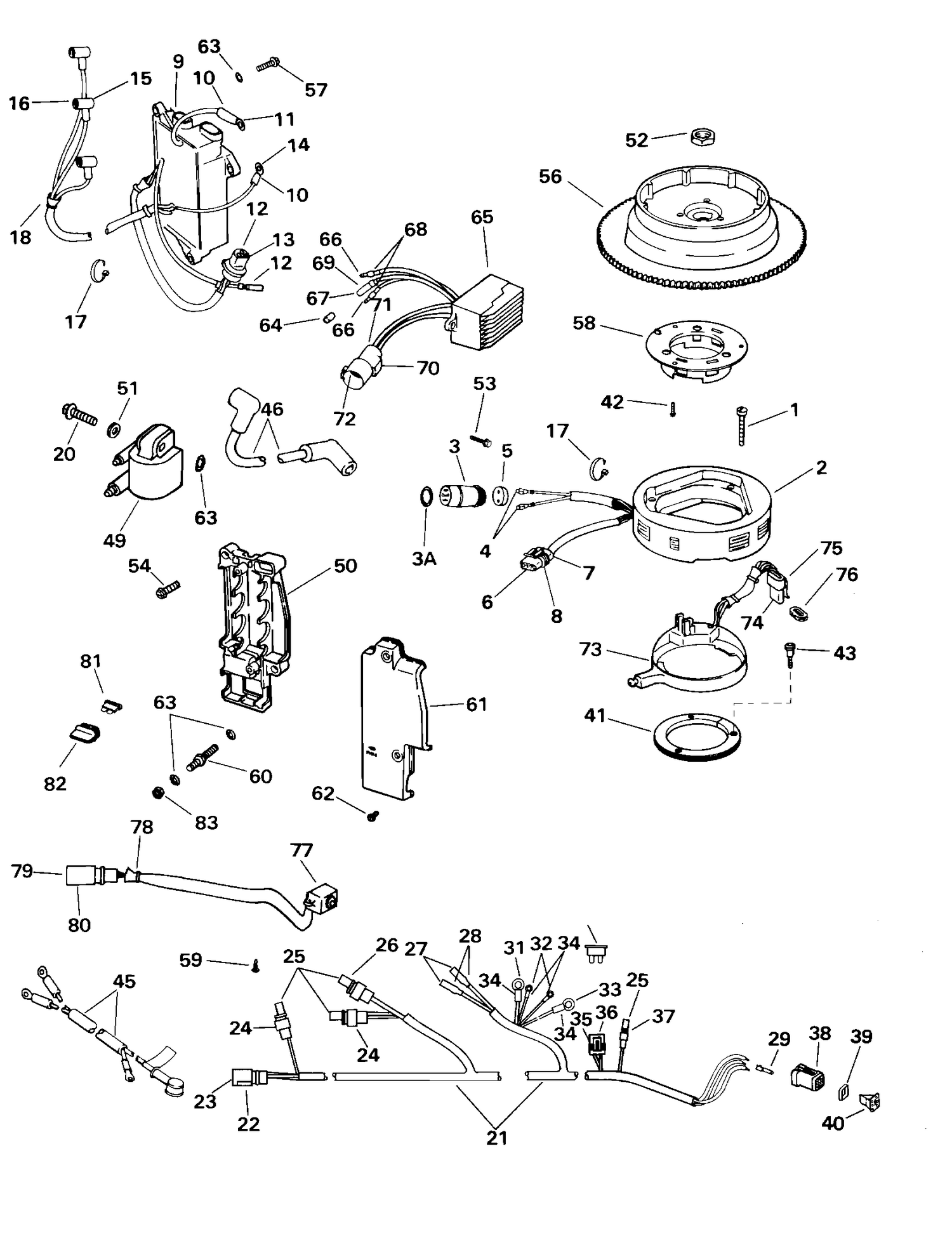

IGNITION SYSTEM - TEL
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0586472 | POWER PACK |
| 17 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 41 | 0340842 | SENSOR SUPPORT |
| 42 | 0335739 | SCREW, Conn. brkt. to mntg. brkt. |
| 43 | 0340867 | SCREW, Sensor support |
| 45 | 0584381 | CÂBLE DE BATTERIE |
| 46 | 0584925 | LEAD ASSY., Ignition coil |
| 49 | 0586323 | COIL ASSY. |
| 56 | 0584820 | FLYWHEEL ASSY. |
| 58 | 0514372 | ENCODER |
| 59 | 0514654 | SCREW, Warning system |
| 64 | 0328074 | CACHE, cosse prise |
| 73 | 0584824 | SENSOR ASSY. |
| 77 | 0584827 | WARNING SYSTEM |
