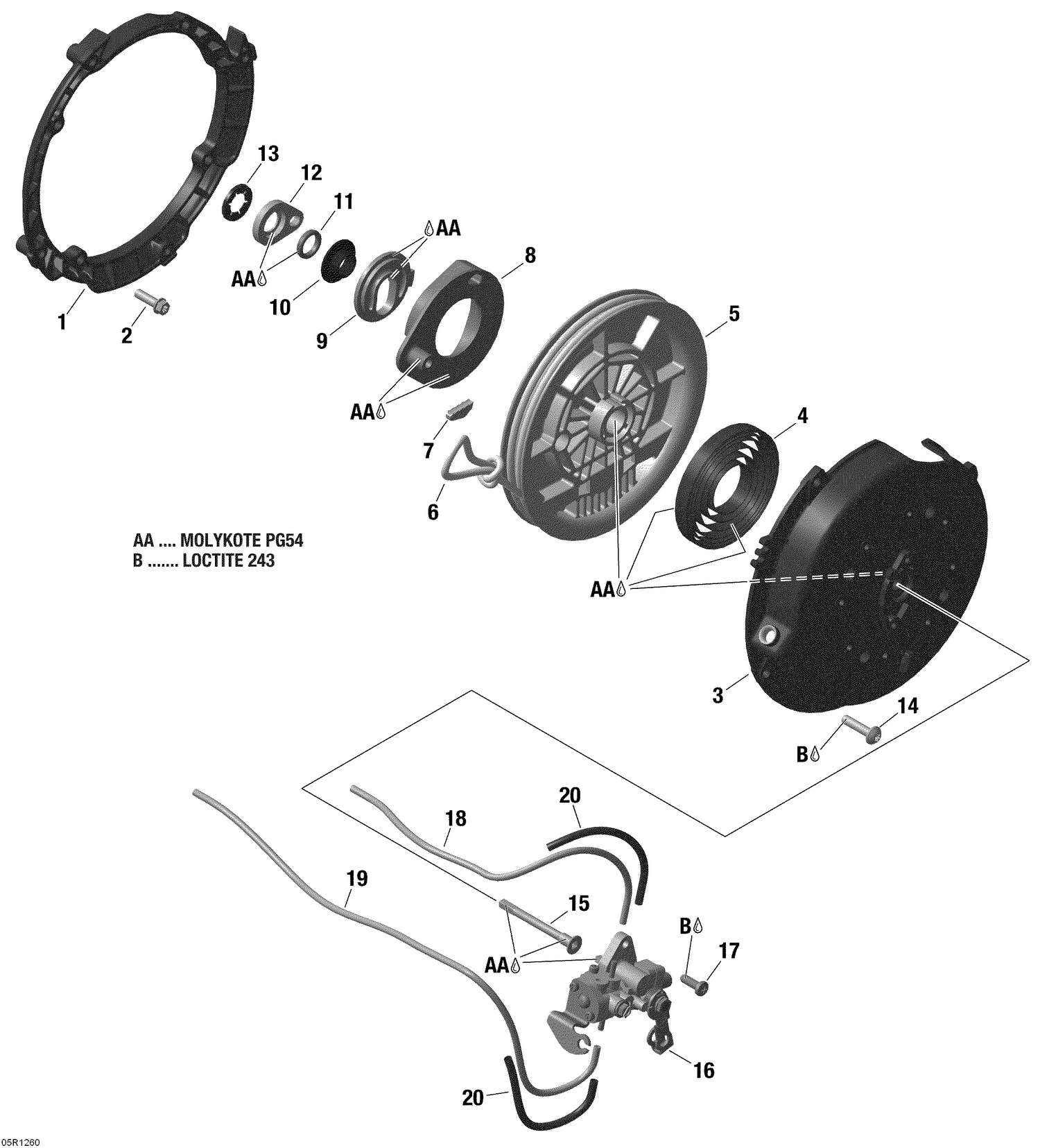

04- Rewind Starter And Oil Pump
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| 1 | 420810955 | Flange Connector |
| 2 | 420440207 | Flanged Torx Screw M6X20-SW8/T30 |
| 3b | Not | Available As Spare Part - Rewing Starter Housing |
| 4 | 420939115 | Rewind Spring Ass'y |
| 5 | 420852480 | Rope Sheave |
| 6 | 412500200 | Starter Rope, Meter |
| 7 | 420852070 | Key Clamp |
| 8 | 420852296 | Pawl |
| 9 | 420852640 | Pawl Lock This part replaces 420852308. |
| 10 | 420847926 | Stage Sleeve |
| 11 | 420250400 | O-Ring |
| 12 | 420852520 | Lock Ring |
| 13 | 420845560 | Locking Element |
| 14 | 420940431 | Screw |
| 15 | 420820090 | Oil Pump Shaft |
| 16 | 420892291 | Oil Pump |
| 17 | 420841971 | Screw |
| 18 | 414413800 | Oil Hose |
| 19 | 414413800 | Oil Hose |
| 20 | 420960728 | Isolation Line |
