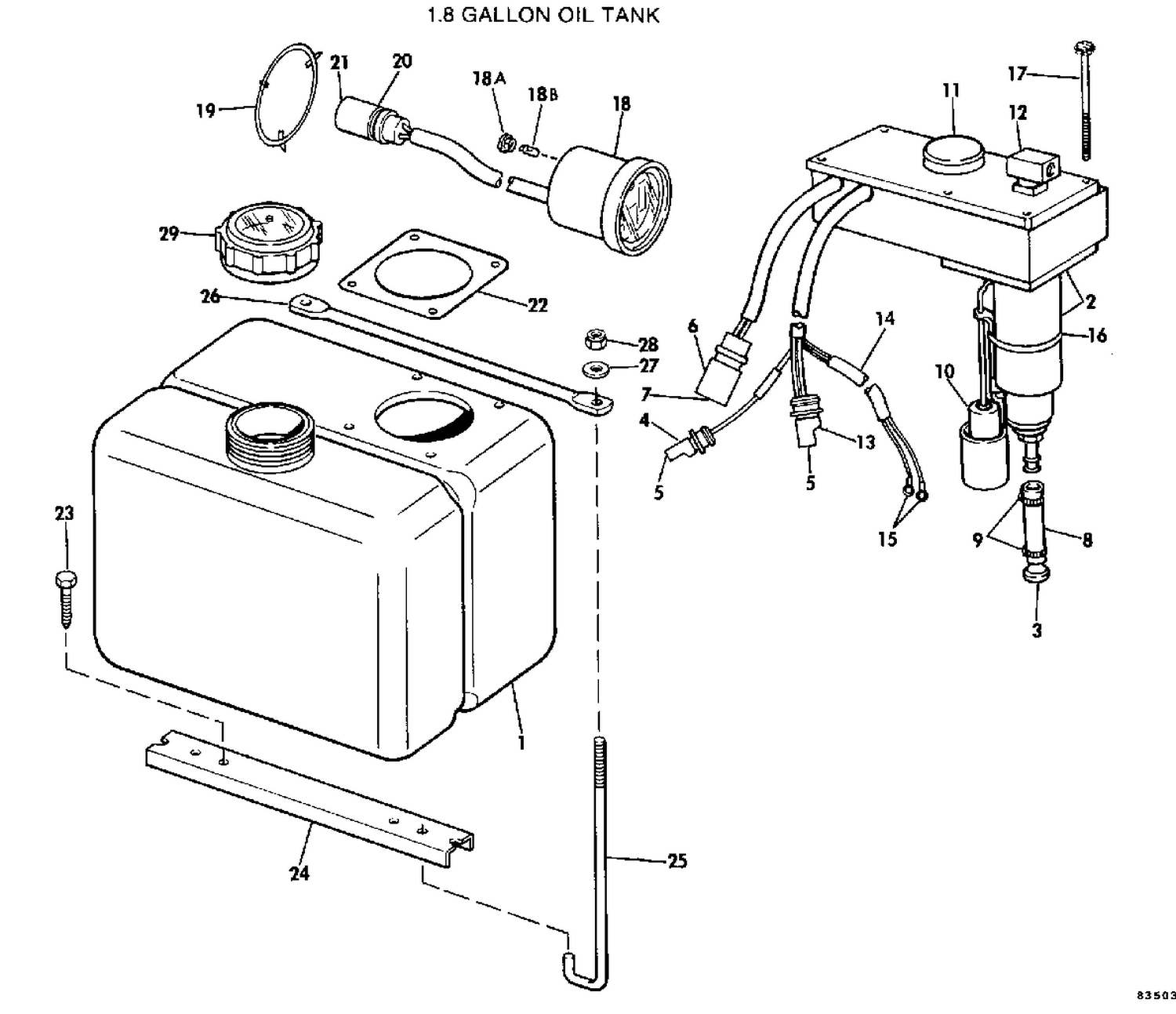

ECONOMIXER 1.8 GALLON OIL TANK
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0174118 | OIL PUMP ASSY. |
| 3 | 0123905 | FILTER |
| 4 | 0511989 | CONNECTOR |
| 6 | 0511449 | COMMECTOR, Coil to power pack |
| 8 | 0124296 | HOSE, Oil pickup |
| 9 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 | 0173994 | FLOAT ASSY. |
| 11 | 0123990 | CAP |
| 12 | 0123941 | FITTING, Oil line |
| 16 | 0610997 | TIE STRAP |
| 17 | 0124298 | SCREW |
| 18 | 0173875 | INSTRUMENT ASSY., Oil flow |
| 19 | 0123550 | LOCKING RING |
| 25 | 0124291 | HOOK BELT |
| 26 | 0124290 | CROSS BAR |
| 0174046 | 0174046 | ECONOMIXER ASSY., With 1.8 gallon oil tank |
