Home / BRP / 2000 / Formula / Formula 500 LC, 2000 / 01- Cylinder, Exhaust Manifold

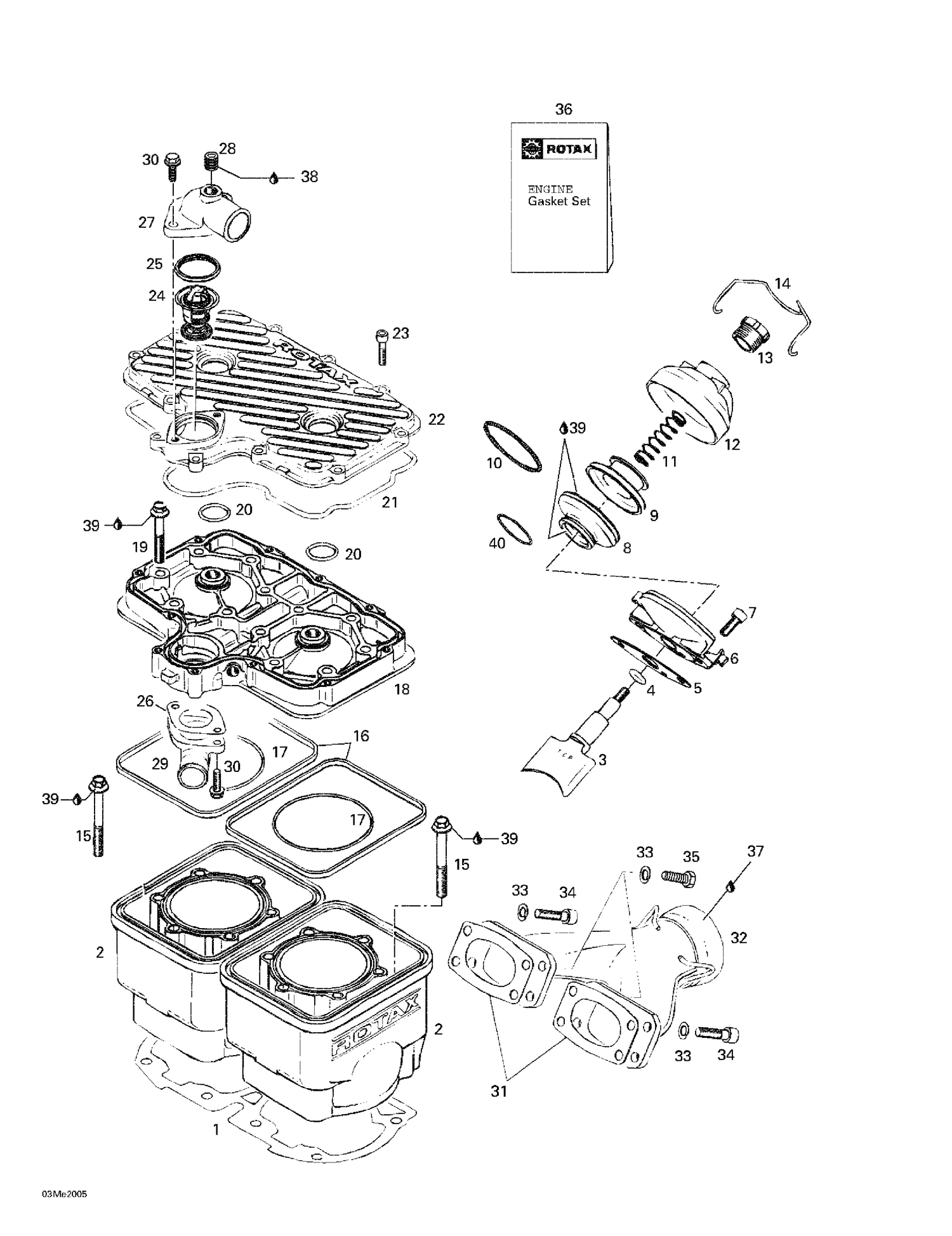

01- Cylinder, Exhaust Manifold

01- Cylinder, Exhaust Manifold

Parts (39)

RefPart NumberDescription
1 420931361 Gasket Double 0.4 mm
2 420923617 Cylinder With Sleeve Ass'y
3 420854300 EXHAUST VALVE - Call your local BRP dealership
4 420430110 O-Ring
5 420250239 Gasket
6 420854265 Valve Housing
7 420241237 Socket Head Screw M6 x 16 This part replaces 420241236.
8 420260723 Exhaust Bellows This part replaces 290260723.
9 420854449 Exhaust Valve This part replaces 420854447.
10 420939281 Hose Spring This part replaces 290239048.
11 420239954 Spring This part replaces 420239944.
12 420911552 Valve Cover This part replaces 420911551.
13 420241221 Adjuster Screw This part replaces 420241220.
14 420838083 SPRING CLIP - Call your local BRP dealership This part replaces 420838082.
15 420640959 Collar Hex Screw M8 X 68.5 This part replaces 420841996.
16 420850040 RUBBER RING - Call your local BRP dealership
17 420831792 O-Ring
18 420923167 Cylinder Head (Silver)
19 420240326 Hex. Flange Screw M8 X 53.5
20 420430782 O-Ring
21 420931260 O-Ring
22 420923623 Cylinder Head Cover (Silver)
23 205062544 Socket Head Screw M6 X 25
24 420922519 Thermostat This part replaces 414834100.
25 420931270 SEALING RING - Call your local BRP dealership
26 420850339 Gasket This part replaces 420850338.
27 420922061 BENT OUTLET SOCKET - Call your local BRP dealership
28 420240480 PLUG SCREW - Call your local BRP dealership
29 420922480 Bent Outlet Socket
30 420941251 SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
31 420850535 Gasket
32 420973228 Exhaust Manifold
33 234181401 Lock Washer 8 mm
34 205083044 Socket Head Screw M8 X 30
35 207182544 Hex. Screw M8 X 25
36 420994227 Gasket Set
37 293800090 Sealant, Loctite, 80 ml This part replaces 413710300.
38 219704462 ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership
39 413707000 Dow Corning 111, 150 g
