| Ref | Part Number | Description |
|---|
| 1 |
3854011 |

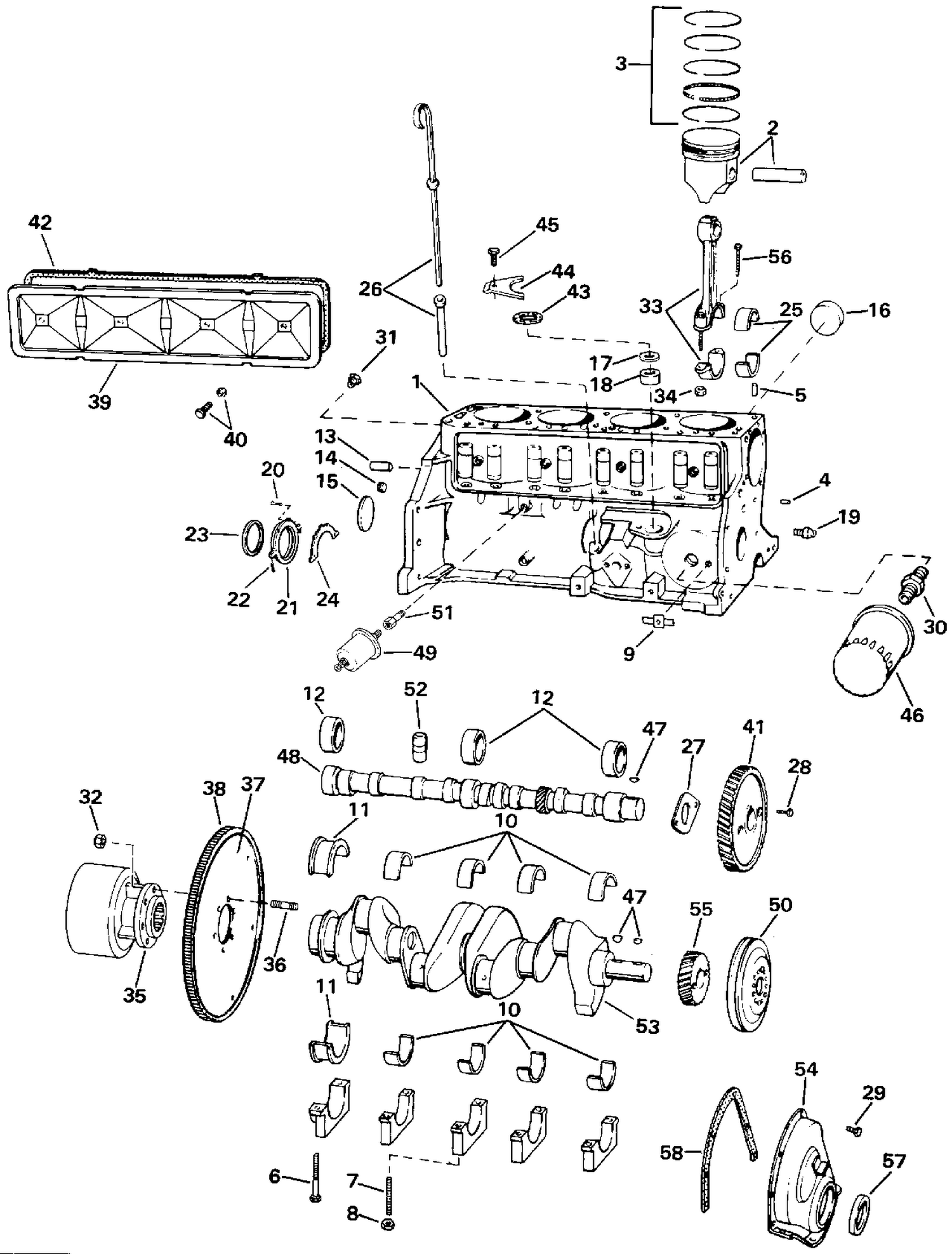

CRANKCASE ASSEMBLY This part replaces 0986752. |
| 2 |
3853340 |
PISTON & PIN, Standard This part replaces 0914816. |
| 2 |
3853476 |
PISTON & PIN, 0.001 in. O.S. This part replaces 0915235. |
| 2 |
3853477 |
PISTON & PIN, 0.020 in. O.S. This part replaces 0915236. |
| 3 |
0912093 |
RING SET, 0.02 O.S. |
| 3 |
3853960 |
PISTON RING SET, Standard This part replaces 0986336. |
| 4 |
3852743 |
PLUG, Oil gallery, front hole This part replaces 0913606. |
| 5 |
3853114 |
DOWEL PIN, Cylinder head This part replaces 0914302. |
| 6 |
3852933 |
BOLT, Main cap This part replaces 0913941. |
| 7 |
3853111 |
STUD, #3 bearing cap This part replaces 0914299. |
| 8 |
3853134 |
NUT, Oil pan baffle This part replaces 0914326. |
| 9 |
3853103 |
VALVE ASSY, Bypass This part replaces 0914233. |
| 10 |
3853116 |
BRG ASSY, Exc rear, standard This part replaces 0914304. |
| 10 |
3853117 |
BRG ASSY, Exc rear, 0.001 in. U.S. This part replaces 0914305. |
| 10 |
3853118 |
BRG ASSY, Exc rear, 0.010 in. U.S. This part replaces 0914307. |
| 10 |
3853119 |
BRG ASSY, Exc rear, 0.020 in. U.S. This part replaces 0914308. |
| 10 |
3853120 |
BRG ASSY, Exc rear, 0.030 in. U.S. This part replaces 0914309. |
| 11 |
3853121 |
BRG ASSY, Rear, standard This part replaces 0914310. |
| 11 |
3853122 |
BRG ASSY, Rear, 0.001 in. U.S. This part replaces 0914311. |
| 11 |
3853123 |
BRG ASSY, Rear, 0.002 in. U.S. This part replaces 0914312. |
| 11 |
3853124 |
BRG ASSY, Rear, 0.010 in. U.S. This part replaces 0914313. |
| 11 |
3853125 |
BRG ASSY, Rear, 0.020 in. U.S. This part replaces 0914314. |
| 11 |
3853126 |
BRG ASSY, Rear, 0.030 in. U.S. This part replaces 0914315. |
| 12 |
3852829 |
BRG, Camshaft This part replaces 0913780. |
| 13 |
3853113 |
DOWEL PIN This part replaces 0914301. |
| 15 |
3852851 |
PLUG, Camshaft bearing hole This part replaces 0913818. |
| 16 |
0311376 |
CORE PLUG, Side |
| 16 |
0311377 |
CORE PLUG, Rear |
| 17 |
3853112 |
THRUST WASHER This part replaces 0914300. |
| 18 |
3853115 |
BEARING, Shaft pilot This part replaces 0914303. |
| 19 |
3853067 |
NOZZLE, Timing gear oil This part replaces 0914197. |
| 20 |
3853339 |
BOLT, Rear seal retainer This part replaces 0914815. |
| 21 |
3855820 |
RETAINER, Crankshaft seal This part replaces 0914412. |
| 22 |
3853202 |
STUD, Oil pan This part replaces 0914413. |
| 23 |
3852657 |
OIL SEAL, Crankshaft, rear This part replaces 0912957. |
| 24 |
3852656 |
GASKET, Rear seal retainer This part replaces 0912956. |
| 25 |
3853149 |
BEARING, Rod, standard This part replaces 0914342. |
| 25 |
3853150 |
BEARING, Rod, 0.001 in. U.S. This part replaces 0914343. |
| 25 |
3853151 |
BEARING, Rod, 0.002 in. This part replaces 0914344. |
| 25 |
3853153 |
BEARING, Rod, 0.020 in. This part replaces 0914346. |
| 25 |
3856117 |
BEARING, Rod, 0.010 in. U/S This part replaces 0914345. |
| 26 |
3850524 |
OIL LEVEL GAUGE & TUBE ASSY This part replaces 0381927. |
| 27 |
3853136 |
BEARING, Thrust unit This part replaces 0914328. |
| 28 |
3852441 |
SCREW & LOCK WASHER This part replaces 0908407. |
| 29 |
3852441 |
SCREW & LOCK WASHER This part replaces 0908407. |
| 30 |
0311072 |
CONNECTOR, Oil adaptor |
| 31 |
0909601 |
PLUG, Manifold |
| 32 |
3853273 |
LOCKNUT, Coupler This part replaces 0914565. |
| 33 |
3853785 |
CONNECTING ROD & CAP ASSY This part replaces 0980505. |
| 34 |
3853148 |
NUT, Connecting rod This part replaces 0915026. |
| 35 |
3854032 |
COUPLER, Flywheel This part replaces 0986917. |
| 36 |
3853274 |
STUD, Coupler This part replaces 0914566. |
| 37 |
3854013 |
FLYWHEEL ASSY This part replaces 0986754. |
| 38 |
3853143 |
GEAR, Flywheel This part replaces 0914336. |
| 39 |
3853138 |
COVER, Push rod This part replaces 0914330. |
| 40 |
3853955 |
BOLT & SEAL ASSY This part replaces 0986318. |
| 41 |
3852452 |
GEAR, Camshaft timing This part replaces 0908613. |
| 42 |
3852692 |
GASKET, Push rod cover This part replaces 0913276. |
| 43 |
3852660 |
GASKET, Distributor This part replaces 0912980. |
| 44 |
3853142 |
CLAMP, Distributor This part replaces 0914334. |
| 45 |
0306539 |
BOLT, Distributor |
| 46 |
0173232 |
OIL FILTER |
| 47 |
3852663 |
KEY, Crankshaft This part replaces 0912990. |
| 48 |
0908610 |
CAMSHAFT ASSEMBLY This part replaces 0914818. |
| 49 |
3853800 |
OIL PRESSURE SENDER This part replaces 0982650. |
| 50 |
3852662 |
DAMPER, Crankshaft pulley This part replaces 0912987. |
| 51 |
3853400 |
FITTING, Oil pressure This part replaces 0915009. |
| 52 |
3854033 |
LIFTER ASSY. This part replaces 0986926. |
| 53 |
3853338 |
CRANKSHAFT ASSY This part replaces 0914814. |
| 54 |
3853135 |
COVER ASSY, Crankshaft, front This part replaces 0914327. |
| 55 |
3852661 |
GEAR, Crankshaft This part replaces 0912983. |
| 56 |
3853144 |
BOLT, Connecting rod This part replaces 0914337. |
| 57 |
3853341 |
SEAL, Front cover This part replaces 0914817. |
