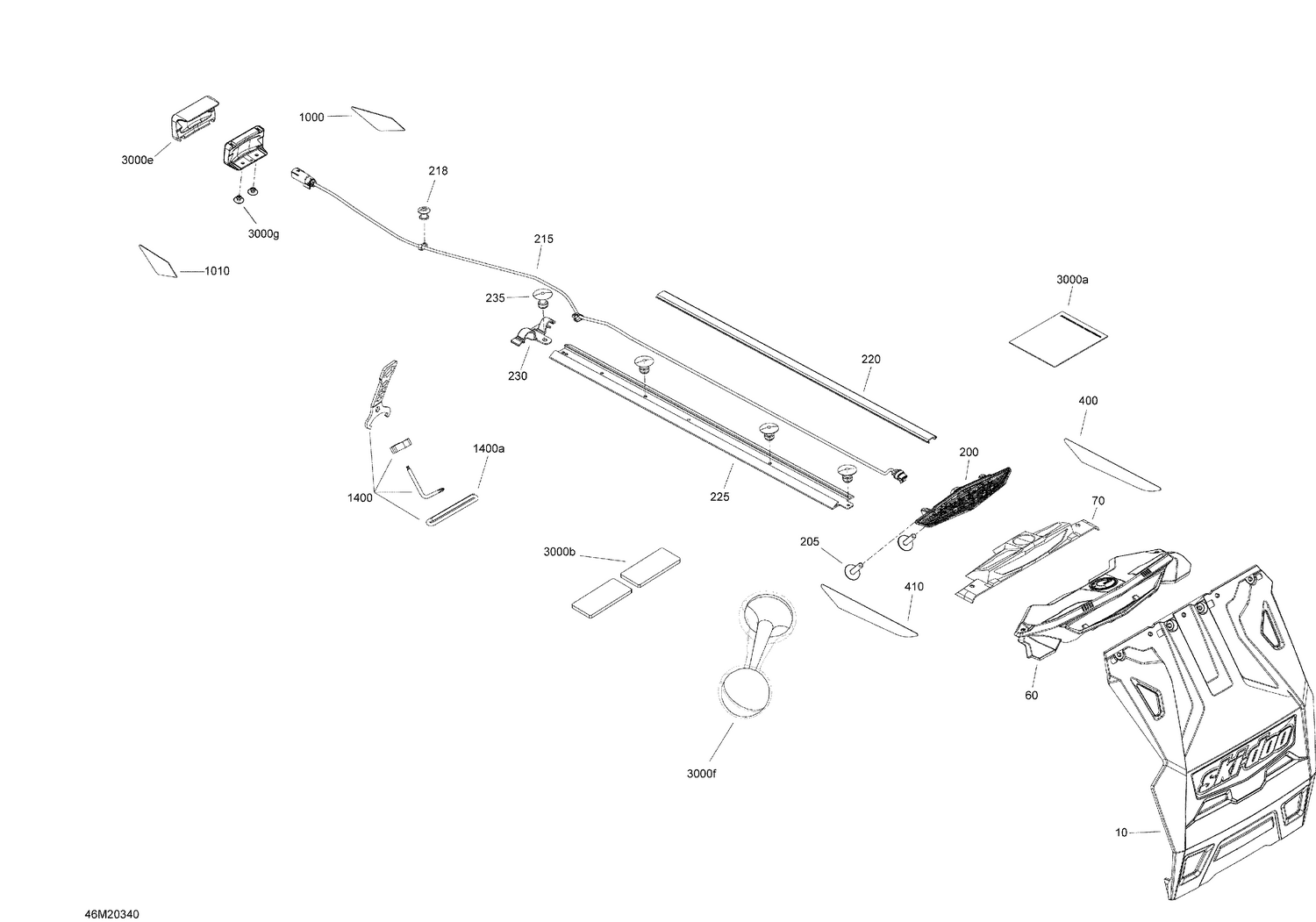

10- Utilities
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001481 | Snow Gard |
| 200 | 520001143 | Rear Light |
| 205 | 250000725 | Screw M4 X 16 |
| 218 | 390402200 | Pop Rivet 3/16" |
| 220 | 520002921 | Extruded Trim This part replaces 520001719. |
| 225 | 520002930 | Grommet This part replaces 520001703. |
| 230 | 520001722 | Cap |
| 235 | 293150104 | Pop Rivet 3/16" |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 1000 | 520002343 | RH Front Reflector This part replaces 520001493. |
| 1010 | 520002344 | LH Front Reflector This part replaces 520001494. |
| 1400a | 529017500 | Rope Starter |
| 3000a | 219400038 | Waranty Registration Form |
| 3000b | 520000271 | Amber, Reflector |
| 3000e | 520000871 | Deep Black, Reflector Support |
| 3000f | 549011291 | Horn |
