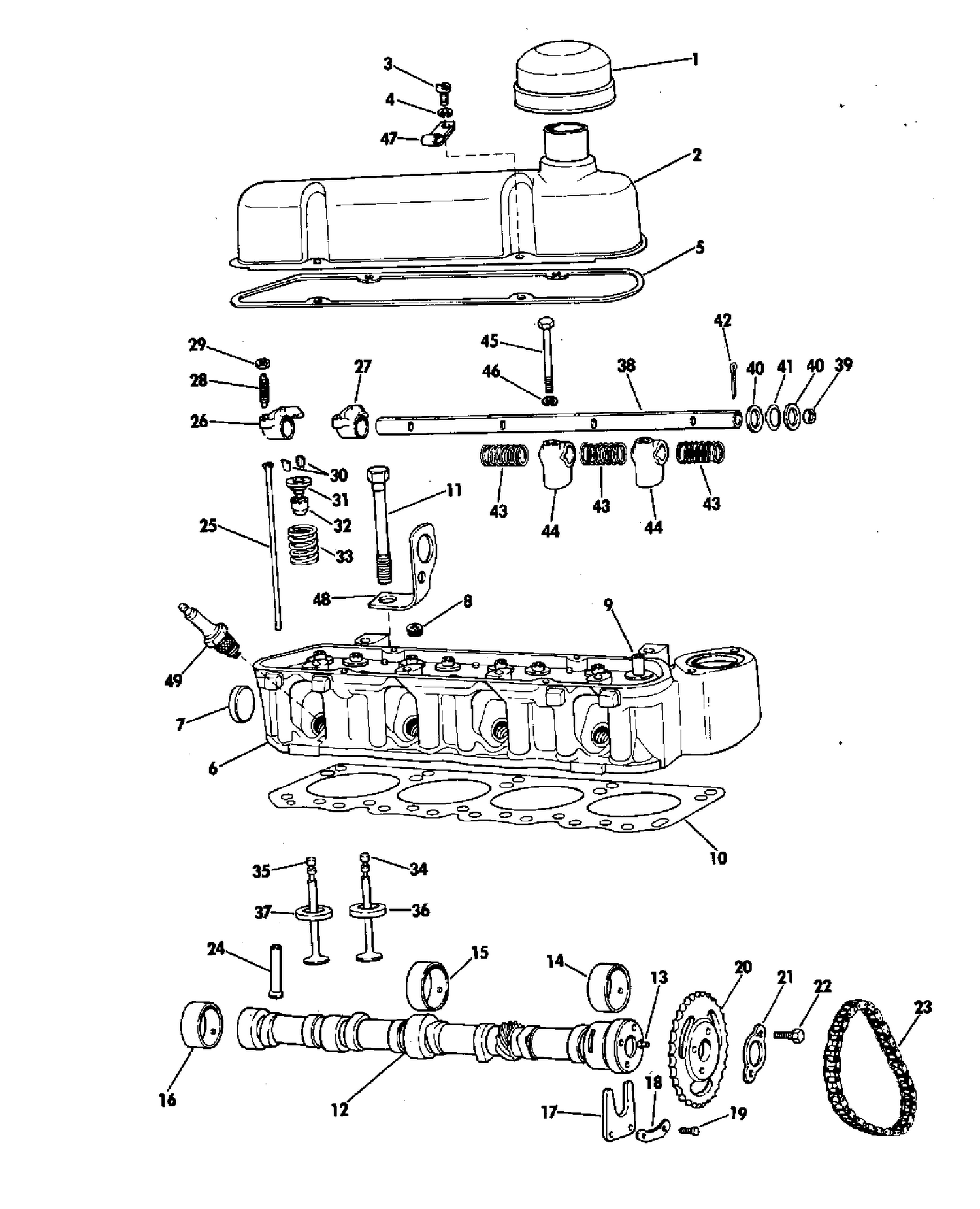

| Ref | Part Number | Description |
|---|
| 1 |
105E-6766 |
CAP, Oil fill |
| 2 |
105E-6450-B |
COVER,Valve rocker |
| 3 |
50527-S7/8 |
SCREW, Cover to head |
| 4 |
118297-ES2 |
WASHER, Cover screw |
| 5 |
105E-6584 |
GASKET,Valve cover |
| 6 |
0383604 |
CYLINDER HEAD ASSEMBLY |
| 7 |
0311376 |
CORE PLUG, Side |
| 8 |
358063-ESD |
PLUG, Clyinder head |
| 9 |
105E-6510-A |
BUSHING,Valve guide |
| 10 |
116E-6051-B |
GASKET,Cylinder head |
| 11 |
EOTA-6065-A |
BOLT, Cylinder head |
| 12 |
116E-6250 |
CAMSHAFT |
| 13 |
E93A-6253 |
DOWEL, Camshaft to sprocket |
| 14 |
105E-6261E |
BEARING, Camshaft, front, std. I.D.-std. O.D. |
| 14 |
105E-6261F |
BEARING, Camshaft, front, std. I.D. - .020" O/S O.D. |
| 15 |
105E-6262E |
BEARING , Camshaft, center, std. I.D. - std . O.D. |
| 15 |
105E-6262F |
BEARING, Camshaft, center std. I.D. - .020" O /S O.D. |
| 16 |
105E-6263E |
BEARING, Camshaft, rear std. I.D. std. O.D. |
| 16 |
105E-6263F |
BEARING, Camshaft, rear, std. I.D.-.020" O/S |
| 17 |
105E-6269 |
PLATE, Camshaft thrust |
| 18 |
105E-6255 |
RETAINER, Bolt |
| 19 |
20324-S7/8 |
BOLT, Tensioner to block |
| 20 |
105E-6256-B |
SPROCKET, Camshaft |
| 21 |
105E-6258 |
RETAINER, Sprocket to dowel |
| 22 |
20326-S7/8 |
BOLT, Retainer to sprocket |
| 23 |
105E-6270-B |
CHAIN, Camshaft |
| 24 |
105E-6500-A |
TAPPET, Valve |
| 25 |
116E-6488 |
PUSH ROD |
| 26 |
105E-6469-A |
ROCKER ARM, L.H. |
| 27 |
105E-6468-A |
ROCKER ARM, R.H. |
| 28 |
105E-6486-A |
SCREW, Valve adjusting |
| 29 |
33923-S7/8 |
NUT, Adjusting screw |
| 30 |
EOTA-6518-A |
LOCK,Spring retainer |
| 31 |
105E-6514 |
RETAINER, Spring |
| 32 |
105E-6571 |
SEAL, Valve stem |
| 33 |
109E-6513 |
SPRING, Valve |
| 34 |
116E-6507-D |
INTAKE VALVE,Std |
| 34 |
116E-6507-E |
INTAKE VALVE,.003" o/s,stem |
| 34 |
116E-6507-F |
INTAKE VALVE,.015" o/s,stem |
| 35 |
116E-6505-A |
EXHAUST VALVE,.003"o/s,stem |
| 35 |
116E-6505-C |
EXHAUST VALVE,.015" o/s,stem |
| 36 |
116E-6056-A |
INSERT,Inlet seat,std |
| 36 |
116E-6056-B |
INSERT,Inlet seat,.010" o/s o.d. |
| 36 |
116E-6056-C |
INSERT,Inlet seat,.010" o/s o.d.& depth |
| 36 |
116E-6056-D |
INSERT,Inlet seat,.020" o/s o.d. |
| 36 |
116E-6056-E |
INSERT,Inlet seat,.020" o/s o.d.& depth |
| 37 |
105E-6057-A |
INSERT, Exh. seat, std. |
| 37 |
105E-6057-B |
INSERT, Exh. seat, .010" O/S O.D. |
| 37 |
105E-6057-C |
INSERT, Exh. seat, .010" O/S O.D. & depth |
| 37 |
105E-6057-D |
INSERT, Exh. seat, .020" O/S O.D. |
| 37 |
105E-6057-E |
INSERT, Exh. seat, .020" O/S O.D. & depth |
| 38 |
105E-6563-B |
SHAFT, Rocker arm |
| 39 |
357966-S |
EXPANSION PLUG SHAFT |
| 40 |
116106-ES100 |
WASHER, Flat |
| 41 |
116105-ES100 |
WASHER, Spring |
| 42 |
72025-S7/8 |
COTTER PIN, Shaft |
| 43 |
105E-6466 |
SPRING, Shaft |
| 44 |
105E-6531-B |
SUPPORT, Shaft |
| 45 |
113864-ES2 |
BOLT,Shaft to head |
| 46 |
E93A-18097 |
WASHER, Shaft bolt |
| 47 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 48 |
0314062 |
LIFT BRACKET CYLINDER HEAD |
| 49 |
0383170 |
SPARK PLUG, Champion N-9Y |
