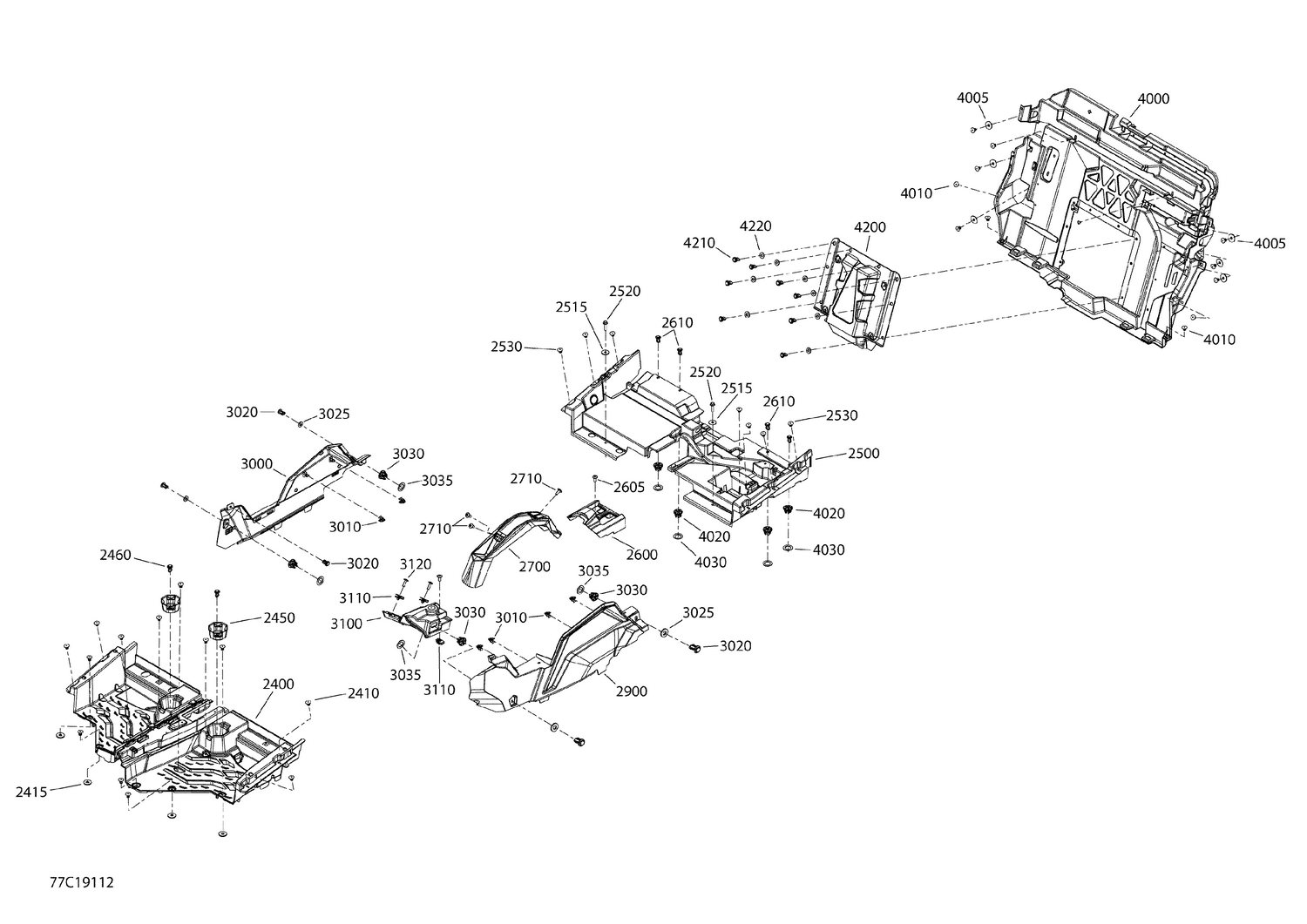

09- Cab Interior Maverick Sport - Rear Section
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 2400 | 707900533 | Front Floor |
| 2410 | 293150104 | Pop Rivet 3/16" |
| 2415 | 250200025 | Washer M5 |
| 2450 | 707900532 | Cup Holder |
| 2460 | 293150230 | Tuflok Plastic Rivet |
| 2500 | 707900534 | Rear Floor |
| 2515 | 250200162 | Flat Washer M6.6 X 22 |
| 2520 | 207662554 | Hex. Flange Screw M6 X 25 |
| 2530 | 293150104 | Pop Rivet 3/16" |
| 2600 | 707900538 | Belt Cover |
| 2605 | 250000721 | Torx Truss Screw M6 X 16 |
| 2610 | 293150230 | Tuflok Plastic Rivet |
| 2700 | 707900537 | Central Console |
| 2710 | 250000721 | Torx Truss Screw M6 X 16 |
| 2900 | 715005013 | LH Lateral Console Panel |
| 3000 | 707901077 | RH Lateral Console Panel This part replaces 707900540. |
| 3010 | 517306478 | Clip |
| 3020 | 293150230 | Tuflok Plastic Rivet |
| 3025 | 503192494 | Washer |
| 3030 | 707900133 | Insert |
| 3035 | 503189273 | Washer |
| 3100 | 707900545 | Passenger Footrest |
| 3110 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3120 | 250000722 | Torx Screw M6 X 20 |
| 4000 | 707900550 | Rear Bulkhead |
| 4005 | 250200044 | Flat Washer M6 X 25 |
| 4010 | 293150104 | Pop Rivet 3/16" |
| 4020 | 707900133 | Insert |
| 4030 | 503189273 | Washer |
| 4200 | 707900999 | Maintenance Cover This part replaces 707900552. |
| 4210 | 293150230 | Tuflok Plastic Rivet |
| 4220 | 503192494 | Washer |
