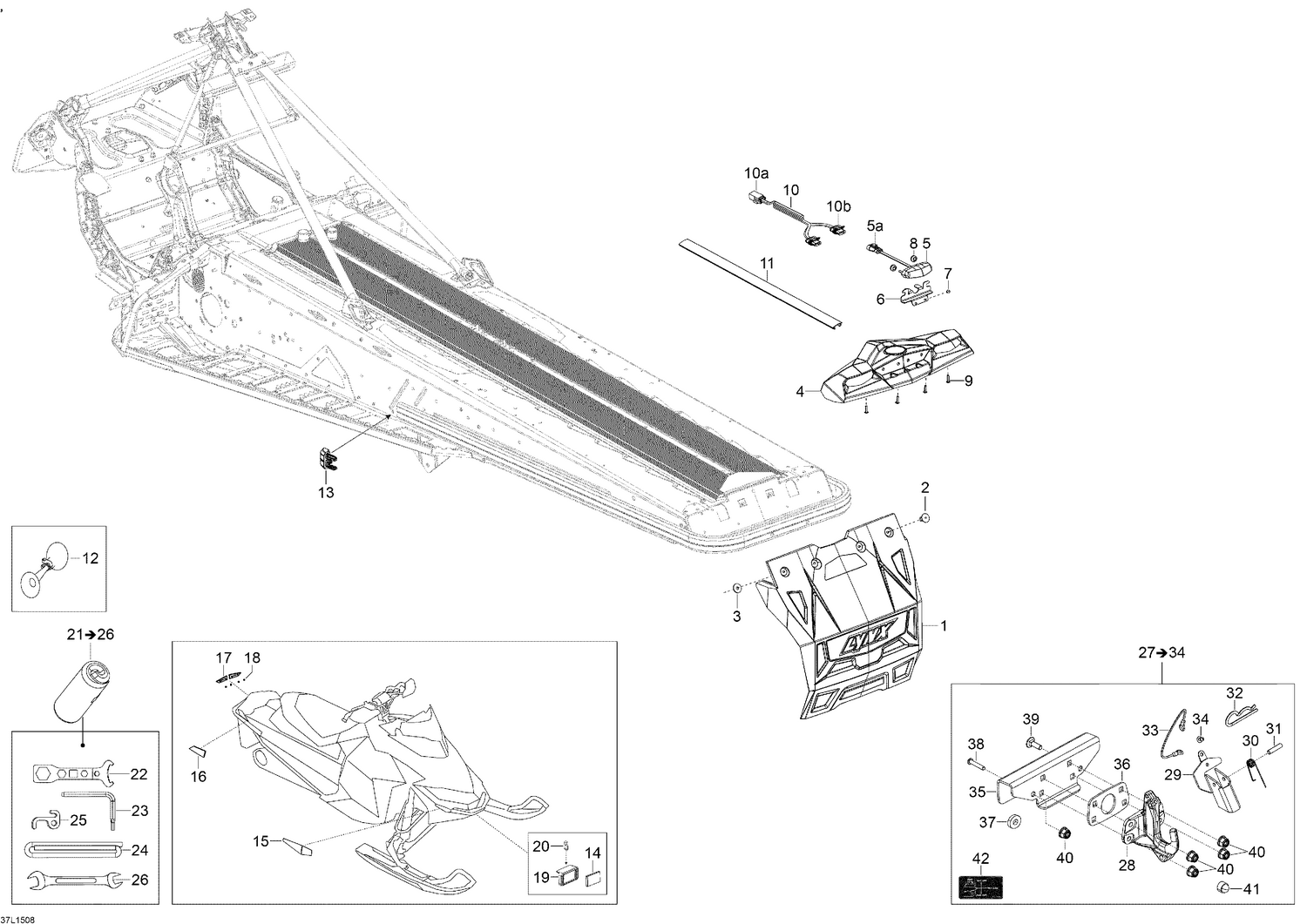

09- Utilities
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001512 | Snow Guard |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | 517124300 | Washer |
| 4 | 511000863 | Light Cover |
| 5 | 520001302 | Rear Light |
| 5a | 278001013 | Wire Seal |
| 5a | 409012900 | Male Terminal |
| 5a | 409013700 | Plug |
| 5a | 710000568 | Male terminal housing |
| 6 | 520001375 | Rear Light Support |
| 7 | 390909200 | Avex Rivet |
| 8 | 293720101 | Grommet |
| 9 | 250000759 | Torx Truss Pt K40 X 16 This part replaces 250000294. |
| 10 | 515177517 | Rear Light Harness |
| 10a | 515175232 | Male Terminal |
| 10a | 515175494 | Male Housing, 3 Circuits |
| 10b | 278001014 | Female Terminal |
| 10b | 409209600 | Female Housing, 3 Circuits |
| 11 | 520000829 | Trim |
| 12 | 549011291 | Horn |
| 13 | 520000964 | LH Cap |
| 13 | 520000965 | RH Cap |
| 14 | 21118 | Bright Reflector |
| 15 | 520001351 | Yellow RH Reflector |
| 15 | 520001352 | Yellow LH Reflector |
| 16 | 705007154 | Yellow RH Reflector |
| 16 | 705007155 | Yellow LH Reflector |
| 17 | 705007156 | Red RH Reflector |
| 17 | 705007157 | Red LH Reflector |
| 18 | 732610072 | Push Nut |
| 19 | 520000871 | Reflector Mount |
| 20 | 27120 | TIE RAP - Call your local BRP dealership |
| 22 | 520001442 | Wrench |
| 23 | 520001142 | Key |
| 24 | 412500200 | Starter Rope |
| 25 | 529000060 | Starter Grip |
| 26 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 28 | Not | Available As Spare Part - Hook |
| 29 | Not | Available As Spare Part - Locking Plate |
| 30 | Not | Available As Spare Part - Spring |
| 31 | 41012 | Spring Pin |
| 32 | 41029 | Cotter Pin |
| 33 | Not | Available As Spare Part - Retainer Cable |
| 34 | 390909100 | Avex Rivet |
| 35 | Not | Available As Spare Part - Hitch Support |
| 36 | Not | Available As Spare Part - Hitch Fastening Plate |
| 37 | 520001288 | Sleeve |
| 38 | 205484546 | Socket Screw M8 x 45 |
| 39 | 207782544 | Carriage Bolt M8 x 25 |
| 40 | 233281414 | Hex. Flange Elastic Nut M8 |
| 41 | 28056 | Cover |
