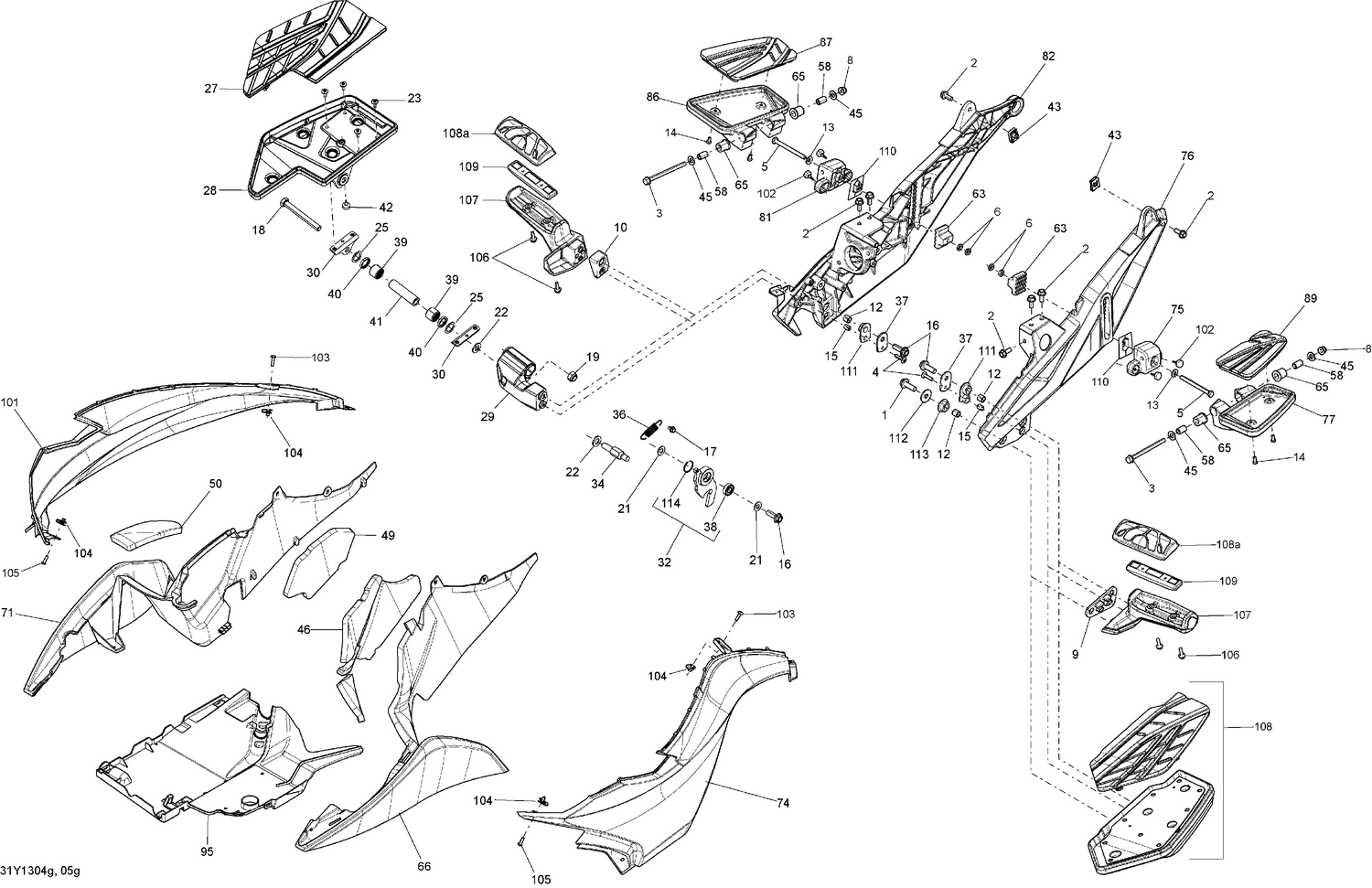

| Ref | Part Number | Description |
|---|
| 1 |
207503044 |
Hex. Screw M10 X 1.5 X 30 |
| 2 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 3 |
230681034 |
Hex. Flange Screw M8 X 110 |
| 4 |
XXX |
Not Available As Spare Parts |
| 5 |
207189060 |
Hex. Screw M8 x 90 |
| 6 |
232180600 |
Hex. Jam Nut M8 |
| 8 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
XXX |
Not Available As Spare Parts |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
234281704 |
Spring Washer M8 |
| 14 |
250000099 |
Allen Plastite Screw #12 |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip |
| 17 |
207561044 |
Flange Screw M6 X 10, Scotch Grip |
| 18 |
230020586 |
Hexagonal Screw M12 X 105 |
| 19 |
232521416 |
Elastic Stop Nut M12 |
| 21 |
234001410 |
Flat Washer 10 mm |
| 22 |
234021430 |
Flat Washer |
| 23 |
250000223 |
Torx Screw M6 X 16 |
| 25 |
250200136 |
Plastic Washer 20MM |
| 27 |
705005333 |
RH Front Rubber Pad |
| 28 |
705005334 |
RH FRONT FOOTREST ASS'Y - Call your local BRP dealership |
| 29 |
705005723 |
Pivot Support |
| 30 |
705005861 |
Pivot Bracket |
| 32 |
705008439 |
LATCH ASS'Y - Call your local BRP dealership This part replaces 705005367. |
| 34 |
705006428 |
Latch Pin M12 X 30 |
| 36 |
705006533 |
Spring |
| 37 |
705006557 |
Retaining Plate |
| 37 |
XXX |
Not Available As Spare Parts |
| 38 |
705600458 |
Bearing |
| 39 |
706000447 |
Bearing |
| 40 |
706000448 |
Seal, Single Lip ID 19.4 OD 26 |
| 41 |
706000731 |
Bushing |
| 42 |
708000759 |
Rubber Stopper |
| 43 |
250100069 |
Panel Nut M8 X 1.25 |
| 45 |
503183800 |
Washer |
| 46 |
518327010 |
LH ROCKER PANEL FOAM - Call your local BRP dealership |
| 49 |
518327011 |
RH ROCKER PANEL FOAM - Call your local BRP dealership |
| 50 |
518327438 |
RH LATERAL PANEL FOAM - Call your local BRP dealership |
| 58 |
705002153 |
Bushing |
| 63 |
705003013 |
Adjuster Block |
| 65 |
705003018 |
Rubber Bushing |
| 66 |
705005266 |
LH ROCKER PANEL - Call your local BRP dealership |
| 71 |
705005267 |
RH Rocker Panel |
| 75 |
XXX |
Not Available As Spare Parts |
| 76 |
705006796 |
LH REAR FOOT SUPPORT - Call your local BRP dealership |
| 77 |
705006798 |
LH REAR FOOTREST - Call your local BRP dealership |
| 81 |
705006801 |
BLACK RH SLIDING BLOCK - Call your local BRP dealership |
| 82 |
705007976 |
BLACK RH FOOTREST SUPPORT - Call your local BRP dealership This part replaces 705006794. |
| 86 |
705006800 |
Black RH Footrest Support |
| 87 |
705005350 |
RH REAR RUBBER PAD - Call your local BRP dealership |
| 89 |
705005351 |
LH REAR RUBBER PAD - Call your local BRP dealership |
| 95 |
705005413 |
LH DEFLECTOR PANNEL - Call your local BRP dealership |
| 102 |
708000759 |
Rubber Stopper |
| 103 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 104 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 105 |
250000661 |
Socket Screw M5 X 16 F/ |
| 106 |
XXX |
Not Available As Spare Parts |
| 107 |
705005330 |
LH Front Footrest Ass'y |
| 108 |
705005329 |
LH FRONT RUBBER PAD - Call your local BRP dealership |
| 108a |
705006297 |
LH FRONT RUBBER PAD - Call your local BRP dealership |
| 109 |
XXX |
Not Available As Spare Parts |
| 110 |
705007473 |
Lock Plate |
| 111 |
XXX |
Not Available As Spare Parts |
| 112 |
XXX |
Not Available As Spare Parts |
| 113 |
XXX |
Not Available As Spare Parts |
