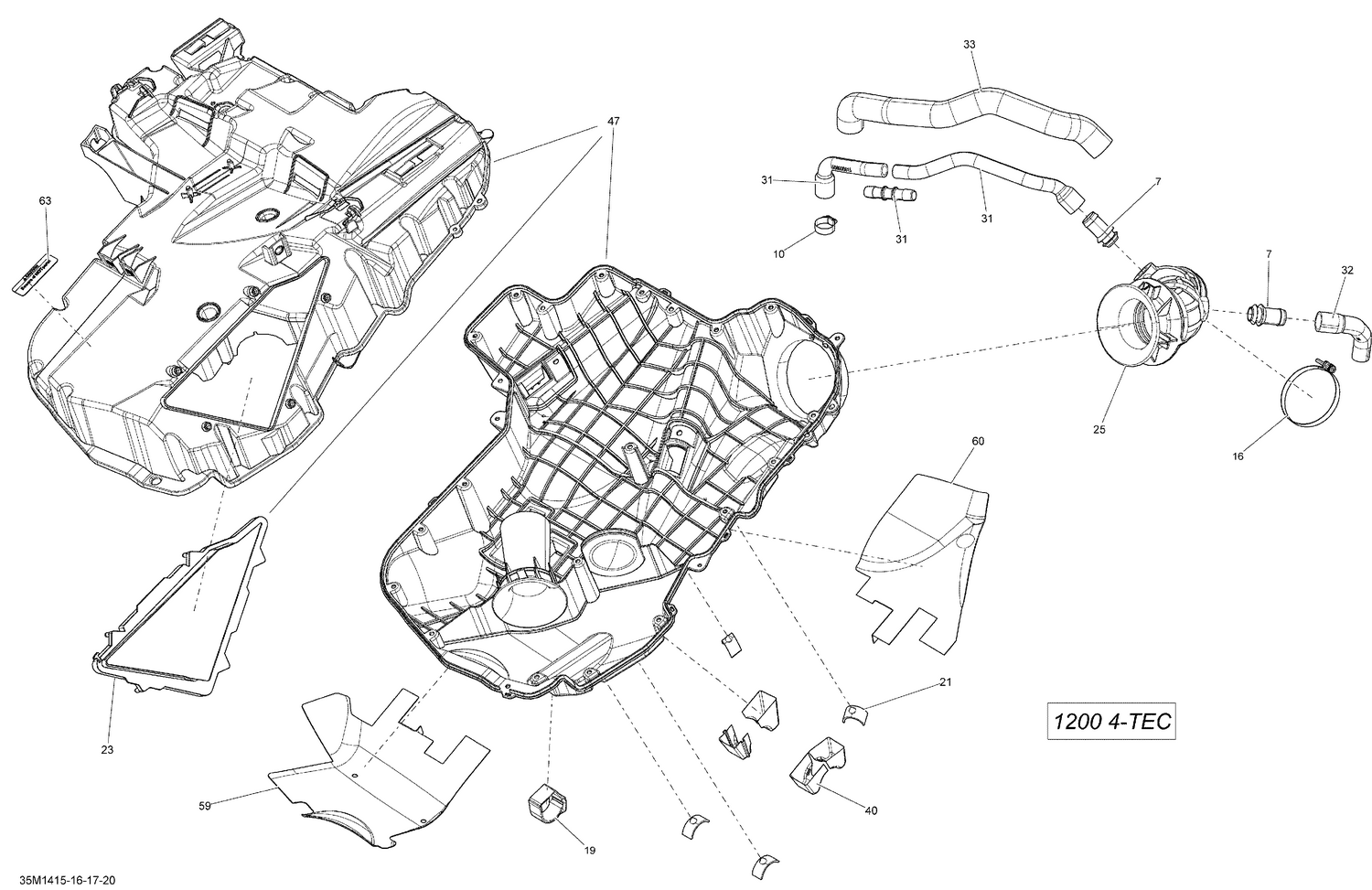

| Ref | Part Number | Description |
|---|
| 7 |
273000234 |
Breather Valve |
| 10 |
293650172 |
Tridon Gear Clamp |
| 16 |
508000346 |
Gemi Clamp |
| 19 |
508000820 |
Velcro Strip This part replaces 508000532. |
| 21 |
508000537 |
Stopper |
| 23 |
508000546 |
Air Filter |
| 25 |
508000549 |
INTAKE HOSE - Call your local BRP dealership |
| 31 |
508000615 |
VENT HOSE - Call your local BRP dealership |
| 32 |
508000616 |
FORMED HOSE - Call your local BRP dealership |
| 33 |
508000648 |
Tube Isolator |
| 40 |
508000677 |
Heat Shield |
| 47 |
508000778 |
Secondary Chamber Ass'y This part replaces 508000694. |
| 59 |
508000793 |
HEAT SHIELD - Call your local BRP dealership This part replaces 508000775. |
| 60 |
508000776 |
HEAT SHIELD - Call your local BRP dealership |
