| Ref | Part Number | Description |
|---|
| 3 |
0582508 |
COIL ASSY |
| 4 |
0329176 |
FIBER WASHER, Ignition coil |
| 5 |
0329241 |
RONDELLE |
| 6 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 12 |
0328726 |
SCREW (Use existing coil screw) |
| 13 |
0330151 |
CLAMP, Harness to oil tank boss |
| 14 |
0303212 |
VIS, collier & capot |
| 15 |
0511458 |
COLLIER, fils |
| 16 |
0511459 |
CACHE, fils |
| 17 |
0337522 |
VIS, ensemble bobine |
| 18 |
0329241 |
RONDELLE |
| 19 |
0329176 |
FIBER WASHER, Ignition coil |
| 20 |
0335220 |
SCREW, Bracket |
| 21 |
0585224 |
POWER PACK Assy |
| 30 |
0583387 |
SENSOR ASSEMBLY |
| 32 |
0512765 |
BRACKET |
| 34 |
0512743 |
DISPOSITIF DE RETENUE |
| 35 |
5000611 |
CHARGE COIL & LAM. ASSY. |
| 37 |
0584208 |
PLATE & SLEEVE Assy |
| 38 |
0511460 |
VIS, dispositif de retenue |
| 39 |
0396031 |
RETAINER & LINK ASSEMBLY |
| 40 |
0326876 |
CAM, Throttle control |
| 40 |
0334750 |
CAM, Throttle control |
| 41 |
0331036 |
VIS, attache de palier |
| 42 |
0323693 |
WASHER, Bellcrank screw |
| 43 |
0339359 |
RING, Pilot |
| 44 |
0323647 |
RING, Ign. plate to support |
| 45 |
0584507 |
STATOR |
| 48 |
0323692 |
WASHER, Thrust |
| 49 |
0319682 |
VIS, capteur vers plaque |
| 51 |
0328074 |
CACHE, cosse prise |
| 52 |
0340868 |
SCREW, Ignition plate |

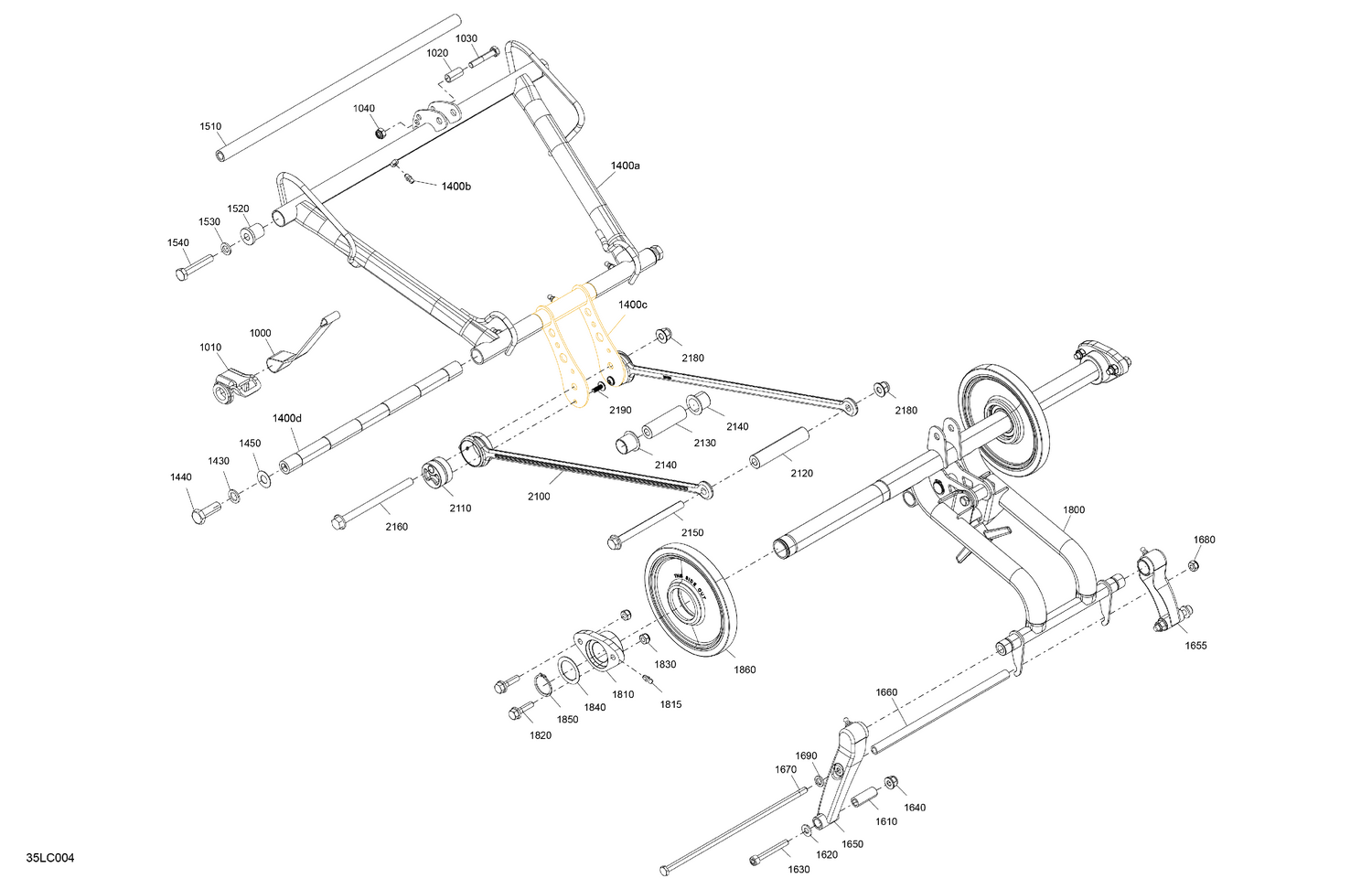

| 1000 |
503195777 |
Strap Stopper |
| 1010 |
503194867 |
Holder, Limiter Strap |
| 1020 |
503195579 |
Sleeve |
| 1030 |
207084544 |
Hex. Screw M8 X 45 |
| 1040 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1400a |
503196291 |
Front Arm |
| 1400b |
408200700 |
Grease Fitting |
| 1400c |
503195780 |
Rocker |
| 1400d |
503194641 |
Lower Shaft |
| 1430 |
503192491 |
Washer |
| 1440 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 1450 |
706200281 |
Hardened Washer |
| 1510 |
503191391 |
Upper Shaft |
| 1520 |
503189324 |
Bushing |
| 1530 |
503191926 |
Washer |
| 1540 |
250000605 |
Hex. Screw S.GRIP M10 X 55 |
| 1610 |
503194726 |
Pivot Arm Axle |
| 1620 |
503192494 |
Washer |
| 1630 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 1640 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1650 |
503195306 |
LH Rear Swing Ass'y |
| 1655 |
503195307 |
RH Rear Swing Ass'y |
| 1660 |
503195343 |
Spacer |
| 1670 |
503195342 |
Bolt M8 |
| 1680 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1690 |
250200111 |
Washer |
| 1800 |
503195310 |
Rear Arm Ass'y |
| 1810 |
503195042 |
Cushion |
| 1815 |
408200700 |
Grease Fitting |
| 1820 |
207683054 |
Hex. Flange Screw M8 X 30 |
| 1830 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1840 |
503195150 |
Shim Ring 30X42X1.0 |
| 1850 |
293370143 |
Circlip |
| 1860 |
503195041 |
Wheel Ass'y 170 MM |
| 2100 |
503195312 |
Link Rod Ass'y |
| 2110 |
503195337 |
Rod Shaft |
| 2120 |
503194457 |
Rod Shaft |
| 2130 |
503195030 |
Front Swing Shaft |
| 2140 |
503195184 |
Bushing |
| 2150 |
230603044 |
Hex. Flanged Screw DIN.6921 |
| 2160 |
230604044 |
Hex. Flanged Screw M10 X 140 |
| 2180 |
233201414 |
Hex. Flanged Elastic Nut M10 |
