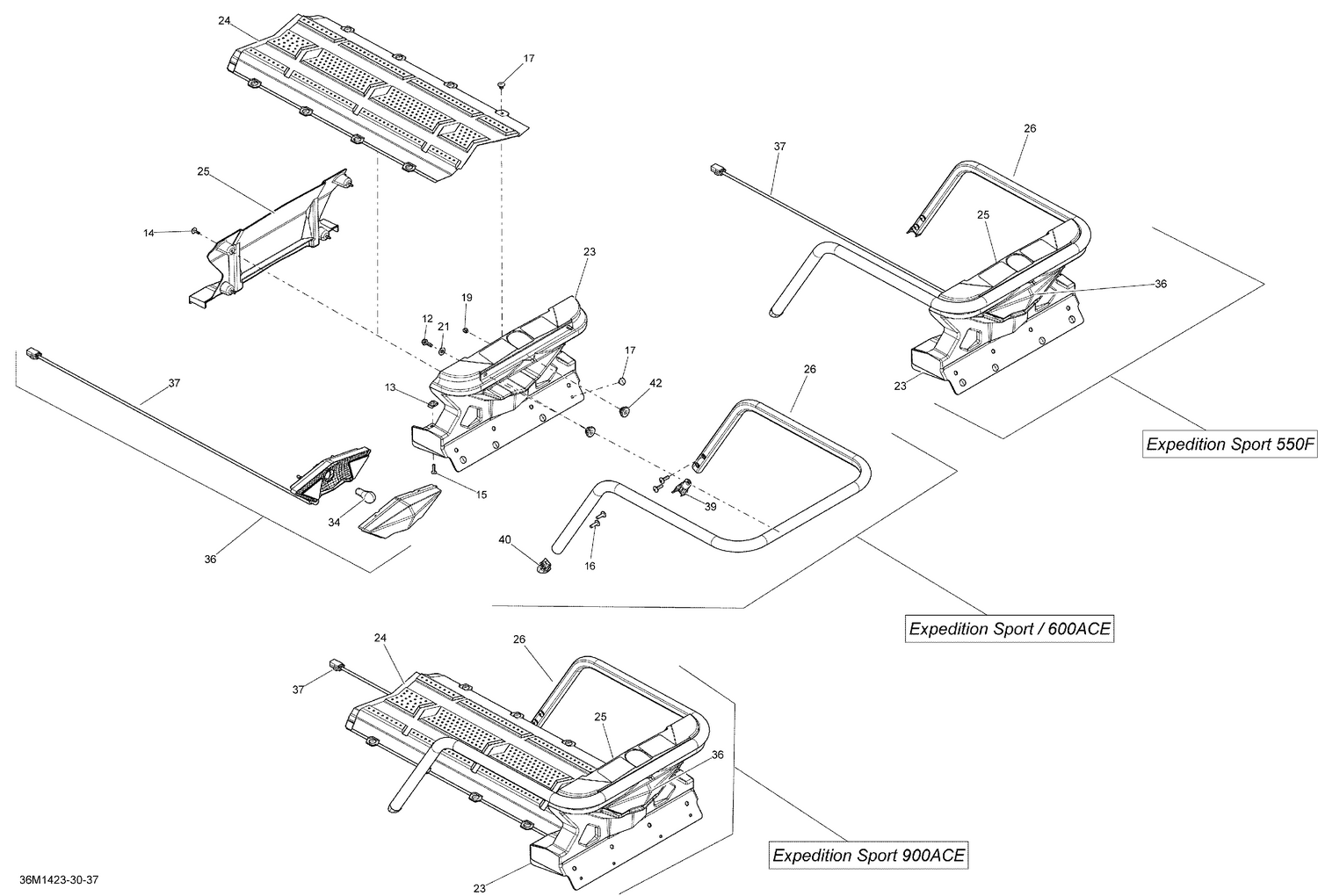

09- Luggage Rack
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 207662044 | Hex. Flange Screw M6 X 20 |
| 13 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 14 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 15 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 16 | 250000786 | Torx Screw M6 X 20, Scotch Grip This part replaces 250000420. |
| 17 | 293150103 | Pop Rivet 3/16" |
| 19 | 293750002 | Tie Wrap 142 mm |
| 21 | 234062410 | Flat Washer 6 mm |
| 23 | 511000625 | Rear Light Support |
| 24 | 511000681 | Radiator Cover, 154'' |
| 25 | 511000701 | Rear Cover Support |
| 26 | 511000705 | Luggage Rack |
| 34 | 520000758 | Bulb |
| 36 | 520000679 | Rear Light Ass'y |
| 37 | 520000680 | WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 39 | 520000985 | RH Cap |
| 40 | 520000986 | LH Cap |
