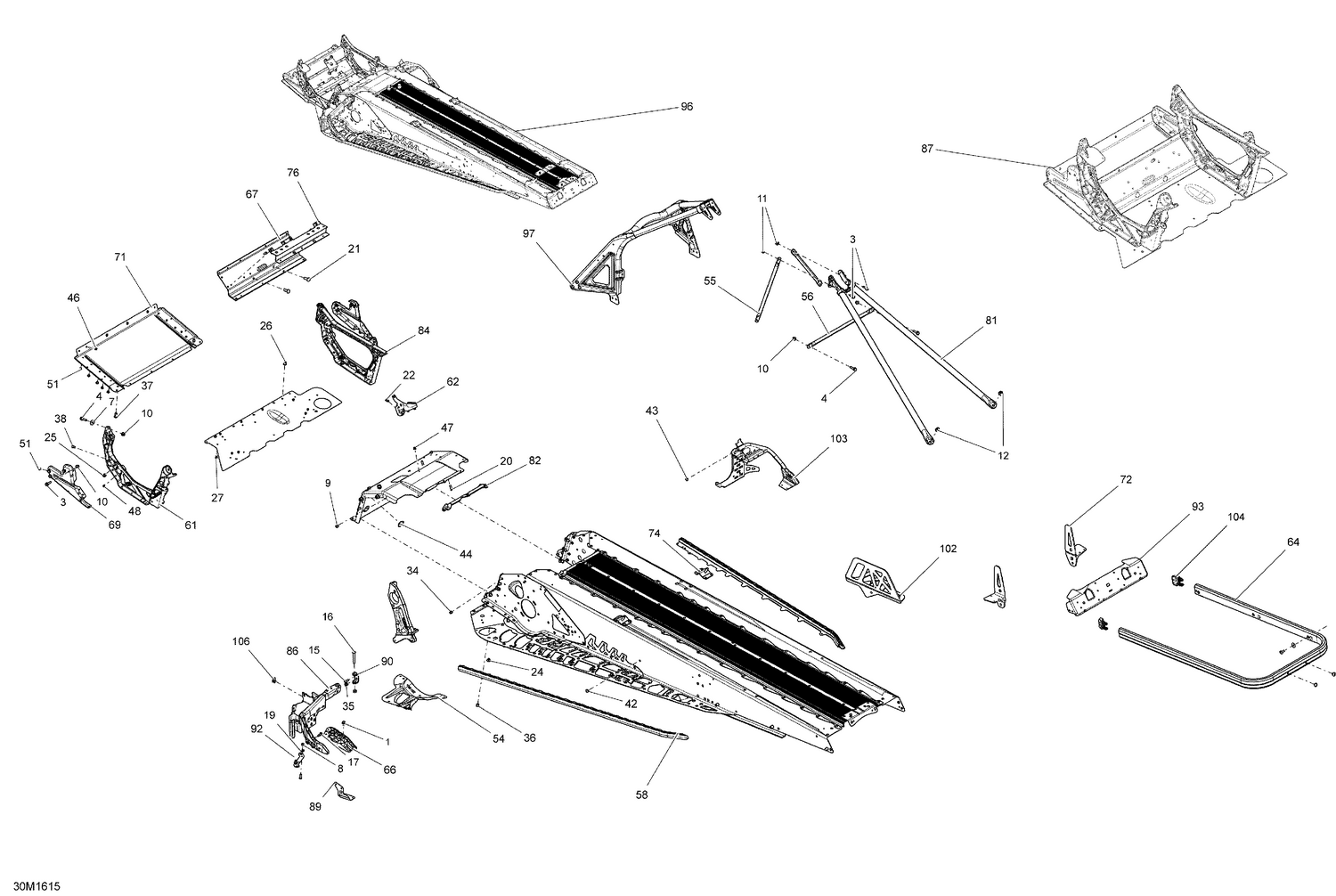

| Ref | Part Number | Description |
|---|
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 3 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 4 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 7 |
224061201 |
Flat Washer |
| 8 |
232561414 |
Elastic Stop Nut M6 |
| 9 |
233061414 |
Hex. Flange Nut M6 |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 12 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 15 |
250000534 |
Tork Screw M6 X 16 |
| 16 |
250000535 |
Torx Screw M8 X 55 |
| 17 |
250000536 |
Tork Screw M6 X 18 |
| 19 |
250200039 |
Flat Washer |
| 20 |
250300027 |
Clinch Stud M6 X 20 |
| 21 |
250300038 |
Clinch Stud |
| 22 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 24 |
293150104 |
Pop Rivet 3/16" |
| 25 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 26 |
293150120 |
Hemlock Rivet 6.5 mm |
| 27 |
293150144 |
Stavex Rivet |
| 34 |
293150146 |
Henrob Rivet |
| 36 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 37 |
293150182 |
Monobolt Rivet 6.4 |
| 38 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 42 |
293730047 |
Black, Dart 8 mm |
| 43 |
293730042 |
Full Moon Dart 5 mm |
| 44 |
293730052 |
Black, Plug |
| 46 |
390402200 |
Pop Rivet 3/16" |
| 47 |
390402400 |
Pop Rivet 3/16" |
| 48 |
390909100 |
Avex Rivet |
| 51 |
390909200 |
Avex Rivet |
| 54 |
518324874 |
RH Reinforcement |
| 54 |
518324875 |
LH Reinforcement |
| 55 |
518325114 |
Upper Lateral Column Support |
| 56 |
518325115 |
Center Column Support |
| 61 |
518325558 |
LH Member |
| 62 |
518325559 |
RH Engine Support |
| 66 |
518325782 |
RH Deflector, Black Polypropylene |
| 66 |
518325783 |
LH Deflector, Black Polypropylene |
| 67 |
518325818 |
Front Member |
| 69 |
518325949 |
RH Front Member |
| 69 |
518325950 |
LH Front Member |
| 71 |
518325951 |
Front Bottom Plate |
| 74 |
518325973 |
RH Rear Base |
| 74 |
518325974 |
LH Rear Base |
| 76 |
518326120 |
ENGINE SUPPORT - Call your local BRP dealership |
| 81 |
518326559 |
Rear Member |
| 82 |
518326656 |
Seal |
| 84 |
518326795 |
RH Member |
| 86 |
518326820 |
LH Stirup |
| 87 |
518326926 |
Module E Tundra |
| 89 |
518326960 |
Support |
| 90 |
518326961 |
U-Attach |
| 92 |
518326986 |
Attach |
| 93 |
518327105 |
Rear Cap |
| 94 |
518328346 |
Pulley Support |
| 97 |
518326557 |
Front Member, S Module |
| 103 |
518328938 |
RH Stirup |
| 104 |
520000711 |
Full Moon RH Cap |
| 104 |
520000712 |
Full Moon LH Cap |
