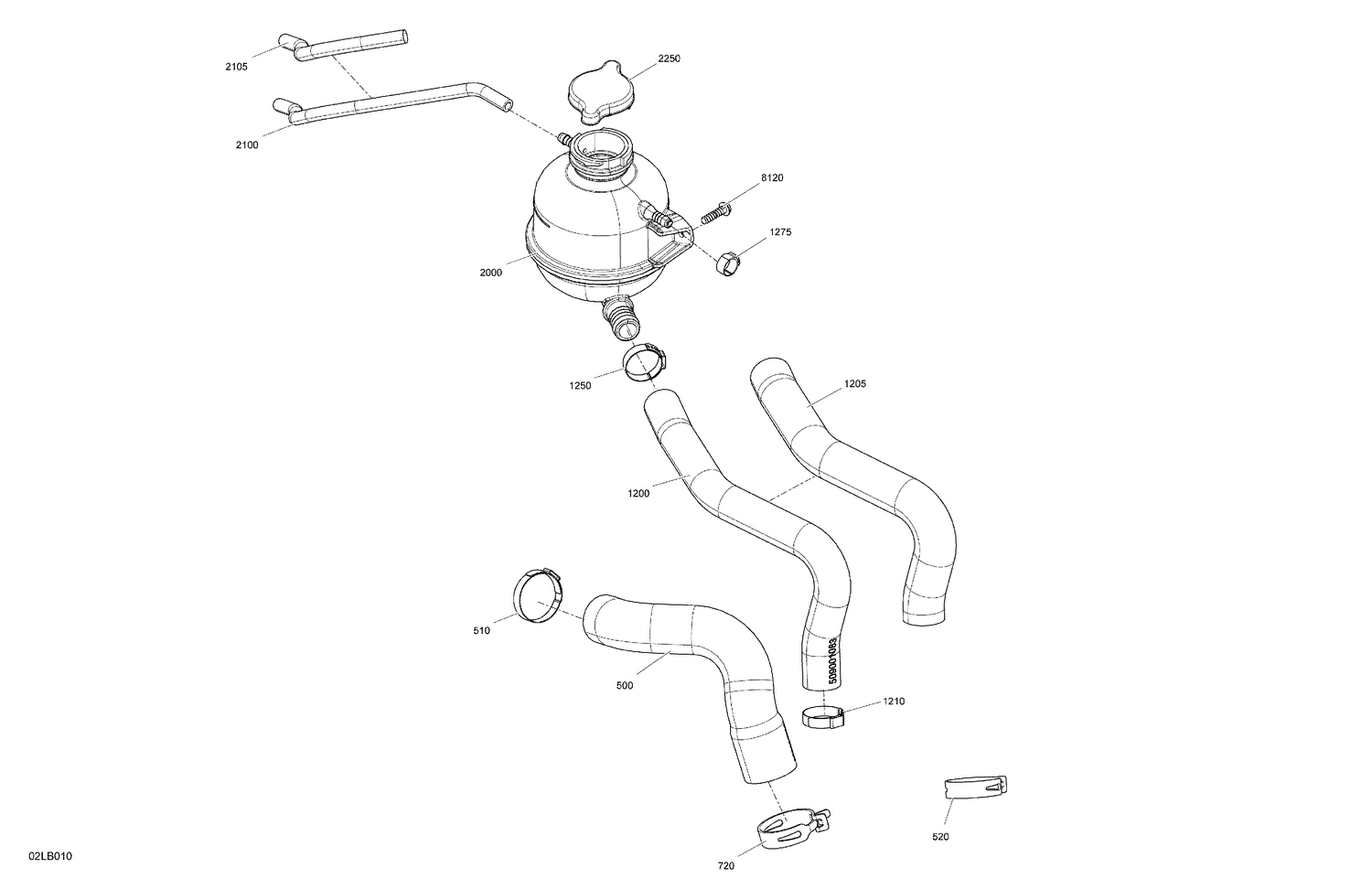

02- Engine - Cooling
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001086 | Engine Outlet Hose |
| 510 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509001083 | Hose Coolant Tank |
| 1205 | 509000513 | Protector Tube 32 mm |
| 1210 | 293650099 | Crimp Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 2000 | 509001011 | Cooling Tank |
| 2100 | 415110000 | Polyurethane Hose 5.2 mm |
| 2105 | 503195447 | Protector Tube |
| 2250 | 509000180 | Radiator Pressure Cap |
