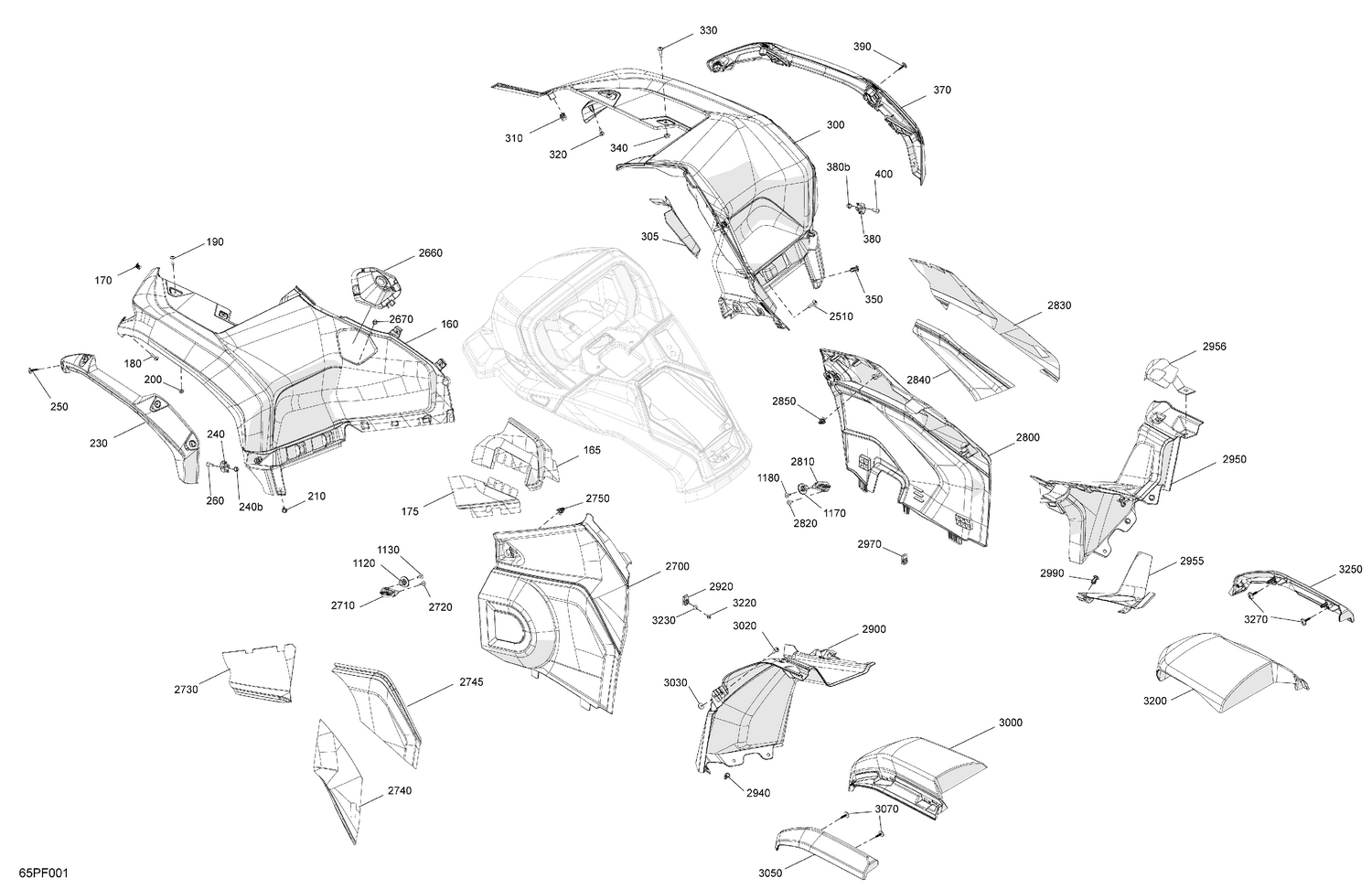

07- Body - Fender Kit
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 165 | 705019212 | LH Front Heat Shield |
| 170 | 517302785 | Edge Clip |
| 175 | 705019312 | Heat Shield |
| 180 | 250000720 | Torx Screw K50 X 16 |
| 190 | 250001000 | Torx-Truss M/S M6 X 25 |
| 200 | 233161414 | Hex. Flange Nut M6 |
| 210 | 293150230 | Tuflok Plastic Rivet |
| 230 | 705014662 | Deep Black, LH Front Fender Trim |
| 240b | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 250 | 250000907 | Torx Screw Truss Head PT.K50 X 25 |
| 260 | 250000722 | Torx Screw M6 X 20 |
| 305 | 705019385 | RH Front Heat Shield |
| 310 | 517302785 | Edge Clip |
| 320 | 250000720 | Torx Screw K50 X 16 |
| 330 | 250001000 | Torx-Truss M/S M6 X 25 |
| 340 | 233161414 | Hex. Flange Nut M6 |
| 350 | 293150230 | Tuflok Plastic Rivet |
| 370 | 705014663 | Deep Black, RH Front Fender Trim |
| 380b | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 390 | 250000907 | Torx Screw Truss Head PT.K50 X 25 |
| 400 | 250000722 | Torx Screw M6 X 20 |
| 1120 | 517305985 | Rear Stud |
| 1130 | 250000725 | Screw M4 X 16 |
| 1170 | 517305985 | Rear Stud |
| 1180 | 250000725 | Screw M4 X 16 |
| 2510 | 250000722 | Torx Screw M6 X 20 |
| 2660 | 705014661 | Switch Support |
| 2670 | 250100163 | Pressure Nut |
| 2700 | 705015792 | LH Central Panel |
| 2710 | 517305774 | LH Rear Latch |
| 2720 | 250000725 | Screw M4 X 16 |
| 2730 | 705018927 | LH Front Heat Shield |
| 2740 | 705019071 | LH Rear Heat Shield |
| 2745 | 705019156 | LH Lower Heat Shield |
| 2750 | 517306478 | Clip |
| 2800 | 705015793 | RH Central Panel |
| 2810 | 517305773 | RH Rear Latch |
| 2820 | 250000725 | Screw M4 X 16 |
| 2830 | 705018928 | RH Upper Heat Shield |
| 2840 | 705019072 | RH Lower Heat Shield |
| 2850 | 517306478 | Clip |
| 2900 | 715011207 | LH Rear Fender Support Kit |
| 2920 | 250100198 | Panel Nut M6 X 1.0 |
| 2940 | 293150230 | Tuflok Plastic Rivet |
| 2950 | 705014734 | RH Rear Fender Support |
| 2955 | 705018605 | Heat Shield |
| 2956 | 705018563 | Heat Shield |
| 2970 | 250100198 | Panel Nut M6 X 1.0 |
| 2990 | 293150230 | Tuflok Plastic Rivet |
| 3020 | 250001257 | Screw Torx M6 X 20 |
| 3030 | 234062410 | Flat Washer 6 mm |
| 3050 | 705018512 | Deep Black, LH Rear Fender Trim |
| 3070 | 250000907 | Torx Screw Truss Head PT.K50 X 25 |
| 3220 | 250001257 | Screw Torx M6 X 20 |
| 3230 | 234062410 | Flat Washer 6 mm |
| 3250 | 705018514 | Deep Black, RH Rear Fender Trim |
