Home / BRP / STERN DRIVE / 1983 / 3.80 / 382FTMRCTR 1983 / CRANKCASE GROUP

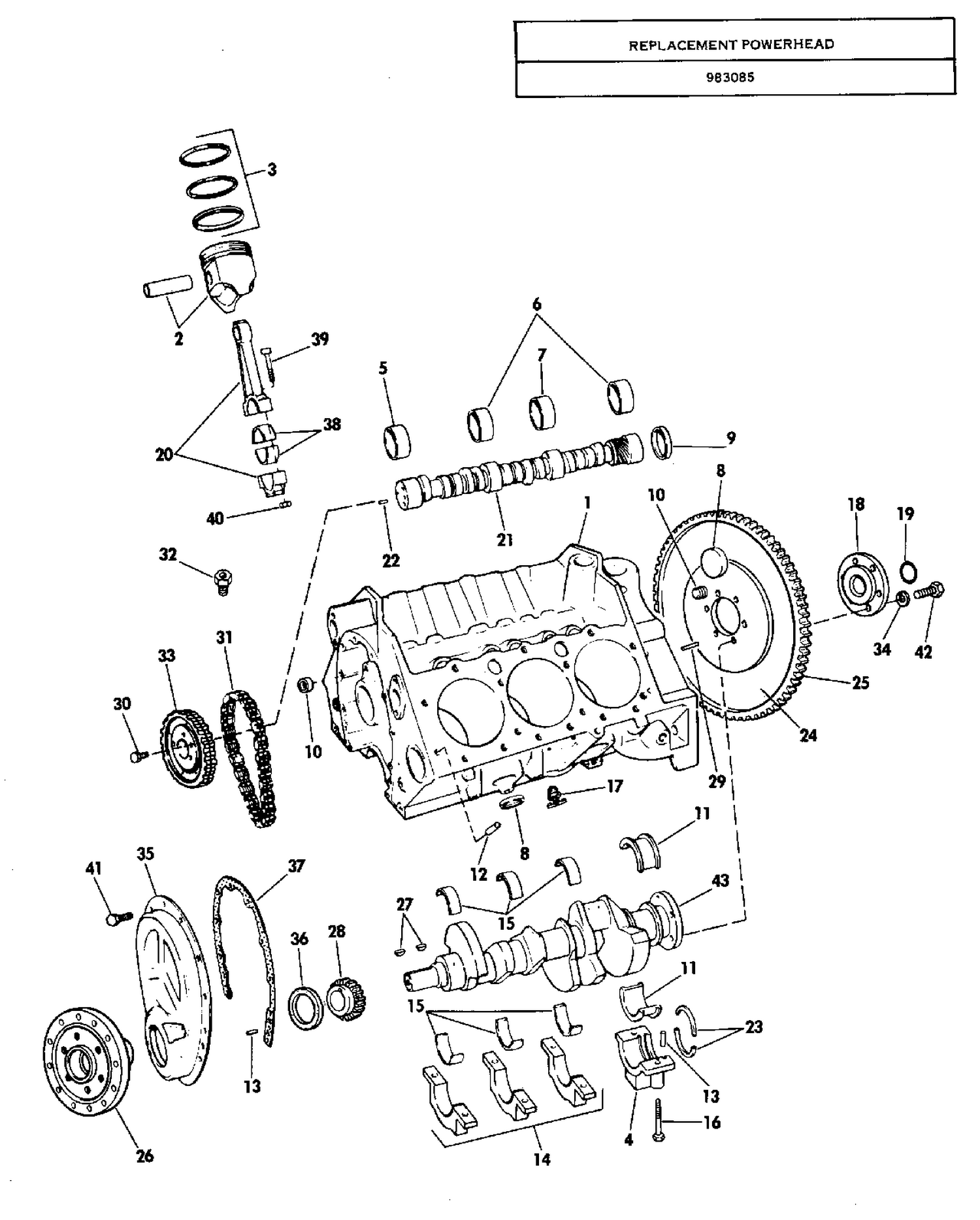

CRANKCASE GROUP

CRANKCASE GROUP

Parts (64)

RefPart NumberDescription
1 14019895 CRANKCASE ASSY
2 14019883 PISTON & PIN ASSY, Std
2 14019884 PISTON & PIN ASSY, .001 O.S.
2 14019885 PISTON & PIN ASSY, .030" o.s
3 0370409 PISTON RIGN SET, Std
3 0370419 PISTON RING SET, .020 0s
4 3911007 CAP, Camshaft brg, rear
5 0474005 BEARING, Camshaft #1
6 0474006 BEARING, Camshaft, #2, #4
7 0474007 BEARING, Camshaft, #3
8 0311376 CORE PLUG, Side
9 3997752 PLUG, Camshaft bearing, rear
10 0444776 PLUG, Oil gallery,
11 3912030 BEARING ASSY - REAR, Std
11 3912032 BEARING ASSY - REAR, .001" U.S.
11 3912033 BEARING ASSY - REAR, .002" U.S.
11 3912035 BEARING ASSY - REAR, .010" U.S.
11 3912036 BEARING ASSY - REAR, .020" U.S.
12 0585927 DOWEL PIN
13 3836903 PILOT PIN, Cam shaft gear
14 3956688 CAP, Crankshaft bearing
15 0462661 BEARING ASSY, Upper #1, std
15 0462664 BEARING ASSY, Lower #1, std
15 0462673 BEARING ASSY, Upper #1, .001" U.S.
15 0462674 BEARING ASSY, Upper #1, .002" U.S.
15 0462677 BEARING ASSY, Lower #1, .001" U.S.
15 0462678 BEARING ASSY, Lower #1, .002" U.S.
15 0464047 BEARING ASSY, #1, .010" U.S.
15 0464048 BEARING ASSY, #1, .020" U.S.
15 3912038 BEARING ASSY, #2 #3, #4, std.
15 3912039 BEARING ASSY, #2, #3, #4, .001" u.s
15 3912040 BEARAING ASSY.-FRONT & INTERMEDIATE,.002"us
15 3912041 BEARING ASSY -EXC REAR, .010'' u.s.
15 3912042 BEARING ASSY 0EXC REAR, .020'' u.s.
17 0379957 PETCHOCK ASSY, Water drain
18 0980994 COUPLING & O-RING ASSY
19 0909567 O-RING
20 14053831 CONNECTING ROD ASSY
21 6269733 CAMSHAFT ASSY
22 3836903 PILOT PIN, Cam shaft gear
23 0473424 OIL SEAL SET, Crankshaft rear baering
24 0366860 FLYWHEEL
25 3991407 GEAR, Flywheel
26 14095055 DAMPER ASSY
27 0160751 KEY,Wdf,3/16"x3/4"
28 0464617 SPROCKET, Crankshaft
29 3712745 DOWEL PIN
30 0443899 BOLT, Camshaft sprocket
31 0346261 CHAIN, Camshaft timing
32 3852489 ADAPTER, Water drain, stbd. This part replaces 0910180.
33 0340235 SPROCKET, Camshaft
34 0136857 L'WASHER,Flywheel
35 14050642 COVER, C'case front end
36 14033199 SEAL
37 3799620 GASKET, Front cover
38 0474095 BEAREING, Rod, .001" u.s
38 0474096 BEARING, Rod, .001" U.S.
38 0474097 BEARING, Rod, .002" U.S.
38 0474098 BEARING, Rod, .010 U.S
38 0474099 BEARING, Rod, .020 U.S
39 0461372 BOLT, Connecting rod
40 3866766 NUT, Conn rod, 11/32-24
41 3817006 BOLT, Camshaft sprocket
42 0908375 BOLT, Flywheel
