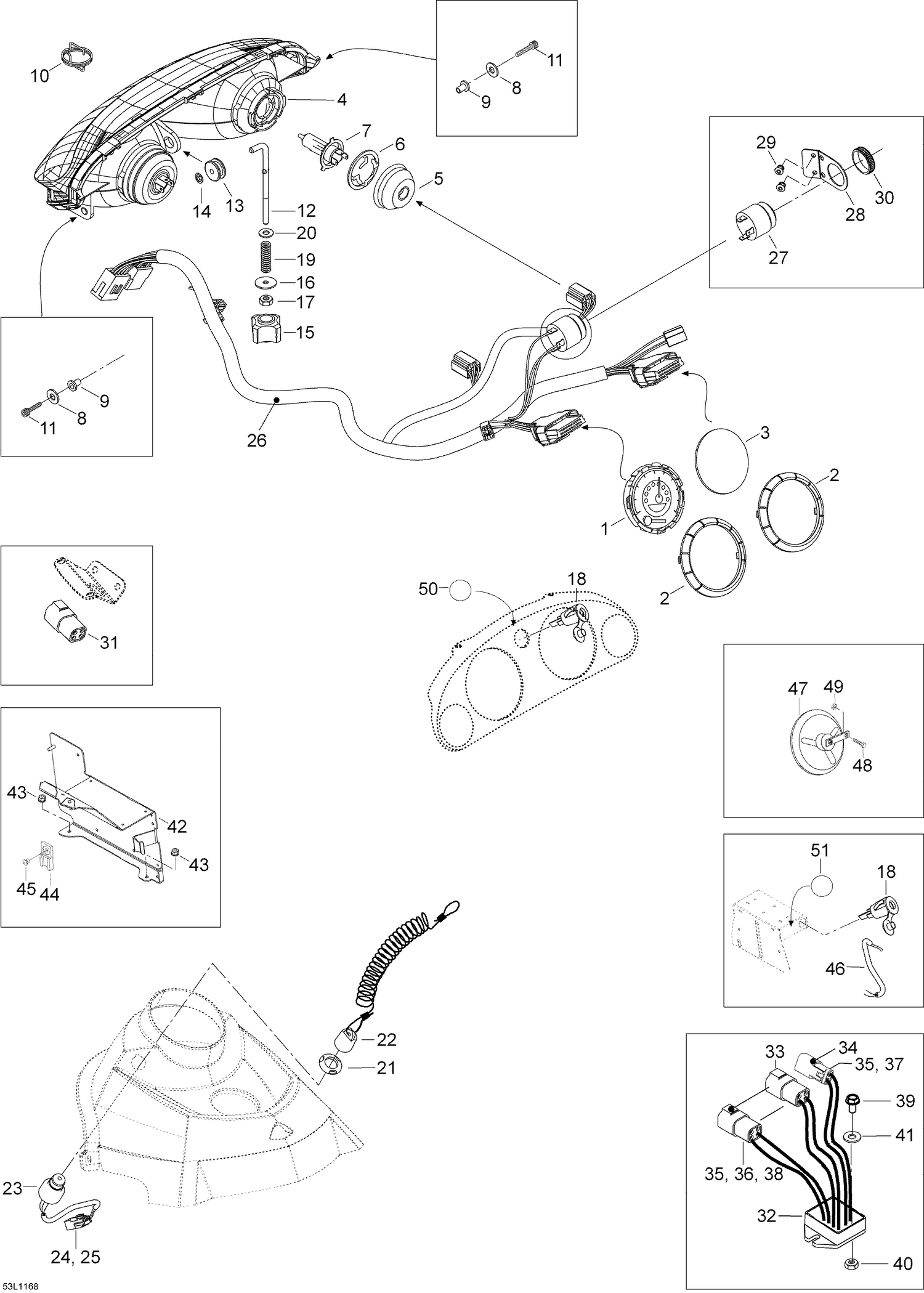

| Ref | Part Number | Description |
|---|
| 1 |
515176477 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
515175901 |
GAUGE HOLE COVER - Call your local BRP dealership |
| 5 |
515175911 |
COVER - Call your local BRP dealership |
| 6 |
515176385 |
BULB HOLDER - Call your local BRP dealership |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V |
| 8 |
20008 |
Washer 5,3 mm |
| 9 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 10 |
5447238 |
Spring |
| 11 |
40235 |
Hex. screw M5 x 35 |
| 12 |
605450023 |
ADJUSTER ROD - Call your local BRP dealership |
| 13 |
415100800 |
Grommet - Call your local BRP dealership |
| 14 |
36084 |
Nut Push |
| 15 |
515175548 |
Handle - Call your local BRP dealership |
| 16 |
20038 |
Washer |
| 17 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 18 |
605352915 |
Power outlet kit (Revo) |
| 19 |
415100600 |
SPRING - Call your local BRP dealership |
| 20 |
20003 |
Washer A6,4 |
| 21 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 22 |
515178284 |
Dess. This part replaces 515177057. |
| 24 |
515175232 |
Male Terminal |
| 25 |
515175494 |
Male Housing, 3 Circuits |
| 26 |
605355923 |
HARNESS ASS'Y - Call your local BRP dealership |
| 27 |
515176035 |
HORN - Call your local BRP dealership |
| 28 |
5447941 |
HORN SUPPORT - Call your local BRP dealership |
| 29 |
36005 |
Rivet |
| 30 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 31 |
605355837 |
CAPACITOR - Call your local BRP dealership |
| 33 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 34 |
278001674 |
Mâle Terminal Housing, 2 Circuits |
| 35 |
515175568 |
Male Terminal |
| 36 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 37 |
278001672 |
Male Lock, 2 Circuits |
| 38 |
293000052 |
Sealing Cap |
| 39 |
40030 |
Screw M6 x 20 |
| 40 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 41 |
234062410 |
Flat Washer 6 mm |
| 42 |
605353300 |
DEVICE PLATE - Call your local BRP dealership |
| 43 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 44 |
270000141 |
Clip This part replaces 515175917. |
| 45 |
36005 |
Rivet |
| 46 |
605354674 |
Power Outlet Harness |
| 47 |
42016 |
Horn ass'y |
| 48 |
40029 |
Hex. Screw M6 x 16 |
| 49 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 50 |
605456007 |
Instruction label (power outlet front) |
