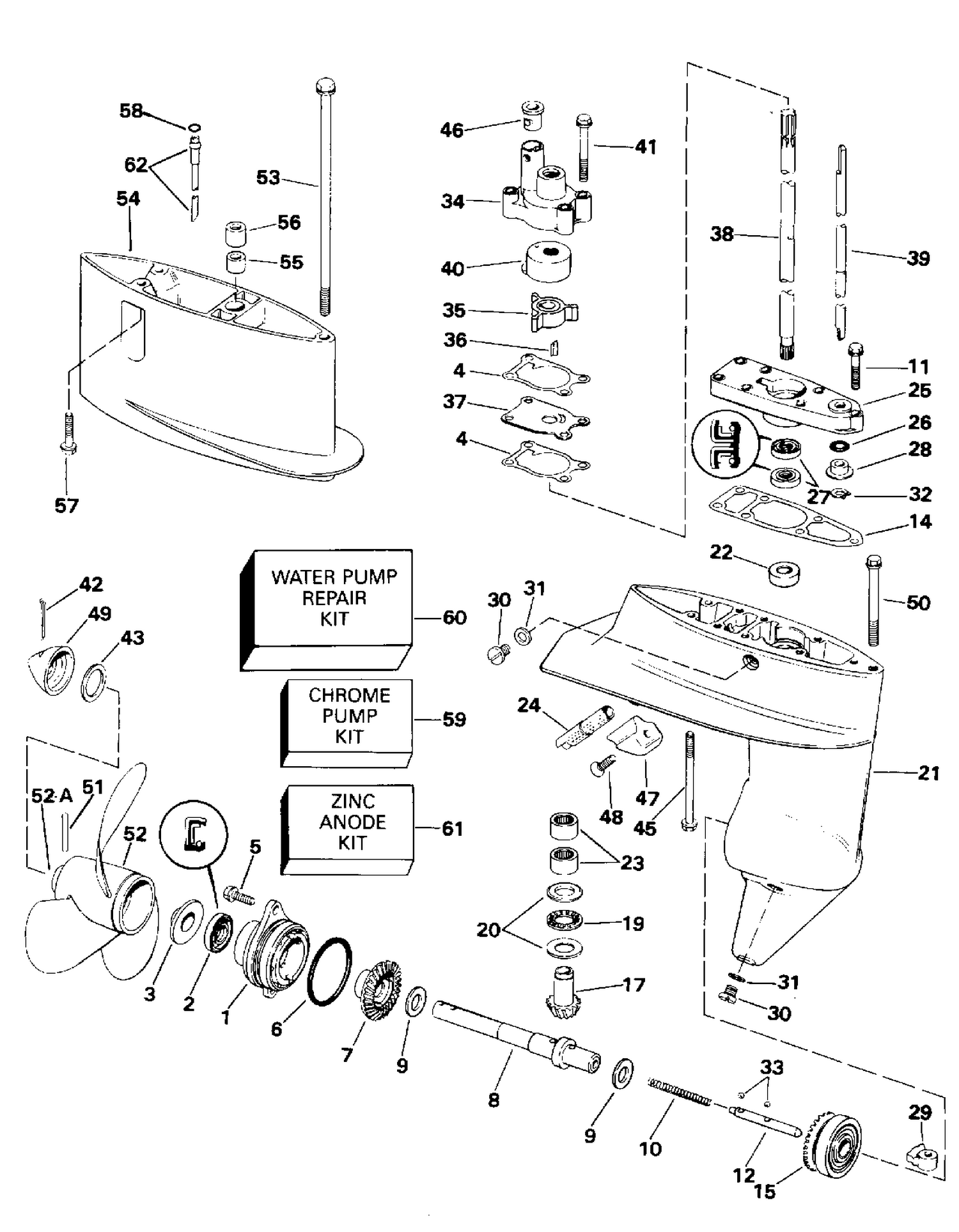

| Ref | Part Number | Description |
|---|
| 7 |
0397699 |
GEAR & BUSHING ASSY., Reverse |
| 8 |
0435407 |
PROPELLER SHAFT |
| 10 |
0343272 |
SPRING, Shifter This part replaces 0332656. |
| 12 |
0332655 |
SHIFTER |
| 15 |
0432144 |
GEAR & BEARING ASSY., Forward |
| 26 |
0305242 |
O RING |
| 29 |
0332654 |
CAM, Shift |
| 33 |
0332658 |
BALL, Drive |
| 34 |
0389577 |
IMPELLER HOUSING ASSY. |
| 37 |
0324640 |
PLAT, Impeller housing |
| 38 |
0341208 |
DRIVESHAFT, Standard This part replaces 0337011. |
| 38 |
0341209 |
DRIVESHAFT, Long This part replaces 0337012. |
| 39 |
0324620 |
SHIFT ROD, Lower, std (except srl) |
| 39 |
0324621 |
SHIFT ROD, Long |
| 41 |
0331980 |
SCREW, Bracket, port |
| 43 |
0324689 |
SPACER |
| 47 |
0432397 |
ANODE KIT This part replaces 0334451. |
| 49 |
0324694 |
CAP, Propeller shaft |
| 50 |
0342540 |
SCREW, Exhaust housing to ext. This part replaces 0316440. |
| 51 |
0324690 |
DRIVE PIN |
| 52 |
0175092 |
PROPELLER - 8 5/8 X 5 1/2 |
| 52 |
0391096 |
PROPELLER |
| 59 |
0390772 |
CHROME PUMP KIT |
| 60 |
0436737 |
WATER PUMP REPAIR KIT |
| 62 |
0338970 |
WATER TUBE EXTENSION |
