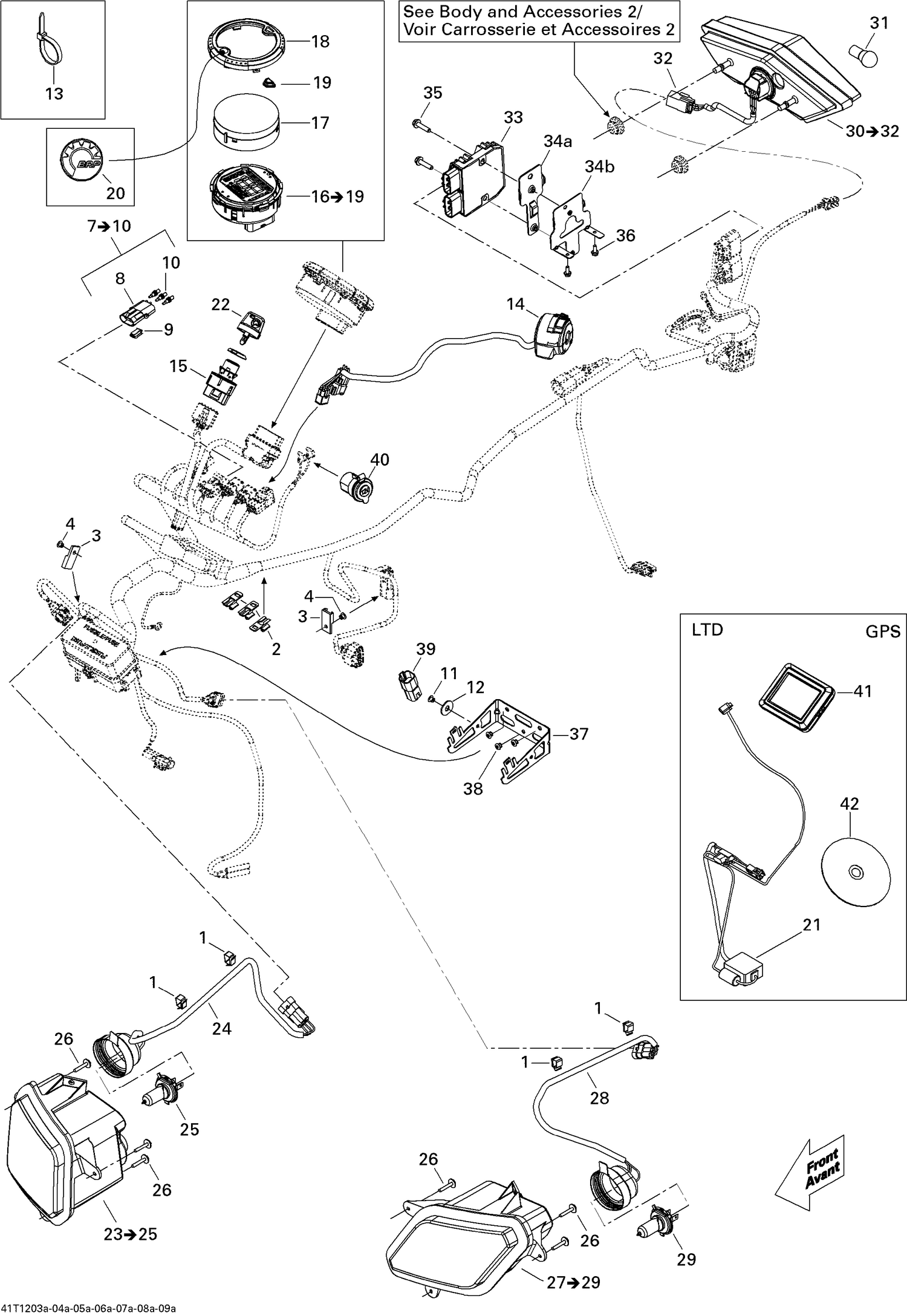

10- Electrical Accessories 1
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414227300 | Clip |
| 2 | 515175283 | Housing Support |
| 3 | 270000141 | Clip |
| 4 | 390402400 | Pop Rivet 3/16" |
| 8 | 278000281 | Female Terminal Housing, 3 Circuits |
| 9 | 710000992 | Clip |
| 10 | 278000216 | Wire Seal |
| 11 | 390402300 | Pop Rivet 3/16" |
| 12 | 517124300 | Washer |
| 13 | 293750001 | Tie Wrap 94 mm |
| 13 | 293750008 | Tie Wrap 368 mm |
| 13 | 293750009 | Tie-Rap 173 mm |
| 13 | 293750041 | Tie-rap 627 mm |
| 13 | 414115200 | Tie-Rap 180 mm |
| 15 | 710002324 | Ignition Switch |
| 17 | 415129320 | Lens |
| 18 | 710001416 | Trim Ring |
| 19 | 710001473 | Button |
| 20 | 704904615 | BRP Logo13 mm This part replaces 704901270. |
| 22 | 710000817 | Black, Electronic Key |
| 24 | 710000923 | Headlamp Harness |
| 25 | 710000871 | Bulb, 12V 35/35W |
| 26 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 28 | 710000923 | Headlamp Harness |
| 29 | 710000871 | Bulb, 12V 35/35W |
| 31 | 520000758 | Bulb This part replaces 410504100. |
| 32 | 515175494 | Male Housing, 3 Circuits |
| 35 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 37 | 710002176 | FUSE SUPPORT - Call your local BRP dealership |
| 38 | 390402400 | Pop Rivet 3/16" |
| 39 | 278002704 | Diagnostic Connector This part replaces 278002148. |
| 40 | 710001248 | DC Outlet |
