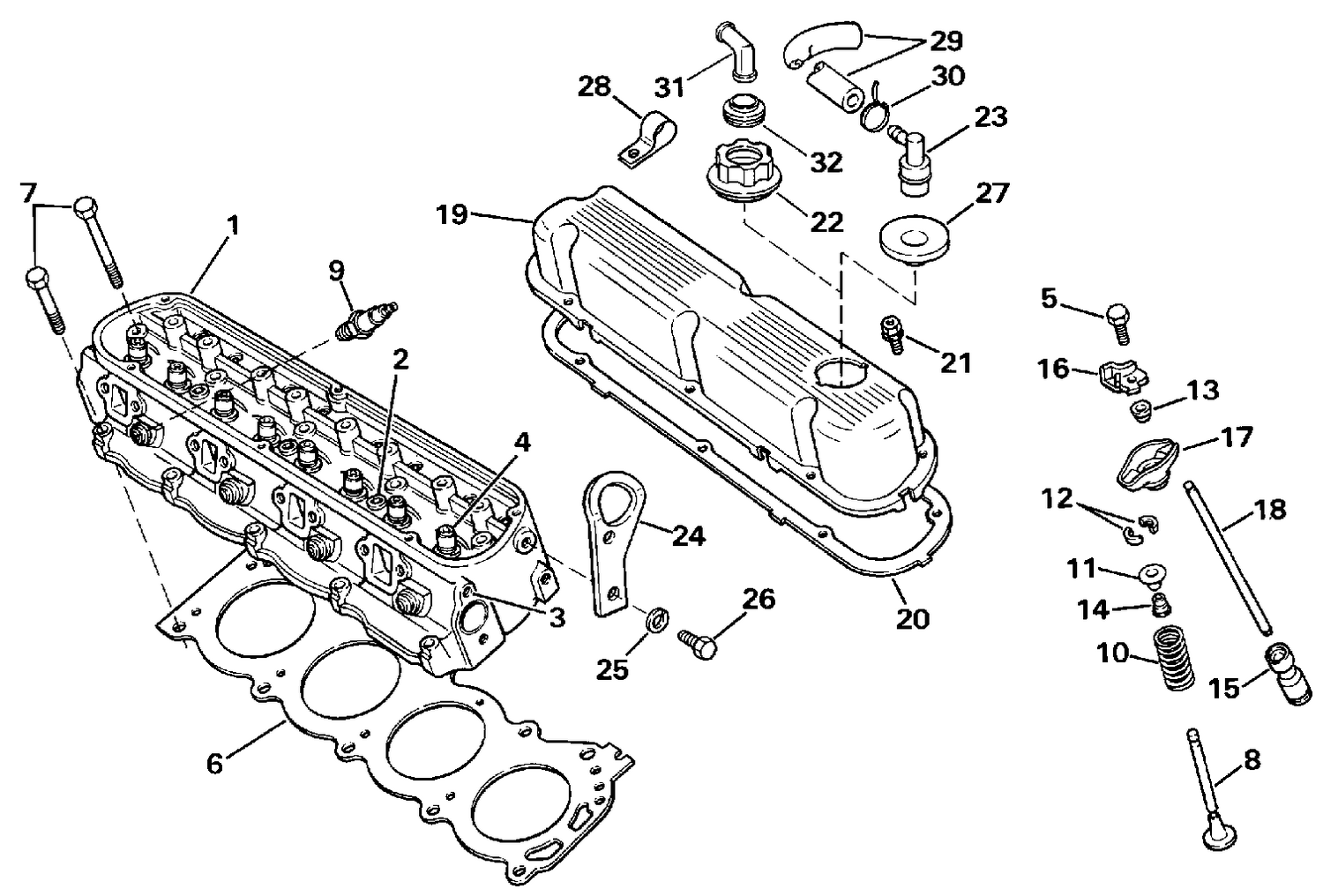

| Ref | Part Number | Description |
|---|
| 1 |
0985104 |
CYLINDER HEAD |
| 2 |
3853015 |
PLUG, Core hole This part replaces 0914141. |
| 3 |
0914089 |
PLUG, Thermactor hole |
| 4 |
0914090 |
BUSHING, Valve guide |
| 5 |
0913162 |
BOLT, Rocker arm |
| 6 |
0912766 |
GASKET, Cylinder head |
| 7 |
0913190 |
BOLT, Cylinder 4 3/8" |
| 7 |
0913191 |
BOLT, Cylinder head, 5 1/8 |
| 8 |
0913166 |
VALVE, Intake, standard |
| 8 |
0914794 |
VALVE, Exhaust, standard |
| 9 |
0912937 |
SPARK PLUG, RV12YC |
| 10 |
0913165 |
SPRING, Valve |
| 11 |
0913164 |
RETAINER, Valve spring |
| 12 |
3852672 |
KEY, Valve spring retainer This part replaces 0913163. |
| 13 |
3852671 |
SEAT, Rocker arm This part replaces 0913161. |
| 14 |
0914792 |
SEAL, Valve stem, intake |
| 14 |
0914793 |
SEAL, Valve stem, exhaust |
| 15 |
3853847 |
TAPPET This part replaces 0985316. |
| 16 |
0985320 |
BAFFLE, Rocker arm oil |
| 17 |
0913159 |
ROCKER ARM |
| 18 |
0913158 |
PUSH ROD, Standard |
| 18 |
0914123 |
PUSH ROD, .060 O.S. |
| 18 |
0914124 |
PUSH ROD, .060 U.S. |
| 19 |
0984886 |
VALVE COVER |
| 20 |
0912768 |
GASKET, Valve cover This part replaces 0914791. |
| 21 |
3853037 |
SCREW, Valve cover This part replaces 0914167. |
| 22 |
0986856 |
CAP, Valve cover, port |
| 23 |
0913183 |
PCV VALVE |
| 24 |
0311111 |
LIFT BRACKET |
| 25 |
0120177 |
L'WASHER, Alternator to brkt |
| 26 |
0306539 |
BOLT, Distributor |
| 27 |
0912935 |
GROMMET, P.C.V.valve |
| 28 |
0330151 |
CLAMP, Harness to oil tank boss |
| 28 |
0913307 |
CLAMP, Front, starboard |
| 29 |
HOSE, |
Crankcase vent |
| 30 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 31 |
0914952 |
ELBOW, Oil fill cap |
| 32 |
0914951 |
GROMMET, Oil fill cap |
